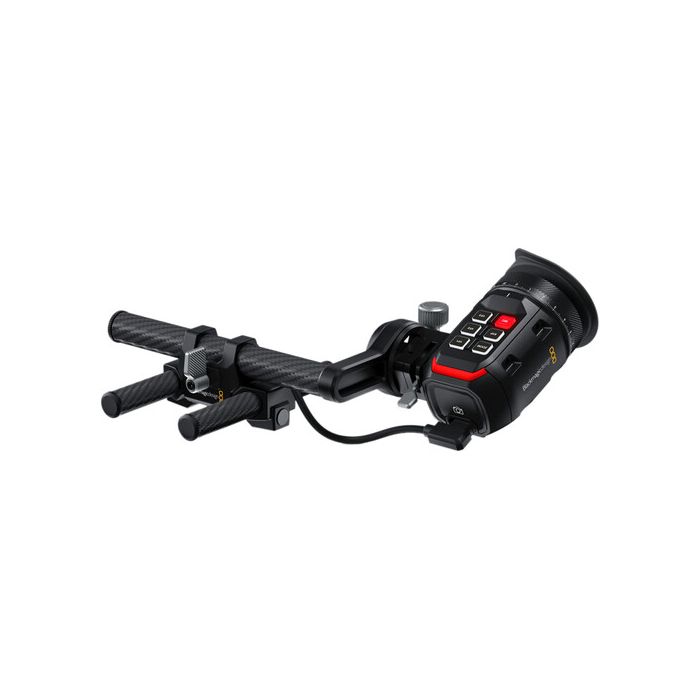

Blackmagic Design URSA Cine EVF
by Blackmagic DesignHigh quality viewfinder with full HD OLED display, precision glass optics, adjustable diopter and function buttons. Quick set up with versatile mounting and single USB-C cable for power and video.
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Blackmagic Design URSA Cine EVF
- Rotating Bracket
- Carbon Fiber Rod (19mm)
- 2 x Carbon Fiber Rod (15mm)
- Extension
- Right-Angle to Right-Angle USB Viewfinder Cable (Short)
- Right-Angle to Straight USB Viewfinder Cable (Short)
- Right-Angle to Straight USB Viewfinder Cable (Long)
- 2 x Rubber Eyecup
- Fabric Cloth
- Sticker
Add the high-resolution URSA Cine EVF to your Blackmagic Design URSA Cine 12K or PYXIS 6K camera for crisp, clear images, making shooting easy in any environment. The EVF features a 1920 x 1080 color OLED display supporting up to 60 fps to view your image with status information, frame guides, and even a built-in focus chart to help you achieve the sharpest focus. It mounts on top of your camera using the included bracket assembly, which includes a 15mm rod clamp, a 19mm cross rod, and two carbon fiber 15mm rods. A tally light allows you to clearly see when the camera is rolling.
- For URSA Cine 12K Cinema Camera
- Also Works with PYXIS 6K Cameras
- 1920 x 1080p60 Resolution OLED Display
- USB-C Connection to Camera
- Zoom, Exposure, Record Buttons
- Rotating Bracket, Tally LED
- +5/-5 Diopter, 15mm Rod Clamp
- 19 & 15mm Carbon Fiber Rods
The built-in proximity sensor switches on the EVF only when it's in use to save power, and it features a 4-element glass diopter that provides a range of adjustments. The EVF connects to the URSA Cine 12K or PYXIS 6K using a USB-C cable, which is also used for firmware updates. Also included are two different rubber eyecups to give you options for comfort and size.
NOTE: The Blackmagic URSA Cine Handle is required for mounting the EVF onto Blackmagic URSA Cine 12K and Blackmagic PYXIS 6K cameras.
Compatibility
- Blackmagic URSA Cine 12K LF cameras
- Blackmagic PYXIS 6K cameras
- Blackmagic URSA Cine Handle
- The included Blackmagic URSA Cine EVF Extension is compatible with standard extended viewfinder supports
Display | |
Color/Monochrome | Color |
Panel Type | OLED |
Screen Resolution | 1920 x 1080 |
Aspect Ratio | 16:9 |
Touchscreen | No |
Bit Depth / Color Support | 6-Bit+FRC (16.2 Million Colors) |
Inputs / Outputs | |
Video I/O | 1x USB-C 3.0 / 3.1/3.2 Gen 1 Input |
Video Format | USB |
DCI 4K: 60 | |
Optics | |
Diopter Correction | -5.0 to +5.0 |
Environmental | |
Operating Humidity | 0 to 90% |
Operating Temperature | 32 to 104°F / 0 to 40°C |
Storage Humidity | 0 to 90% |
Storage Temperature | -4 to 140°F / -20 to 60°C |
General | |
Mounting | 1x Accessory Rail |
