Blackmagic Design UpDownCross 100G

Availability: 7-10 days delivery

SKU

CONVNVIPJ/STG/100G

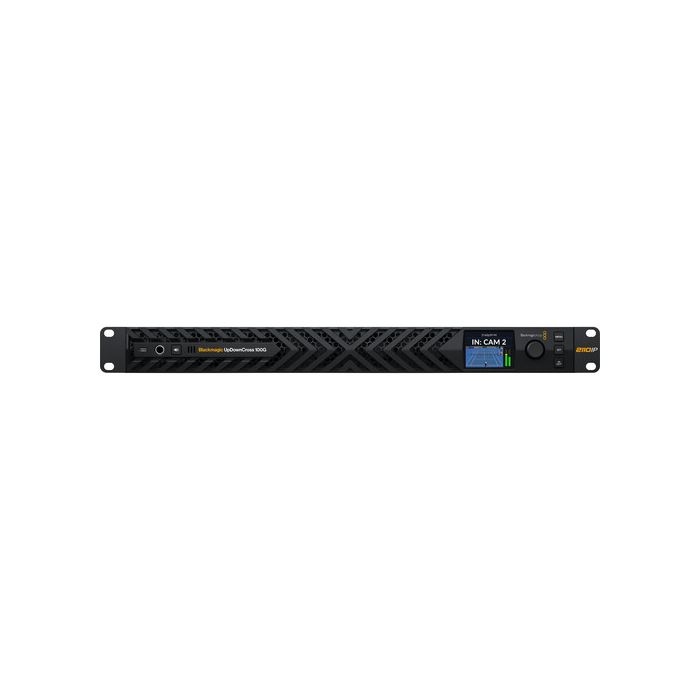

The Blackmagic Design UpDownCross 100G is a 1 RU IP video standard converter designed for 100G broadcast infrastructures. Supporting up to eight channels of SMPTE 2110 video at SD, HD, and Ultra HD resolutions, the unit simultaneously converts IP video streams into any other video standard via dual 100GbE QSFP28 interfaces with SMPTE 2022-7 redundancy for uninterrupted signal delivery.

€2,748.75 €2,199.00

Installment Payment   You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
International Purchasing   The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.

New

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Package includes

Blackmagic Design UpDownCross 100G

Details

Engineered for deployment in live production and broadcast environments, the UpDownCross 100G sports a front-panel 2.2" LCD with an integrated control knob and buttons, allowing real-time monitoring of video, audio, and system status. A built-in speaker and headphone output provide immediate audio confidence monitoring. External control is supported via a dedicated RJ45 for NMOS-based configuration and USB-C for setup and firmware updates, with dual IEC power inputs ensuring power redundancy for reliable performance.

IP Video Conversion

Converts eight channels of IP video from SD, HD, or Ultra HD to any other standard
Two 100GbE QSFP28 interfaces with full SMPTE 2022-7 redundancy support
Supports SMPTE 2110-20, 2110-21, 2110-30, and 2110-40 IP video
10-bit 4:2:2 video with Rec. 709 and Rec. 2020 color space support
16 channels of embedded audio per IP video stream

Convenient Design

2.2" front-panel LCD for video, audio, timecode, and system monitoring
Integrated control knob and buttons for source selection and configuration
Built-in speaker and headphone output for audio monitoring
Dedicated RJ45 port for NMOS control, configuration, and updates
USB-C interface for firmware updates and local configuration
Dual IEC C14 AC inputs for redundant power delivery

More Information

Inputs/Outputs
Video I/O	Input/Output
	2x QSFP28 100G Ethernet
Expansion Slots	No
Format Support
Video Resolution	Fiber Input/Output (10-Bit 4:2:2 YUV)
	3840 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
	1920 x 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
	1920 x 1080PsF at 25/29.97/30 fps
	1920 x 1080i at 50/59.94/60 fps
	1280 x 720 at 50/59.94/60 fps
Audio Format	Unspecified Digital Signal Input/Output: 48 kHz / 24-Bit
Embedded Audio	IP: 16-Channel
Reclocking	No
Standards
Video Standard Compliance	SMPTE: ST 2110-20/ST 2110-21/ST-2022-7/ST-2110
HDR Support	Yes
HDMI CEC	No
Broadcast System Compatibility	NTSC, PAL
Hardware
Wireless	No
OS Compatibility	macOS 26.0 or Later
	Windows 11 or Later
Display
Display	2.2" LCD
Power
Power I/O	2x IEC C14 Input
PoE Support	No
Power Consumption	100 to 240 VAC
General
Operating Conditions	32 to 104°F / 0 to 40°C up to 90% Humidity
Storage Conditions	-4 to 113°F / -20 to 45°C up to 90% Humidity
Rack Form Factor	1 RU
Certifications	IEEE 1588-2008, SMPTE 2110‑20, SMPTE 2110‑21, SMPTE 2110‑30, SMPTE 2110‑40, SMPTE 2022-7
Dimensions	19 x 8.6 x 1.7" / 48.3 x 21.8 x 4.3 cm
