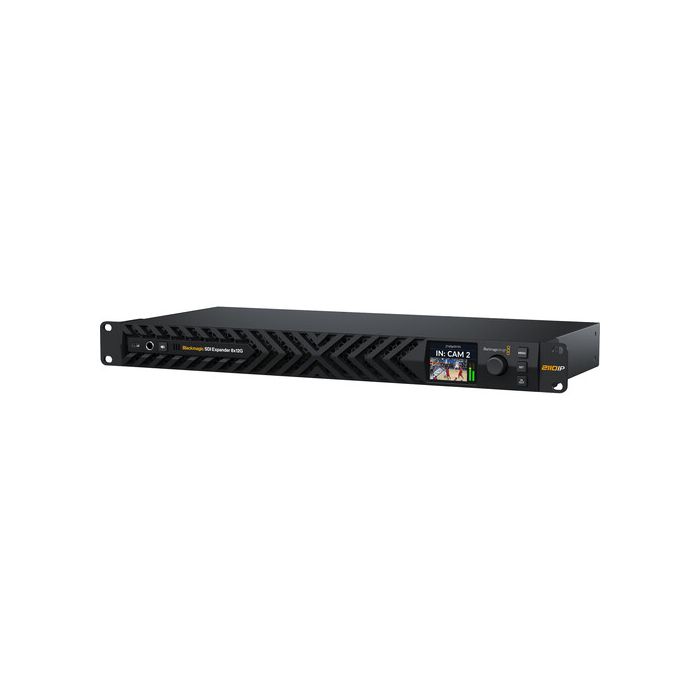

Blackmagic Design SDI Expander 8x12G
by Blackmagic DesignThe Blackmagic Design SDI Expander 8x12G is a 1 RU bidirectional SMPTE 2110 IP converter designed to integrate 12G-SDI infrastructure into high-bandwidth 100GbE broadcast systems.
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Blackmagic Design SDI Expander 8x12G
The Blackmagic Design SDI Expander 8x12G is a 1 RU bidirectional SMPTE 2110 IP converter designed to integrate 12G-SDI infrastructure into high-bandwidth 100GbE broadcast systems. Supporting up to 16 channels of simultaneous 10-bit 4:2:2 video conversion, the unit converts eight independent 12G-SDI inputs to SMPTE 2110 IP while concurrently converting eight SMPTE 2110 IP streams back to 12G-SDI outputs. Dual 100GbE QSFP28 connections provide SMPTE ST 2022-7 redundancy, ensuring uninterrupted signal delivery across IP-based production workflows.
Engineered for hybrid SDI/IP environments, the expander supports SD, HD, and Ultra HD formats up to 4K60 with automatic detection, along with 16 channels of embedded audio per 2110 IP video stream. A front-panel 2.2" LCD with integrated control knob and buttons enables real-time monitoring of video, audio, and system parameters, while a built-in speaker and headphone output allow for direct audio confidence monitoring. External control is supported via a dedicated RJ45 for NMOS-based configuration and USB-C for setup and firmware updates, with dual IEC power inputs ensuring power redundancy for reliable performance.
- Simultaneous bidirectional conversion between 12G-SDI and SMPTE 2110 IP video
- Eight 12G-SDI inputs and eight 12G-SDI outputs in a single 1 RU chassis
- Dual 100GbE QSFP28 ports with SMPTE ST 2022-7 redundant streaming
- Auto-detection of SD, HD, and Ultra HD formats up to 4K60
- 10-bit 4:2:2 video with Rec. 709 and Rec. 2020 color space support
- 16 channels of embedded audio per IP video stream
- 2.2" front-panel LCD for video, audio, and system monitoring
- Integrated control knob and buttons for configuration and routing
- Built-in speaker and headphone output for audio monitoring
- Dedicated RJ45 port for NMOS control, configuration, and updates
- USB-C interface for firmware updates and local configuration
- Dual IEC C14 AC inputs for redundant power delivery
| Interfaces | |
| Inputs | 8 x BNC (12G-SDI) |
| 1 x QSFP28 (100G Ethernet) | |
| Embedded Audio | IP/SDI: 32-Channel |
| Outputs | 8x BNC (12G-SDI) |
| 1x QSFP28 (100G Ethernet) | |
| Other I/O | 1x RJ45 Input |
| 1x USB-C (Firmware) Input | |
| Standards | |
| Video Standard Compliance | SMPTE 292M/296M/424M/425M/2110-30/2110-40/ST 2110-20/ST 2110-21/ST-2022-7/ST-2081-1/ST-2081-10/ST-2082-1/ST-2082-10/ST-2084/ST-2108-1 |
| Reclocking | No |
| HDR Support | Yes |
| HDCP Support | No |
| EDID Support | No |
| OS Compatibility | macOS 26.0 or Later |
| Windows 11 or Later | |
| Transmission | |
| Video Format | SDI Input (10-Bit 4:2:2 YUV) |
| 3840 x 2160: 23.98/24/25/29.97/30/50/59.94/60 fps | |
| 1920 x 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps | |
| 1920 x 1080i: 50/59.94/60 fps | |
| 1920 x 1080PsF: 25/29.97/30 fps | |
| 1280 x 720p: 50/59.94/60 fps | |
| Maximum Data Rate | 100 Gb/s |
| Power | |
| Power I/O | 2x IEC C14 Input |
| Power Consumption | 100 to 240 VAC |
| General | |
| Rack Form Factor | 1 RU |
| Certifications | IEEE 1588-2008 |
| Operating Conditions | 41 to 104°F / 5 to 40°C up to 90% Humidity |
| Storage Conditions | -4 to 113°F / -20 to 45°C up to 90% Humidity |
| Dimensions | 19.0 x 8.9 x 1.7" / 482.6 x 226.1 x 43.2 mm |
