Blackmagic Design OpenGear Converter - Sync Generator

by Blackmagic Design
Availability: 7-10 days delivery
SKU
CONVOPENGSYNC

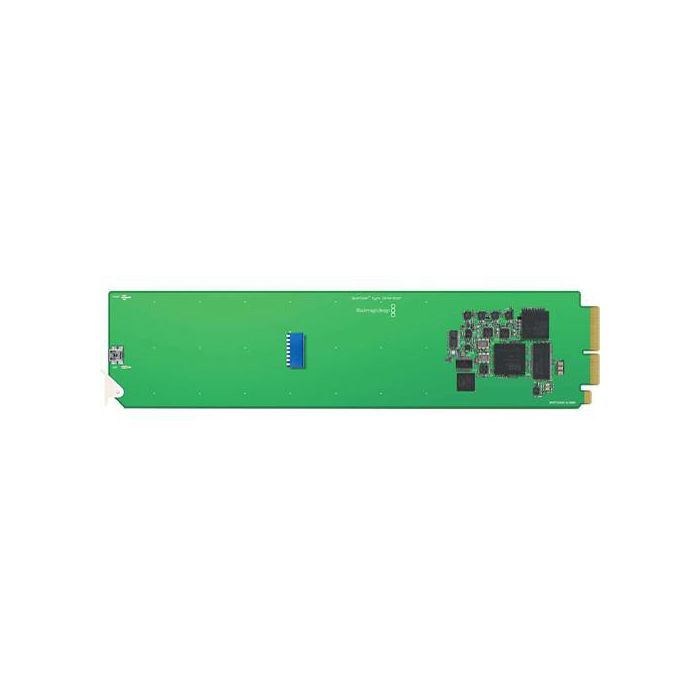

The Blackmagic Design CONVOGSYNC is a rack card sync generator operating within the OpenGear standard. This card includes rear module connectivity and operates within a converter chassis with other OpenGear devices.

€544.25 €435.40

Package includes

  • Blackmagic Design OpenGear Converter Sync Generator
  • Card
  • Rear Module

The Blackmagic Design CONVOGSYNC is a rack card sync generator operating within the OpenGear standard. This card includes rear module connectivity and operates within a converter chassis with other OpenGear devices.

OpenGear

OpenGear is an open standard for rack mount converters and processing for television broadcasters. OpenGear uses a 2 rack unit rack frame that holds up to 10 plug in cards, or a double density frame can be used to hold up to 20 cards. Many manufacturers develop OpenGear cards and frames that can be mixed and matched. OpenGear cards are hot swappable and can be controlled by java based DashBoard network control and monitoring software on Windows, Mac OS X and Linux.

Application

This generator includes 10 crystal stabilized video reference outputs for referencing all the video equipment in the user's studio with either high definition tri-sync or standard definition black burst.
Output Black Burst or Tri-Sync Reference x10, on BNC connectors
Television System NTSC or PAL
720p or 1080i
480i, 480p or 576p
Control Via Computer from Chassis Interface
Power Source From OpenGear Chassis
Dimensions (WxDxH) Specific Size for OpenGear Chassis
Weight Less Than 1 lbs
