Blackmagic Design OpenGear Converter - Analog to SDI
OpenGear Converter Analog to SDI Module from Blackmagic Design is a component designed for use in the modular OpenGear system.
- Blackmagic Design OpenGear Converter Analog to SDI Module

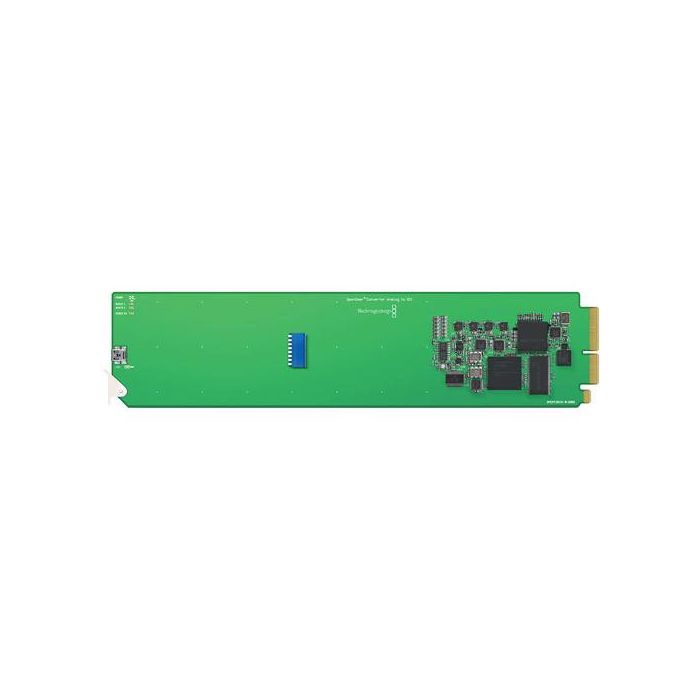

The OpenGear Converter Analog to SDI Module from Blackmagic Design is a component designed for use in the modular OpenGear system. OpenGear is essentially an open-standards chassis that can be mounted in a rack for conversion and processing work. The chassis accepts different modules to enhance its functionality, allowing the solution to be expanded or scaled at will.
This module is designed to convert analog HD/SD component, NTSC, PAL or S-video input to SDI output with balanced AES/EBU and analog audio embedding. It is well suited for use with Betacam SP, VHS, set-top boxes, gaming consoles, and HDV cameras, among other possible equipment and applications.
Analog to SDI Conversion
- Use this module to convert analog HD/SD component, NTSC, PAL or S-video input to SDI output with balanced AES/EBU and analog audio embedding.
- This module is intended for use in the OpenGear modular chassis.
1 x channel component SD/HD
2 x channels of professional balanced analog audio with standard 1/4" jack
AES/EBU Digital Audio
2 x channels of professional balanced digital with standard 1/4" jack
|Output||SDI: 1 x channel switchable between SD, HD and 3Gbs SDI|
|Standards||SDI Format Support:
625/25 PAL, 525/29.97 NTSC, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94 and 720p60.
SMPTE 292M, SMPTE 259M, SMPTE 296M, ITU-R BT.656, ITU-R BT.601 and SMPTE 297M for Optical Fiber SDI
SDI Video Sampling:
SDI Video Rates:
SDI video connections are switchable between standard definition and high definition.
SDI Color Precision:
SDI Color Space:
SDI Audio Sampling:
Television standard sample rate of 48 kHz and 24 bit
SDI Auto Switching:
Automatically selects between SD SDI, HD-SDI and 3 Gbs SDI
Analog Format Support:
625/25 PAL, 525/29.97 NTSC, 1080PsF23.98, 1080PsF24, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94 and 720p60
Analog Color Precision:
Analog Color Space:
HDMI Format Support:
625/25 PAL, 525/29.97 NTSC, 625/50p PAL, 525/59.94p NTSC, 1080p23.98/24, 1080i50, 1080i59.94/60, 720p50 and 720p59.94/60
HDMI Color Precision:
4:2:2 and 4:4:4
HDMI Color Space:
YUV and RGB
For legal reasons, capture devices from Blackmagic Design are designed not to capture, convert or transmit video or audio from copy-protected sources, e.g. video devices using HDCP
