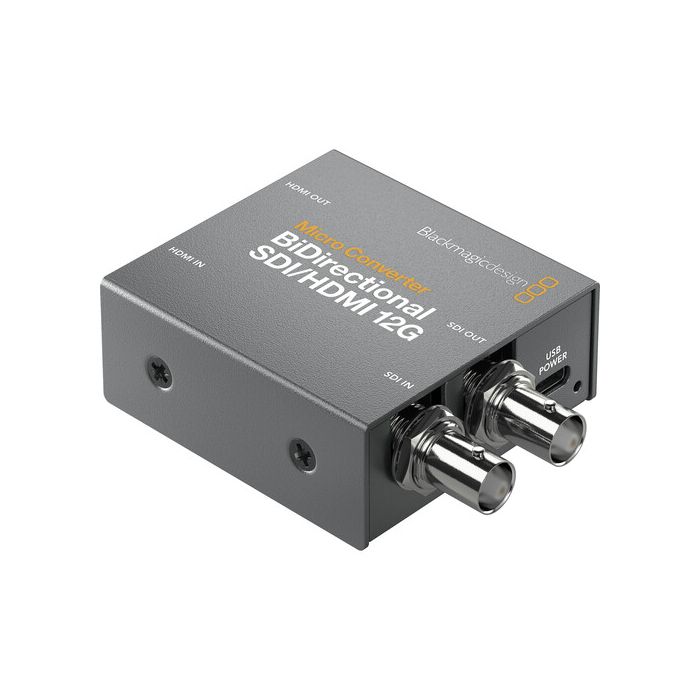

Blackmagic Design Micro Converter BiDirectional SDI/HDMI 12G (with PSU)
by Blackmagic DesignSimultaneous SDI to HDMI & HDMI to SDI
1 x SD/HD/12G-SDI & 1x HDMI Input/Output
Supports up to DCI/UHD 4K60 Video
Blackmagic Camera Control, Tally Support
SDI Re-Clocking/HDMI Timecode
HDMI Copy Protection Support
Automatic Input Signal Detection
Embedded HDMI & SDI Input/Output
LED Video & Power Signal Indicators
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Blackmagic Design Micro Converter BiDirectional SDI/HDMI 12G with Power Supply
- Power Adapter
- International Plug Adapter Set
Easily combine SDI and HDMI components in your video setup with the Micro Converter BiDirectional SDI/HDMI 12G from Blackmagic Design. This compact bidirectional converter can convert SDI to HDMI and HDMI to SDI in all SD, HD, and UHD formats up to 2160p60. Since each conversion direction can be a different SD, HD, or UHD video standard, it's like getting two converters in one. It also offers camera control conversion for Blackmagic HDMI cameras like the Pocket Cinema Camera 4K or 6K, enabling you to use them with an SDI-based live switcher.
The pocket-sized Micro Converter BiDirectional SDI/HDMI 12G features HDMI timecode support, SDI re-clocking for stability over long cable runs, support for a wide range of pro broadcast resolutions, including cine-style 48 fps, and both HDMI and SDI embedded audio input and output. This converter features a sturdy metal housing with power and signal LED status indicators and rugged connector interfaces. A USB Type-C port enables the converter to easily connect to and be powered by large-screen monitors, laptops, desktop computers, or projectors. A power supply and an international plug adapter set are included with the converter.
Features
Bidirectional Format Conversion
You can convert SDI to HDMI and HDMI to SDI in all SD, HD, and UHD formats up to 2160p60. Each conversion direction can be a different SD, HD, or UHD video standard, so it's like getting two converters in one.
Compact, Rugged Design
- Robust metal housing and rugged connectors
- USB Type-C port for powering via a compatible component like a monitor or laptop
- Updatable via the USB Type-C port and your Mac or Windows computer
HDMI Camera Control
Camera control conversion for the HDMI-output Blackmagic Pocket Cinema Camera 4K or 6K, enables use with an SDI-based live switcher
SDI & HDMI Timecode
HD and SD timecode support
Converts HDMI timecode to SDI and vice versa
SDI Re-Clocking
Built-in re-clocking on 3G-SDI output enables stable output over longer cable runs
Compatible with SMPTE 259M/292M/296M/424M/425M level A and B
Wider Resolution Support
SDI support from NTSC and PAL up to DCI/UHD 4K60
HDMI support from NTSC and PAL up to DCI/UHD 4K60
Embedded Audio
Supports embedded SDI and HDMI input and output
LED Indicators
LED indicators for video and power signals
Versatile Power Options
Power from a monitor, laptop, or other component using the USB Type-C port
Power supply and international plug adapter set are included
| Video Input Connectors | 1 x BNC (12G-SDI / 3G-SDI / HD-SDI / SD-SDI) Female 1 x HDMI (HDMI 2.0) Female |
| Input Video Format | SDI (8/10-Bit 4:2:2 RGB, YUV) DCI 4K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2KPsF: 25/29.97/30 fps 1080p: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080PsF: 25/29.97/30 fps 1080i: 50/59.94/60 fps 720p: 50/59.94/60 fps NTSC: 59.94 fps PAL: 50 fps HDMI (8/10-Bit 4:2:2 RGB, YUV) DCI 4K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080p: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080i: 50/59.94/60 fps 720p: 50/59.94/60 fps NTSC: 29.97 fps PAL: 25 fps |
| Audio Input Connectors | None |
| Embedded Audio Input | HDMI SDI |
| Video Output Connectors | 1 x BNC (12G-SDI / 3G-SDI / HD-SDI / SD-SDI) Female 1 x HDMI (HDMI 2.0) Female |
| Output Video Format | SDI (8/10-Bit 4:2:2 RGB, YUV) DCI 4K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2KPsF: 25/29.97/30 fps 1080p: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080PsF: 25/29.97/30 fps 1080i: 50/59.94/60 fps 720p: 50/59.94/60 fps NTSC: 29.97 fps PAL (768 x 576): 25 fps |
| Audio Output Connectors | None |
| Embedded Audio Output | HDMI SDI |
| Video Standard Compliance | SMPTE 259M/292M/296M/424M/425M-A/425M-B |
| HDCP Support | Version 2.2 |
| HDR Compatibility | Not Specified by Manufacturer |
| Other I/O | 1 x USB Type-C Firmware Input (Shared Power) |
| Expansion Slots | None |
| Tally Light | Yes |
| OS Compatibility | macOS 10.15.15 or Later Windows 11.1 or Later |
| Power Connector | 1 x USB Type-C (4.4 to 5.2 VDC) Input |
| Power Consumption | Device: 5 W |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 0 to 90% |
| Dimensions | 3.18 x 2.32 x 0.98" / 80.77 x 58.93 x 24.89 mm |
| Weight | 6.13 oz / 174 g |
| Package Weight | 0.875 lb |
| Box Dimensions (LxWxH) | 5.8 x 4.7 x 2.9" |
