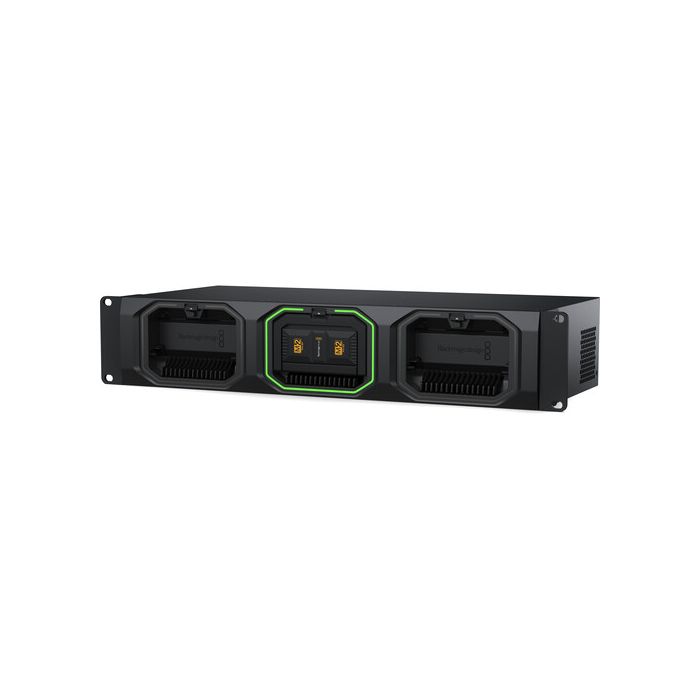

Blackmagic Design Media Dock
by Blackmagic Design
Availability:
7-10 days delivery
SKU
DWCLDB/DOCNMD03
Blackmagic Media Dock accelerates your post production workflow by enabling high speed network sharing and upload from up to 3 Blackmagic Media Modules from Blackmagic URSA Cine cameras.
€2,186.25
€1,749.00
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Blackmagic Media Dock
- Welcome wallet with QR code for software download
Blackmagic Media Dock accelerates your post production workflow by enabling high speed network sharing and upload from up to 3 Blackmagic Media Modules from Blackmagic URSA Cine cameras. 4 x 10G Ethernet ports allow 4 separate edit stations to connect and edit directly. Blackmagic Media dock also has Ethernet over USB-C, dual AC power inputs for redundancy and an HDMI output for live monitoring of media in real time on a TV or monitor.
| Interface | 3 x removable and hot-swappable Blackmagic Media Modules. |
| 10G Ethernet Ports | 4 x 10G BASE-T |
| USB-C Port | 1 x USB 3.0 (up to 5Gb/s). Supports Ethernet Over USB |
| HDMI Monitor Outputs | 1 |
| Computer Interface | USB-C or Ethernet for shared file access, configuration and software updates. |
| File Sharing Protocol | |
| Protocol | SMB |
| Computer Connections | 50 max. |
| Cloud Synchronization | |
| Compatible Services | Dropbox |
| Google Drive | |
| Storage | |
| Storage Type | Up to 3 Blackmagic Media Modules. |
| External Storage Format | Blackmagic (formatted in camera) |
| Displays | |
| HDMI Monitor Out Standards | 1080p50, 1080p59.94, 1080p60 |
| Monitor Out Displays | Device Name, storage capacity and use, Cloud Sync status, User Activity, Hardware Status, storage map, network data rate graph. |
| Status Indicator | LED bezel indicator lights around media module bays. |
| Device Control | |
| External Control | USB-C or Ethernet for configuration and software updates. |
| Software | |
| Software Included | Blackmagic Cloud Setup Utility |
| Blackmagic Proxy Generator Lite | |
| Internal software upgrade via Blackmagic Cloud Setup using USB-C port | |
| Operating Systems | Mac 14.3 Sonoma or later. |
| Windows 10, 64-bit. | |
| Windows 11. | |
| Power Requirements | |
| Power Supply | Internal 100 - 240V AC 50/60Hz with IEC C14 mains input. |
| Power Usage | TBA |
| Physical Installation | 2 rack units. |
| Environmental Specifications | |
| Operating Temperature | 0° to 40° C (32°to 104° F) |
| Storage Temperature | -20° to 60° C (-4° to 140° F) |
| Relative Humidity | 0% to 90% non-condensing |
