Blackmagic Design Fairlight Console LCD Monitor
by Blackmagic DesignFor DaVinci Resolve 17 Systems
Add a Monitor per Fairlight Console Bay
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Blackmagic Design Fairlight Console LCD Monitor

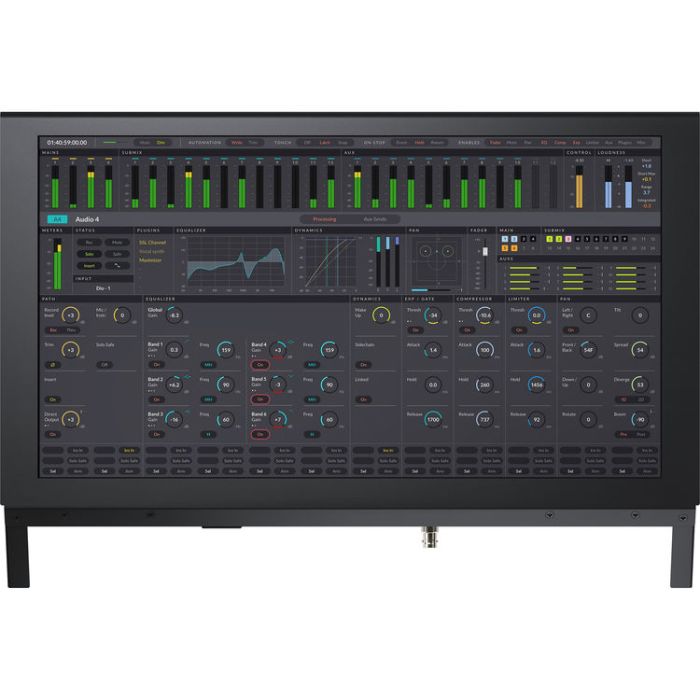

Equip every bay of your Fairlight console with a Blackmagic Design Fairlight Console LCD Monitor to achieve versatile and comprehensive visual referencing for your DaVinci Resolve 17 system. This self-contained computer and high-resolution display combo features Ethernet, HDMI, and SDI connectivity to accept video signal from various sources such as a channel control panel, a computer, and a DeckLink interface.
When configured with a Fairlight channel control panel, the Fairlight Console LCD Monitor provides graphical feedback for the panel's controls, even as you adjust them in real time. Paired with a Fairlight Audio Editor, this LCD monitor will show you the DaVinci Resolve GUI without relying on an additional monitor. Run a video feed from your DeckLink or UltraStudio interface into the BNC SDI input to use the Fairlight Console LCD Monitor for lip sync checks with full-screen video previewing.
Clear Visual Reference
Depending on the task, you'll see individual channel information in-line with each fader strip below, all parameters when used in single-channel mode, or all controls for master mode. Previewing the video program while mixing and editing allows you to see the talent up close; you get a detailed view of character faces for checking lip sync. You can add a Fairlight Console LCD Monitor to every bay.
Graphical Channel Control Feedback
DaVinci Resolve User Interface
Full-Screen Video Preview Monitor
Configuration and Updates via USB Type-C
Convenient Software Upgrades
Internal Power Supply
| OS Compatibility |
macOS 10.15 or Later
Windows 10 (64-Bit) |
| Ports |
1 x RJ45 Ethernet (10/100/1000 Base-T)
1 x HDMI Type-A Female Input 1 x BNC Female 3G-SDI Input 1 x USB Type-C (Software Configuration and Software Updates) |
| SDI Rate | 1.5G, 3G |
| HDMI Standards |
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
|
| SDI Standards |
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, and 1080i60
|
| SDI Compliance |
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M-B, and SMPTE 425 Level A and Level B
|
| SDI Video Sampling | 04:02:02 |
| SDI Color Precision | 10-Bit |
| SDI Color Space | YUV |
| Power Supply |
Internal: 100 to 240 VAC at 50/60 Hz, IEC C14 Mains Input
|
| Power Usage |
20 W Maximum
|
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Storage Temperature |
-4 to 140°F / -20 to 60°C
|
| Relative Humidity |
0 to 90% Noncondensing
|
| Dimensions |
19.3 x 4.8 x 12.9" / 49 x 12.1 x 32.8 cm
|
| Weight | 9.9 lb / 4.5 kg |
| Packaging Info | |
| Package Weight | 12.69 lb |
| Box Dimensions (LxWxH) |
22 x 17.5 x 6.6"
|
