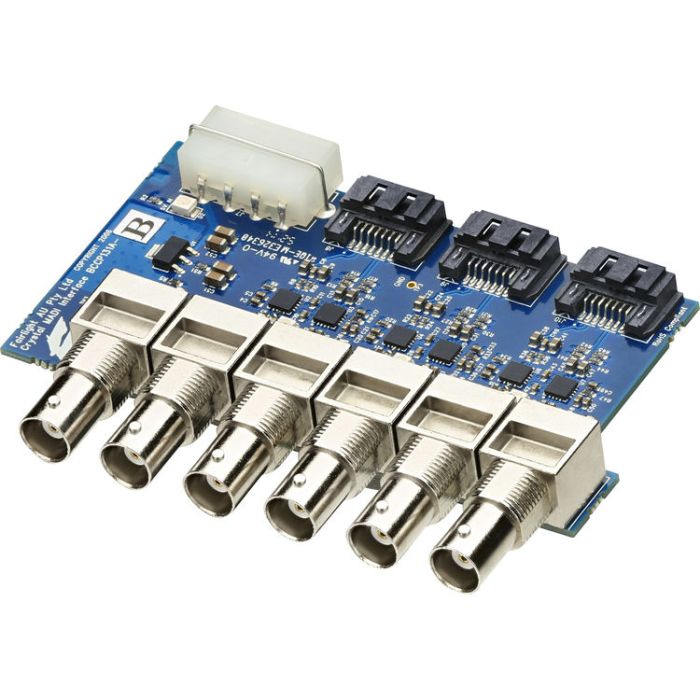

Blackmagic Design Fairlight Audio MADI Upgrade
by Blackmagic Design
Availability:
7-10 days delivery
SKU
DV/RFL/AUDAMADI
For DaVinci Resolve 17 Systems
Requires Fairlight Audio Accelerator
€228.75
€183.00
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Blackmagic Design Fairlight PCIe Audio MADI Upgrade
- 3 x SATA Cables (11.8")
- Computer Power Cable
Key Features
Enhanced Channel Capacity
With the Fairlight PCIe Audio MADI Upgrade, your total MADI channel count increases to 256 inputs and outputs, providing you with unparalleled flexibility for complex audio projects.
High-Quality Audio Resolution
This upgrade operates at a remarkable 24-bit / 48 kHz resolution, ensuring that your audio quality remains pristine, whether you are recording, mixing, or mastering your projects.
Efficient Connectivity
The upgrade features three 75-ohm BNC MADI inputs and three 75-ohm BNC MADI outputs. This design allows for an extensive number of audio channels while occupying minimal physical space in your setup.
| Channels of I/O |
MADI:
192 Inputs / 192 Outputs at 48 kHz |
| Maximum Sampling Rate | 48 kHz / 24-Bit |
| Number of Microphone Inputs | No |
| Analog Audio I/O | No |
| Digital Audio I/O |
3x BNC Coaxial MADI Input
3x BNC Coaxial MADI Output |
| Host Connection | 1x PCIe |
| OS Compatibility |
macOS 10.15 or Later
Windows 10 (64-Bit Only) |
| Power Requirements | PCIe |
| General | |
| Display | No |
| Channels of I/O |
MADI:
192 Inputs / 192 Outputs at 48 kHz |
| Maximum Sampling Rate | 48 kHz / 24-Bit |
| Number of Microphone Inputs | No |
| Signal Processing | NTSC |
| Pad | No |
| High-Pass Filter | No |
| Solo/Mute | No |
| Connectivity |
1x Barrel (6 to 30 VDC ) Input
|
| Analog Audio I/O | No |
| Phantom Power | No |
| Digital Audio I/O |
3x BNC Coaxial MADI Input
3x BNC Coaxial MADI Output |
| Host Connection / USB | 1x PCIe |
| USB (Non-Host) | No |
| Sync I/O | No |
| Network I/O | No |
| MIDI I/O | No |
| Expansion Slots | No |
| Performance | |
| Impedance |
Coaxial MADI :
75 Ohms |
| Digital Audio | |
| Sample Rates | 48 kHz |
| Sample Rate Conversion | No |
| Bit Depths | 24-Bit |
| Sync Sources | MADI |
| Compatibility | |
| OS Compatibility |
macOS 10.15 or Later
Windows 10 (64-Bit Only) |
| Mobile Device Compatibility | No |
| Required Hardware | PCIe Card Slot |
| Power | |
| Power Requirements | PCIe |
| Power Consumption | 4 W |
| Physical | |
| Operating Humidity | 0 to 90% |
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Storage Temperature |
-4 to 140°F / -20 to 60°C
|
| Dimensions |
3.07" / 7.8 cm (Half-Size PCIe Card)
|
| Weight |
4.9 oz / 139.0 g
|
| Packaging Info | |
| Package Weight | 0.525 lb |
| Box Dimensions (LxWxH) | 5.5 x 5.4 x 1.2" |
