Blackmagic Design Ethernet Switch 820
by Blackmagic DesignDesigned for SMPTE 2110 video commonly employed in the film and television industry, the Ethernet Switch 820 from Blackmagic Design provides extremely high performance with eight high-speed 100G Ethernet QSFP ports.
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Blackmagic Design Ethernet Switch 820

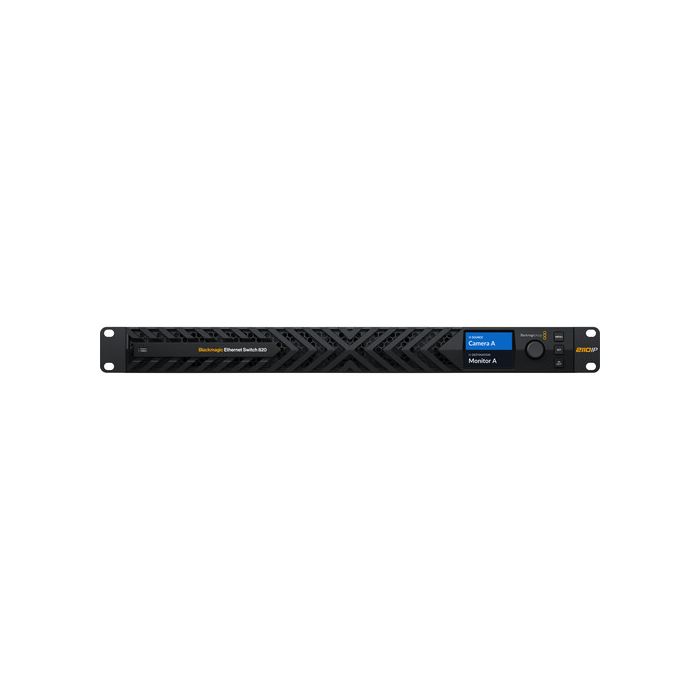

Designed for SMPTE 2110 video commonly employed in the film and television industry, the Ethernet Switch 820 from Blackmagic Design provides extremely high performance with eight high-speed 100G Ethernet QSFP ports. The unit features a front and rear ventilated design with redundant power supply, and it incorporates two fast 10G Ethernet ports, two PTP clock ports, 1G control port, and 1G management port. All ports are conveniently located on the back of the device to facilitate easier cabling, making it ideal for fly-pack and small broadcast truck use.
| Processing | |
| Switching Type | Software |
| Processing Resolution | 1080p at 50/59.94/60 |
| Input | |
| Input Video Format | Fiber / RJ45 |
| 1080p at 50/59.94/60 fps | |
| Connectivity | |
| Inputs/Outputs | 8x Socket for SFP Module |
| 2x RJ45 | |
| Other I/O | 1x RJ45 Control |
| 1x RJ45 Unspecified | |
| 2x RJ45 Reference | |
| Display | |
| Display Size | 2.2" |
| Hardware | |
| OS Compatibility | macOS 15 or Later / Windows 10 or Later |
| Wireless | No |
| Power | |
| Power I/O | 2x IEC C14 (100 to 240 VAC ) Input |
| General | |
| Operating Conditions | 41 to 104°F / 5 to 40°C up to 90% Humidity |
| Storage Conditions | -4 to 113°F / -20 to 45°C up to 90% Humidity |
| Rack Form Factor | 1 RU |
| Dimensions | 19 x 8.5 x 1.74" / 48.3 x 21.6 x 4.42 cm |
