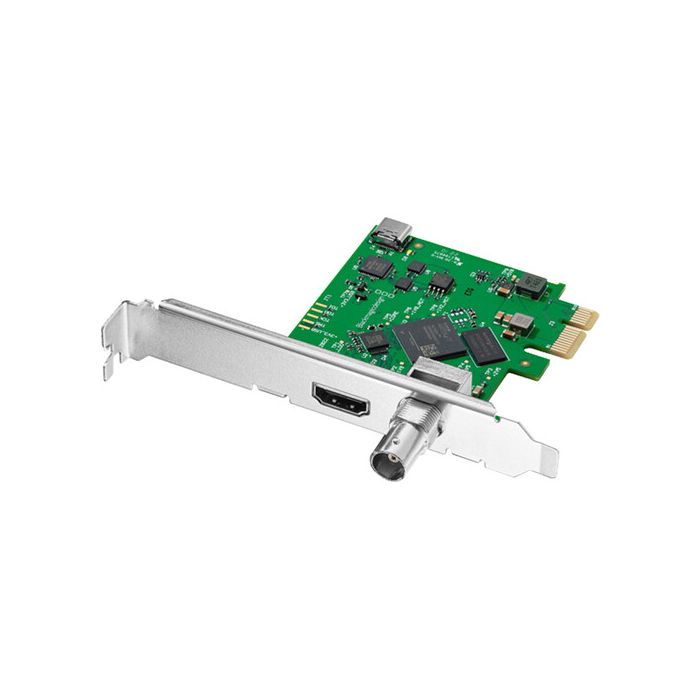

Blackmagic Design DeckLink Mini Recorder HD
by Blackmagic DesignBroadcast-Quality Recording
1-Lane PCIe Slot Card (for 1-16 Lanes)\
SDI and HDMI Inputs
Supports up to 2K DCI over SDI
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Blackmagic Design DeckLink Mini Recorder HD
- Low-Profile Slot Bracket
Record HD video over SDI or HDMI with the Blackmagic Design DeckLink Mini Recorder HD. This 1-lane PCIe slot playback card with SDI and HDMI inputs is, compatible with 1-, 4-, 8-, and 16-lane PCIe slots, allowing you to capture up to DCI 2K video over SDI, and HD video over HDMI 2.0.
The card is compatible with such software packages as Wirecast, vMix, and OBS. In addition, the card supports hardware-based real-time color space conversion. The card also automatically switches between SD and HD formats, so it'll handle all common video formats as well as HDR.
Wirecast, vMix, OBS, Cinergy Capture Pro, DevTek EasyMediaSuite, Glookast Capturer, Livestream Producer, Metus Ingest, Softron MovieRecorder, ToolsOnAir just:in, Burst Video WebClip2Go & [REC]Marker, Zoom
Supported Codecs
AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLRDV-NTSC DV-PAL, DVCPRO50, DVCPROHD,
DPX HDV, HEVC, XDCAM EX, XDCAM HD,
XDCAMHD422, DNxHR & DNxHD AppleProRes 4444,
Apple ProRes 422 HQ Apple ProRes 422 Apple ProRes 422LT
Apple ProRes 422 Proxy Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2,
Uncompressed 10-bit 4:4:4
System Connection |
(Length Unspecified) |
Video Inputs | 1 x BNC (3G-SDI / HD-SDI / SD-SDI) |
1 x HDMI (HDMI 2.0) | |
Audio Inputs | None |
Simultaneous Multi-Input Support | Not Specified by Manufacturer |
Input Video Format | SDI (8/10/12-Bit 4:4:4 RGB) |
1080p at 23.98/24/25/29.97/30 fps | |
720p at 50/59.94/60 fps | |
576i / 625 lines at 50 fps | |
480i / 525 lines at 59.94 fps | |
SDI (8/10-Bit 4:2:2 YUV) | |
DCI 2K at 23.98/24/25/29.97/30/50/59.94/60 fps | |
DCI 2KPsF at 23.98/24/25/29.97/30 fps | |
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps | |
1080PsF at 23.98/24/25/29.97/30 fps | |
1080i at 50/59.94/60 fps | |
576i / 625 lines at 50 fps | |
480i / 525 lines at 59.94 fps | |
HDMI (8-Bit 4:4:4 RGB, YUV) | |
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps | |
1080i at 50/59.94/60 fps | |
720p at 50/59.94/60 fps | |
576i / 625 lines at 50 fps | |
480i / 525 lines at 59.94 fps | |
HDMI (12-Bit 4:4:4 YUV) | |
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps | |
1080i at 50/59.94/60 fps | |
720p at 50/59.94/60 fps | |
576i / 625 lines at 50 fps | |
480i / 525 lines at 59.94 fps | |
Embedded Audio | SDI: 16-Channel |
HDMI: 8-Channel | |
Standards |
|
Video Standard Compliance | SMPTE 259M/274M/296M/424M/425M-A/425M-B/ST-2108-1 |
HDR Compatibility | Not Specified by Manufacturer |
Hardware |
|
OS Compatibility | macOS 11.1 |
macOS 12.0 or Later | |
Windows 10 | |
Windows 11 | |
Linux | |
*As of July, 2022: Check with manufacturer for the most up-to-date compatibility | |
Power Consumption | Device: 3 W |
Environmental |
|
Operating Temperature | 37 to 72°F / 5 to 40°C |
Storage Temperature | -4 to 113°F / -20 to 45°C |
Operating Humidity | 0 to 90% (Non-Condensing) |
Storage Humidity | 0 to 90% (Non-Condensing) |
General |
|
Dimensions | 3.62" / 91.95 mm |
Weight | 1.98 oz / 56 g |
Packaging Info |
|
Package Weight | 0.29 lb |
Box Dimensions (LxWxH) | 5.6 x 5.3 x 1.2" |
