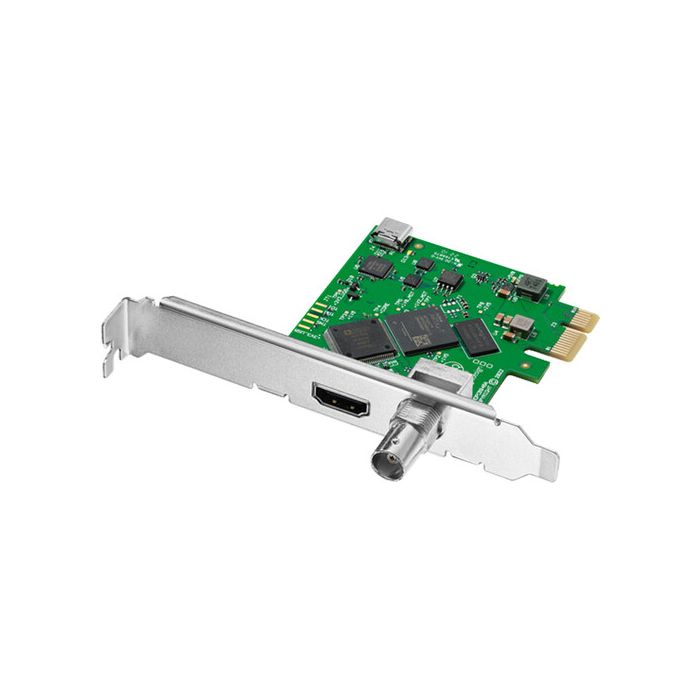

Blackmagic Design DeckLink Mini Monitor HD
by Blackmagic DesignBroadcast-Quality Playback & Monitoring
1-Lane PCIe Slot Card (for 1-16 Lanes)
SDI and HDMI Outputs
Up to 1080p60 Resolution Support in HDMI
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Blackmagic Design DeckLink Mini Monitor HD
- Low-Profile Slot Bracket
Monitor your computer's video output via SDI or HDMI with the Blackmagic Design DeckLink Mini Monitor HD. This 1-lane PCIe slot playback card with SDI and HDMI outputs, compatible with 1-, 4-, 8-, and 16-lane PCIe slots, providing you with just the playback and monitoring functionality for delivering broadcast-quality video via HDMI or SDI monitors.
The card supports up to DCI 2k formats and is compatible with such software packages as DaVinci Resolve and Final Cut Pro. In addition, the card supports hardware-based real-time color space conversion. The card also automatically switches between SD and HD formats, so it'll handle all common video formats as well as HDR.
DaVinci Resolve, Fusion, Final Cut Pro, Adobe Premiere Pro CC, Adobe After Effects CC, Adobe Photoshop CC
Avid Media Composer, Avid Pro Tools, Steinberg Cubase, Steinberg Nuendo, The Foundry Nuke, Sony Catalyst Production Suite, Tools On Air Just: Play & Live, Magix Movie Edit Pro Premium, Corel VideoStudio Pro, CyberLink Power Director, Grass Valley Edius, Softron Mreplay, Telestream Wirecast, Livestream Studio, Resolume Arena, Vegas Creative Software Vegas Pro, VidblasterX Studio and Broadcast, Unimedia Technologies UniplayOne and Uniplay-CG, CasparCG Server, Magicsoft CG, Xsplit Broadcaster, DevTek Easy Media Suite, Boinx Software MimoLive, StudioCoast vMix, Renewed Vision ProPresenter, Ventuz Director, Class X Liveboard and CoralCG, Open Broadcaster Software Studio, Nautilus Studio Nemo3D, Burst Video Webclip2Go, Derivative TouchDesigner, Assimilate Scratch and Live Assist, NewBlue Title Live and Titler Pro, SGO Mistika, Supported Codecs
AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, AppleProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes 422LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4
Hardware Frame Buffer
Blackmagic Design Mini Monitor HD Specs |
|
System Connection |
(Length Unspecified) |
Video Outputs | 1 x BNC (3G-SDI / HD-SDI / SD-SDI) (Monitor) |
1 x HDMI (HDMI 2.0) (Monitor) | |
Audio Outputs | None |
Output Video Format | SDI (8/10/12-Bit 4:4:4 RGB) |
1080p at 23.98/24/25/29.97/30 fps | |
1080PsF at 23.98/24/25/29.97/30/50/59.94/60 fps | |
1080i at 50/59.94/60 fps | |
720p at 50/59.94/60 fps | |
576i / 625 lines at 50 fps | |
480i / 525 lines 59.94 fps | |
SDI (8/10-Bit 4:2:2 YUV) | |
DCI 2K at 23.98/24/25/29.97/30/50/59.94/60 fps | |
DCI 2KPsF at 23.98/24/25/29.97/30 fps | |
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps | |
1080PsF at 23.98/24/25/29.97/30 fps | |
1080i at 50/59.94/60 fps | |
720p at 50/59.94/60 fps | |
576i / 625 lines at 50 fps | |
480i / 525 lines at 59.94 fps | |
HDMI (10/12-Bit 4:4:4 RGB) | |
1080p at 23.98/24/25/29.97/30 fps | |
1080i at 50/59.94/60 fps | |
720p at 50/59.94/60 fps | |
576i / 625 lines at 50 fps | |
480i / 525 lines at 59.94 fps | |
HDMI (8-Bit 4:4:4 RGB) | |
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps | |
1080i at 50/59.94/60 fps | |
720p at 50/59.94/60 fps | |
576i / 625 lines at 50 fps | |
480i / 525 lines at 59.94 fps | |
HDMI (12-Bit 4:2:2 YUV) | |
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps | |
1080i at 50/59.94/60 fps | |
720p at 50/59.94/60 fps | |
576i / 625 lines at 50 fps | |
480i / 525 lines at 59.94 fps | |
Embedded Audio | SDI: 16-Channel |
HDMI: 8-Channel | |
Standards |
|
Video Standard Compliance | SMPTE 259M/274M/296M/424M/425M-A/425M-B/ST-2108-1 |
HDR Compatibility | Not Specified by Manufacturer |
Hardware |
|
OS Compatibility | macOS 11.1 |
macOS 12.0 or Later | |
Windows 10 | |
Windows 11 | |
Linux | |
*As of July, 2022: Check with manufacturer for the most up-to-date compatibility | |
Power Consumption | Device: 3 W |
Environmental |
|
Operating Temperature | 37 to 72°F / 5 to 40°C |
Storage Temperature | -4 to 113°F / -20 to 45°C |
Operating Humidity | 0 to 90% (Non-Condensing) |
Storage Humidity | 0 to 90% (Non-Condensing) |
General |
|
Dimensions | 3.62" / 91.95 mm |
Weight | 1.98 oz / 56 g |
Packaging Info |
|
Package Weight | 0.295 lb |
Box Dimensions (LxWxH) | 5.3 x 5.2 x 1.2" |
