Blackmagic Design DeckLink 8K Pro Mini
by Blackmagic Design
Availability:
7-10 days delivery
SKU
BDLKHCPRO8K12GMINI

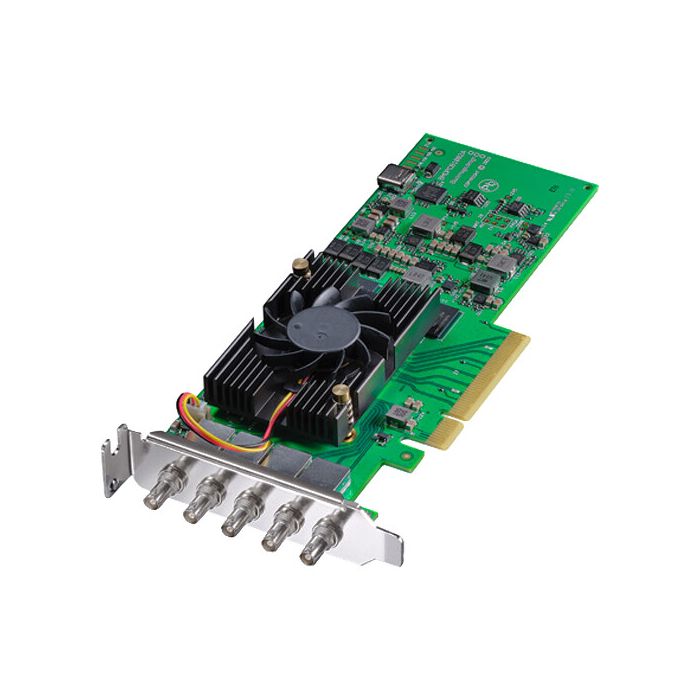

DeckLink 8K Pro Mini is the ultimate 8K digital cinema low profile capture and playback card.
€756.25
€605.00
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Blackmagic Design DeckLink 8K Pro Mini Capture Card
DeckLink 8K Pro Mini is the ultimate 8K digital cinema low profile capture and playback card. Featuring 4 independent 12G‑SDI Micro BNC connections, DeckLink 8K Pro Mini can work in all SD, HD, Ultra HD, 4K DCI, 8K and 8K DCI standards. You get support for high frame rate, 12-bit RGB 4:4:4 video and full Rec. 2020 color, making it perfect for next generation high resolution and high dynamic range workflows!
| Inputs / Outputs | |
| System Connection | PCIe 3.0 x8 |
| Inputs/Outputs | 4 x Micro-BNC (12G-SDI) Female (Switchable) |
| Audio Inputs | No |
| Other I/O | 1 x BNC Reference Input |
| Simultaneous Multi-Input Support | Yes |
| Format Support | |
| Input Video Format | BNC (8/10/12-Bit 4:4:4/4:2:2 RGB) |
| DCI 8K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps | |
| 8K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps | |
| DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps | |
| UHD 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60/100/119.88/120 fps | |
| DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60/100/119.88/120 fps | |
| DCI 2KPsF at 23.98/24/25/29.97/30 fps | |
| 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60/100/119.88/120 fps | |
| 1080PsF at 23.98/24/25/29.97/30 fps | |
| 720p at 50/59.94/60 fps | |
| 576i / 625 lines at 50 fps | |
| 480i / 525 lines at 59.94 fps | |
| Input Audio Format | LPCM (Linear Pulse-Code Modulation): 48 kHz / 24-Bit |
| Output Video Format | SDI (8/10/12-Bit 4:4:4/4:2:2 RGB) |
| DCI 8K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps | |
| 8K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps | |
| DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60/100/119.88/120 fps | |
| UHD 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60/100/119.88/120 fps | |
| DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60/100/119.88/120 fps | |
| DCI 2KPsF at 23.98/24/25/29.97/30 fps | |
| 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60/100/119.88/120 fps | |
| 1080PsF at 23.98/24/25/29.97/30 fps | |
| 720p at 50/59.94/60 fps | |
| 576i / 625 lines at 50 fps | |
| 480i / 525 lines at 59.94 fps | |
| Output Audio Format | LPCM (Linear Pulse-Code Modulation): 48 kHz / 24-Bit |
| Embedded Audio | SDI Input: 64-Channel |
| SDI Output: 64-Channel | |
| Standards | |
| Video Standard Compliance | SMPTE 259M/274M/292M/296M/372M/424M/ST-2036-1/ST-2048/ST-2081-10/ST-2081-11/ST-2082-1/ST-2082-10/ST-2108-1 |
| HDR Compatibility | Hybrid Log Gamma |
| Hardware | |
| OS Compatibility | macOS 12 or Later |
| macOS 13 | |
| Windows 11 or Later (64-Bit Only) | |
| Windows 10 or Later (64-Bit Only) | |
| Linux | |
| Power Consumption | Device: 18 W |
| Environmental | |
| Operating Temperature | 41 to 122°F / 5 to 50°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 0 to 90% () |
| Storage Humidity | 0 to 90% (Non-Condensing) |
| General | |
| Dimensions | 7.1" / 180.3 mm |
| Weight | 4.25 oz / 120 g |
