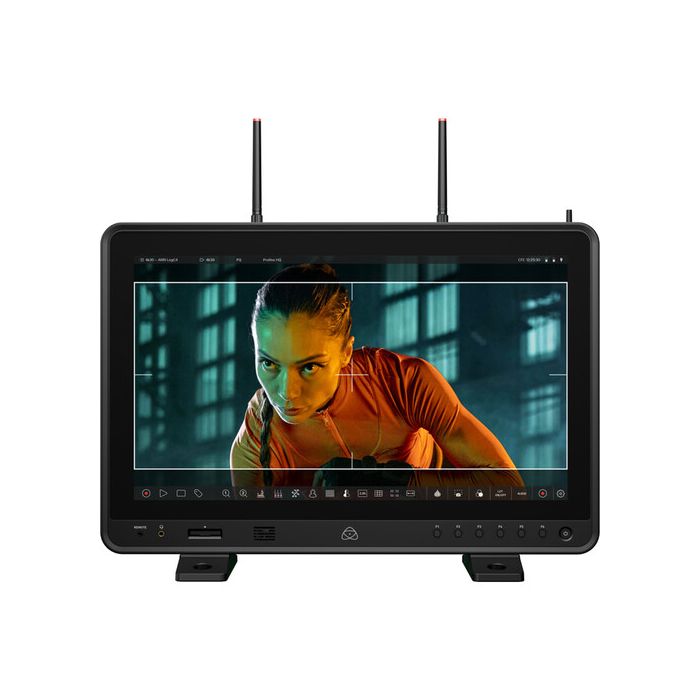

Atomos Sumo PRO-19

The large 19" panel gives focus pullers access to a high-quality HD image with focus assist tools such as peaking and 2:1/1:1 zoom. The robust aluminum and plastic chassis ensures that this monitor can be moved and reset for every shot during production.



In the studio, you can leverage the HDR capabilities of the Sumo PRO-19 for accurate monitoring. With a 10-stop dynamic range and 10-bit processing combined with Calibrite Display Pro or Display Plus calibration, you can be sure that your color-corrected images will translate through the post-production pipeline.



The Sumo PRO-19 features a Gigabit Ethernet connector and Wi-Fi 6E that supports NDI|HX3 for monitoring high-quality, low-latency NDI streams. It also supports AirGlu wireless timecode via Bluetooth and RF to keep sync with all your cameras on set. The monitor is also compatible with the separately available Atomos TX transmission system to wirelessly transmit video from cameras.



Sumo PRO-19 can receive a LOG signal from a camera and apply a real-time LUT (Look-Up Table) preview that approximates what the final graded image will look like in Rec. 709. Custom LUTs (.cube files) can be loaded from a CFexpress card or external USB-C storage and used in conjunction with built-in monitoring tools for precise exposure control.



The durable aluminum chassis houses multiple 1/4"-20 and 3/8"-16 mounting points around the top, bottom, and side, a rear panel 100 x 100 VESA mount, and an included stand for a variety of mounting configurations.



Seamlessly connect an SDI or HDMI device and convert between HDMI 2.0 and SDI (Quad 3G/6G/12G) in any combination. 3G-SDI and 12G-SDI inputs connect sources without the need for converters or four separate video inputs for multiview display or ISO recording. HDMI 2.0 supports up to 8K input and output, along with the very latest Atomos open protocol, which supports HDR automation, including the importing of camera settings. There is also support for Genlock and LTC via BNC.



Capture the raw data stream output in ProRes Raw/Raw HQ, 10-bit Apple ProRes, H.265, or DNxHR formats.



Eliminate the need for a separate audio recorder by using the full-size XLR connections to connect and power external microphones, for balanced analog audio with dedicated meters and adjustments for frame delay and gain.



The Sumo PRO-19 can utilize Ethernet or Wi-Fi to enhance your workflow via camera-to-cloud services, including Atomos ATOMOSphere, Adobe Frame.io, and Dropbox (with separately available service plans).



The bright 1200 cd/m² display lets you accurately monitor HDR or SD video signals, even when outside in full daylight. If additional light control is required, an optional sun hood is available separately.



Like many high-end video monitors, the Sumo PRO-19 can be calibrated to compensate for the natural color and brightness drift that monitors exhibit over time. The Sumo's calibration input lets you use Calibrite Display Pro or Display Plus (Windows/macOS) with the separately available Atomos LANC cable (ATOMCAB018).



The 4-pin XLR input provides power to the monitor using the included power supply. In the field, separately available V-mount or Gold mount plates can be used to mount up to two batteries using the additional 4-pin XLR inputs, providing ample redundant power.
