Atomos Shogun AV-19

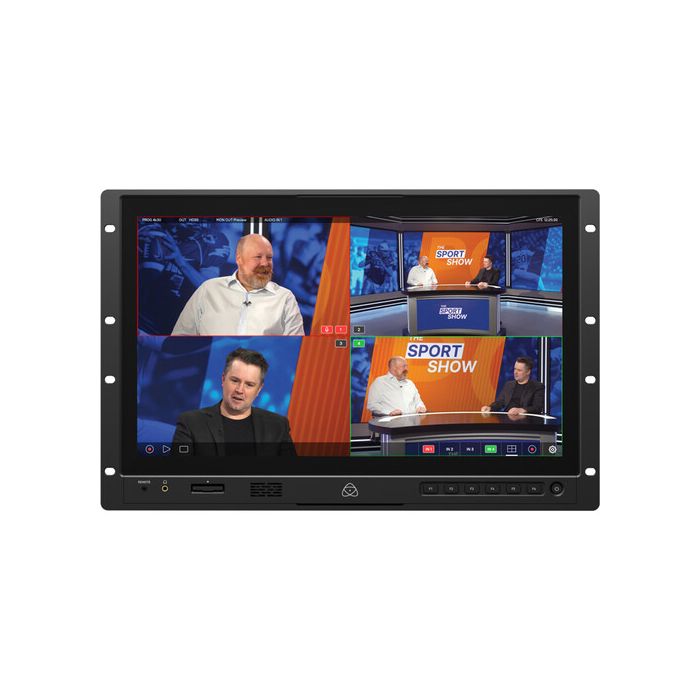

by AtomosExpand your production monitoring with the 19" Shogun AV-19 Rackmount 4K HDR Monitor-Recorder-Switcher, the latest workhorse in the Atomos Shogun line of onboard camera video monitor-recorders.
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Atomos 19" Shogun AV-19 Rackmount 4K HDR Monitor-Recorder-Switcher
- 4-Pin XLR Power Supply
- IEC Power Cable Kit (5 International Plugs)
- 10 x Rackmount Nut + Bolt
- Cleaning Cloth
Expand your production monitoring with the 19" Shogun AV-19 Rackmount 4K HDR Monitor-Recorder-Switcher, the latest workhorse in the Atomos Shogun line of onboard camera video monitor-recorders. This large 19" studio display provides monitoring, recording, and switching in a single unit, and it features a bright capacitive touchscreen display. It supports HDMI and 12G-SDI input and output, as well as NDI|HX3 via Gigabit Ethernet, so it's perfect for cinema capture, live events, and broadcast productions.
- Large 3840 x 2160 resolution display
- 1200 cd/m² brightness
- Capacitive touchscreen
- Quad- or full-screen display setup
- Play back your recently captured shots on the same pristine screen for reviewing
- One HDMI, two 12G-SDI, and two 3G-SDI inputs transform the Shogun into a quad-view live switcher and recorder on your multicamera shoots
- Monitor live, multicamera feed
- Record a fifth program channel of your switched feed and display the resulting mixed output live
- Switching is completely asynchronous, eliminating the need for expensive locked sources and allowing the use of more affordable cameras
Shogun AV-19 receives Log signals from the camera and offers real-time LUT (Look-Up Table) preview to approximate what the final graded image will look like in Rec.709 while recording in high-quality ProRes, DNxHR, or ProRes RAW.
Record to a CFexpress slot on the front of the monitor or to external media via USB-C output. Custom LUTs (.cube files) can be loaded from the CFexpress card or SSD and used in conjunction with the Shogun's built-in monitoring tools for precise exposure control.
You can instantly bring up monitoring tools, playback modes, LUTs, anamorphic desqueeze, and more with just the touch of a button.
- Custom 3D LUTs
- False color
- Focus peaking
- HDR exposure
- Pixel magnification (1:1, 2:1)
- RGB parade
- Vectorscope
- Frame guides
- Zebra
- Waveform
- Safe areas
- Markers
- Vertical flip
- Atomos Calibrator with Display Pro HL and Display Plus HL
- Downscaling to HD and crop
- Interlaced and PSF to progressive
- Anamorphic de-squeeze
With a full suite of Atomos monitoring tools, switching tools, and graphic capabilities, the Shogun AV makes it easy to evaluate exposure, focus, color, and framing with confidence.
- LTC input via BNC
- 3-pin XLR audio input for 2-channel input and output
- 7 RU rackmount size
- Dual 4-pin XLR power inputs for redundant DC and/or battery options
- Remote start/stop trigger via 2.5mm LANC jack on front
- 3.5mm headphone output
- Tally light on the front
| Display | |
| Panel Type | IPS-Type LCD |
| Display Size | 19.00" / 48.3 cm |
| Native Resolution | 3840 x 2160 |
| Aspect Ratio | 16:9 |
| Touchscreen | Yes |
| Maximum Brightness | 1200 nits / cd/m2 |
| Color Support | 1.07 Billion Colors (10-Bit) |
| HDR Support | Yes: Hybrid Log Gamma |
| Color Gamut | 100% Rec. 709 |
| 99% DCI-P3 | |
| 87% Rec. 2020 | |
| 99% NTSC | |
| LUT Support | Yes |
| Image Controls | Anamorphic De-Squeeze, False Color, Focus Peaking, Image Flip, RGB Parade, Vectorscope, Waveform, Zebra |
| Inputs/Outputs | |
| Video I/O | 1x HDMI 2.0 Input |
| 2x BNC (12G-SDI) Input | |
| 2x BNC (3G-SDI) Input | |
| 1x HDMI 2.0 Output | |
| 1x BNC (12G-SDI) Output | |
| 2x USB-C 3.0 / 3.1/3.2 Gen 1 Output | |
| 1x RJ45 (NDI) Input/Output | |
| Embedded Audio | HDMI/SDI |
| Audio I/O | 2x XLR Mic/Line Input |
| 2x XLR Monitor/Line Output | |
| 1x 1/8" / 3.5 mm Headphone Output | |
| Built-In Speaker | No |
| Power I/O | 1x XLR 4-Pin (16.8 VDC) Input |
| Other I/O | 1x BNC (LTC) Input |
| 1x 2.5 mm (LANC) Input/Output | |
| Media/Memory Card Slot | Single Slot: CFexpress Type B [Supports Recording] |
| Wireless | |
| Wi-Fi | No |
| Bluetooth | No |
| Mobile App Compatible | No |
| Format Support | |
| Video Format | HDMI/SDI (8/10-Bit 4:2:2/4:2:0 YCC) |
| 5.7K: 30 | |
| DCI 4K: 60 | |
| UHD 4K: 60 | |
| 1080p: 60 | |
| 1080i: 60/50 | |
| 720p: 60 | |
| HDMI (8/10-Bit 4:2:2/4:2:0 YCC) | |
| DCI 4K | |
| UHD 4K: 60 | |
| 1080p | |
| 1080i: 60/50 | |
| 720p: 60 | |
| Video Signal Conversion | HDMI to SDI |
| SDI to HDMI | |
| Timecode Support | Yes |
| Recording | |
| Pulldown Conversion | 2:2, 3:2 |
| Camera Trigger | SDI, HDMI |
| Pre-Roll Record | 4K: 2 Seconds |
| Full HD: 8 Seconds | |
| Encoding Formats | x |
| ProRes 422, 422 HQ, HQ, LB, LT, Raw, SQ | |
| DNxHD 36, 145, 220x, HQ, HQX, LB, SQ | |
| Maximum Audio Tracks | 12 |
| Closed Caption Support | No |
| Power | |
| Input Power | 12 to 16.8 VDC |
| Battery | No |
| Power Consumption | 75 W |
| General | |
| Environmental Resistance | No |
| Operating Conditions | Up to 104°F / 40°C |
| Material of Construction | Aluminum, Plastic |
| Dimensions | 19 x 12.2 x 2.4" / 482 x 310 x 60 mm |
| Weight | 11.51 lb / 5.22 kg |
