Atomos Shinobi 7 RX
by Atomos
Availability:
7-10 days delivery
SKU
ATOMSHBRX1

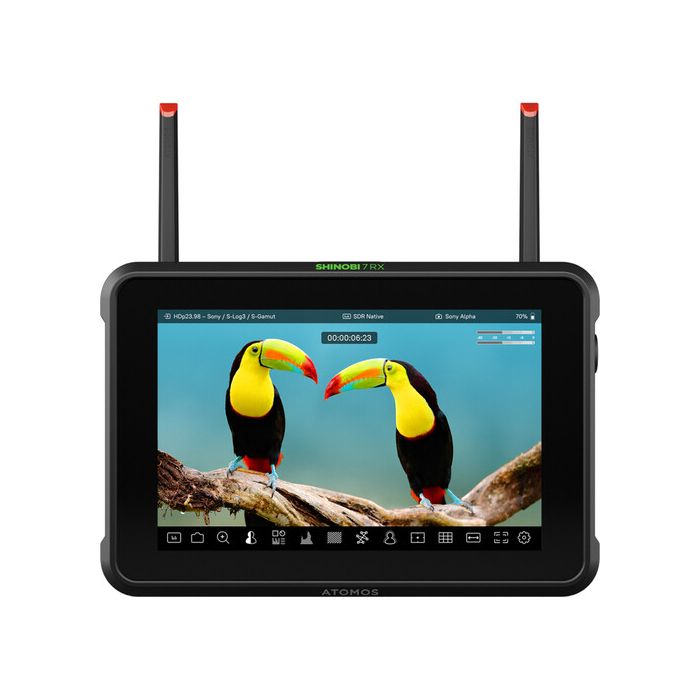

Add a bright, high-resolution on-camera monitor to your live production kit for your focus puller, director, or camera assistant with the Shinobi 7 RX HDMI/SDI HDR On-Camera Monitor/Wireless Receiver from Atomos.
€873.75
€699.00
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Atomos Shinobi 7 RX HDMI/SDI HDR On-Camera Monitor/Wireless Receiver
- 2 x Antenna
- Antenna Tip Set (Back, White, Yellow, Green, Red)
- 2 x Antenna Cap
- USB-C 2.0 Cable (3.3')
Add a bright, high-resolution on-camera monitor to your live production kit for your focus puller, director, or camera assistant with the Shinobi 7 RX HDMI/SDI HDR On-Camera Monitor/Wireless Receiver from Atomos. This 7" high-bright HDR monitor provides the ability to view 4K footage remotely via Wi-Fi while also providing remote focus and camera control in an Atomos TX/RX environment or via wired USB/serial.
7" Daylight Viewable Screen
The Shinobi 7 RX features a 7" IPS LCD 1920 x 1080 screen that is illuminated by a bright 2200 cd/m² LED backlight, making it possible to view in daylight without requiring a hood. Plus, the screen is also color calibrated from the factory to ensure accurate image representation.
Built-In Wi-Fi 6E
The Shinobi 7 RX provides built-in Wi-Fi to pair with an Atomos TX device, and it can even view external RTSP H.264 streams with low-latency wireless under 60ms from up to 984' away.
This allows your crew to move elements on the set freely without losing visual connection.
High-Resolution Connectivity
- Monitor 4K footage in DCI or UHD 4K formats via HDMI 2.0 up to 60 fps and up to 1080p60 via 3G-SDI
- Output signal via HDMI and 3G-SDI loop outputs
- The Shinobi 7 RX features HDMI/SDI cross conversion support
Touch to Focus
While connected to a compatible camera, you can simply tap the Shinobi 7 RX touchscreen for the camera to automatically focus on your point of interest.
Touch to focus takes advantage of camera focus modes such as focus tracking for effortless control.
Power & Versatile USB-C Connection
The back of the monitor features dual NP-F/L-series battery slots for longer shoot durations, and it can also accept optional battery eliminators/dummy batteries. You can also power the monitor via a USB-C PD input via an optional adapter, external battery, or power bank.
In addition to providing power, the USB-C port can provide camera control for supported cameras. The USB-C port can also be used with external calibrators without the need for a computer.
Supported Log Formats
The monitor supports numerous Log formats, including:
- Sony: SLog / SLog2 / SLog3 / HLG
- Canon: C-Log / C-Log2 / C-Log3
- ARRI: Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320 / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600
- Panasonic: V-Log / HLG, JVC J-Log
- RED: RedLogFilm / Log3G10 / Log3G12
- FUJIFILM: F-Log, PQ (HDR10), HLG
- Nikon: N-Log
HDR Monitoring
The monitor supports numerous HDR formats, including:
- BT.2020, DCI P3, DCI-P3 D65, and Rec. 709
- Sony: S-Gamut / S-Gamut3 / S-Gamut3.cine / BT.2020 / Rec. 709
- Canon Cinema: DCI P3 / DCI P3plus / Rec. 709
- Panasonic: V Gamut
- ARRI: ALEXA Wide Gamut
- JVC: LS300
- RED: DragonColor / DragonColor2 / RedColor2 / RedColor3 / RedColor4 / RedWideGamut
Audio Monitoring
Input/output embedded audio via HDMI and SDI, and output audio using the 3.5mm headphone port for convenient audio monitoring. There's also a 3.5mm stereo line audio input to monitor external sound.
Image Tools
The monitor runs the latest AtomOS firmware that features a variety of onscreen analysis tools such as multi-scope views, exposure, framing, focus assist, waveform, RGB parade, and histogram tools.
An SD card slot allows you to load custom 3D LUTs and apply them to both input and output signals, and they can be used with the built-in image tools for exposure control.
Camera Control
The Shinobi 7 RX supports intuitive camera control for Canon, FUJIFILM, Nikon, Panasonic, Sony (via USB-C), and Z CAM E2 (via optional serial cable). Its intuitive interface makes adjusting aperture, shutter speed, and ISO fast and responsive.
Depending on the supported camera, it can control features such as Record Trigger, White Balance, Shutter Speed, Shutter Angle, Aperture, ISO, Camera Overlays, Record Indicator, Touch to Focus, and more.
Calibration
The Shinobi 7 RX monitor can be calibrated with Calibrite Display Pro HL/Plus HL probe, and using the Atomos Calibrator app, for ongoing accurate HDR and Rec. 709 monitoring.
Accurate monitoring ensures reliable results.
Anamorphic De-Squeeze
The Shinobi 7 RX supports anamorphic de-squeeze, allowing you to comfortably view anamorphic footage with a squeeze of 2x, 1.8x, 1.79x, 1.65x, 1.6x, 1.5x, 1.33x, and 1.25x.
| Display | |
| Panel Type | IPS-Type LCD |
| Display Size | 7.0" / 17.8 cm |
| Native Resolution | 1920 x 1200 |
| Aspect Ratio | 0,673611111 |
| Touchscreen | Yes |
| Maximum Brightness | 2200 nits / cd/m2 |
| Color Support | 1.07 Billion Colors (10-Bit) |
| HDR Support | Yes: Advanced HDR |
| Color Gamut | 100% Rec. 709 |
| LUT Support | Yes |
| Image Controls | Anamorphic De-Squeeze, Blue Only, False Color, Focus Peaking, Histogram, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra |
| Inputs/Outputs | |
| Antenna I/O | 2x RP-SMA |
| Video I/O | 1x HDMI 2.0 Input |
| 1x BNC (3G-SDI) Input | |
| 1x HDMI 2.0 Loop Output | |
| 1x BNC (3G-SDI) Output | |
| Embedded Audio | HDMI: 8-Channel |
| SDI: 12-Channel | |
| Audio I/O | 1x 1/8" / 3.5 mm Line Input |
| 1x 1/8" / 3.5 mm Headphone Output | |
| Built-In Speaker | No |
| Power I/O | 1x Barrel (16.8 VDC) Input |
| Other I/O | 1x 2.5 mm (LANC) Output |
| 1x USB-C 3.0 / 3.1/3.2 Gen 1 Input [Shared with Power, Camera Control] | |
| 2x USB-C 3.0 / 3.1/3.2 Gen 1 Output | |
| Media/Memory Card Slot | Single Slot: SD/SDHC/SDXC [LUT/Firmware Update Only] |
| Wireless | |
| Wireless Range | 984.3' / 300 m |
| Frequency Range | 5 GHz |
| Latency | 60 ms |
| Wi-Fi | Wi-Fi 6E (802.11ax) |
| Bluetooth | No |
| Mobile App Compatible | No |
| Format Support | |
| Video Format | HDMI (8/10-Bit 4:2:2) |
| DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 | |
| UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 | |
| DCI 2K: 60/59.94/50/30/29.97/25/24/23.98 | |
| 1080p: 60/59.94/50/29.97/25/24/23.98 | |
| 1080i: 60/59.94/50 | |
| 720p: 60/59.94/50 | |
| SDI (8/10-Bit 4:2:2) | |
| DCI 2K: 60/59.94/50/30/29.97/25/24/23.98 | |
| 1080p: 60/59.94/50/30/25/24/23.98 | |
| 1080i: 60/59.94/50 | |
| 720p: 60/59.94/50 | |
| Video Signal Conversion | HDMI to SDI |
| 1080p | |
| SDI to HDMI | |
| 1080p | |
| Audio Format | 8-Channel 24-Bit |
| Power | |
| Input Power | 6.2 to 16.8 VDC |
| Battery | 2x L-Series Mount on Fixed Plate |
| Power Consumption | 13 W (Maximum) |
| Mounting | |
| Tripod/Accessory Mounting | Top |
| 1x 1/4"-20 Female | |
| Bottom | |
| 1x 1/4"-20 Female | |
| General | |
| Environmental Resistance | No |
| Operating Conditions | Up to 104°F / 40°C |
| Material of Construction | Plastic |
| Dimensions | 7.8 x 5.2 x 1.5" / 198 x 133 x 39 mm |
| Weight | 1.3 lb / 580.00 g |
