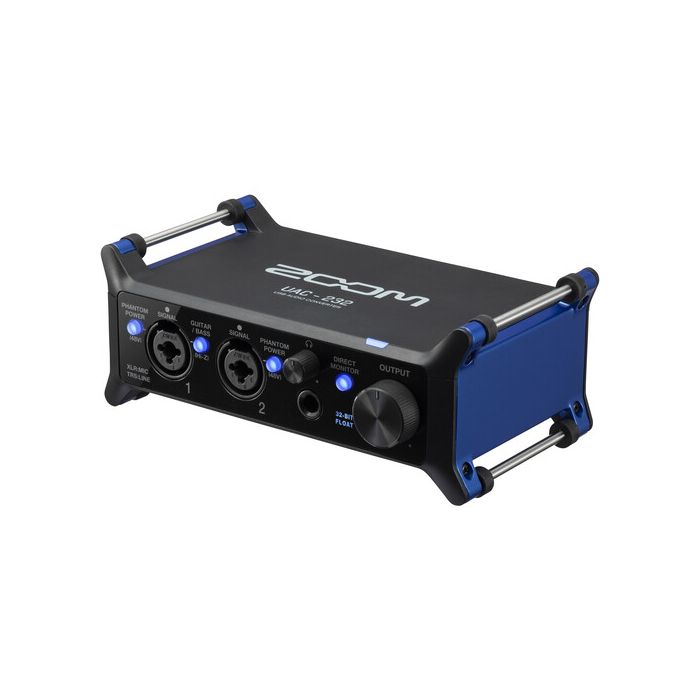

Zoom UAC-232 32-Bit Float Audio Interface
by ZoomThe ZOOM UAC-232 USB Audio Converter is the first dedicated 32-bit float audio interface, designed for creators who demand more quality in their productions.
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- UAC-232 USB Audio Converter
- USB-C cable
- Flat cable fasteners (x2)
- Quick Tour
The ZOOM UAC-232 USB Audio Converter is the first dedicated 32-bit float audio interface, designed for creators who demand more quality in their productions.
- Dual AD circuitry with 32-bit float recording technology
- High-quality mic preamps, same as the Zoom F6
- 2x XLR/TRS combo inputs
- Headphone output and 2x TRS main outputs
- High-power headphone outputs (100 mW)
- Records up to 192 kHz sample rate
- Compatible with Windows, Mac, and iOS devices (Android not supported)
- Zoom Mix Control software mixer
- MUSIC and STREAMING modes available via the software to optimize I/O
- Loopback available via the software
- Direct Monitor switch for latency-free recording
- Vertical or horizontal use
- MIDI IN/OUT for connection to external MIDI equipment
- Bus-powered operation (separate power required for Lightenting-enabled iOS devices)
No Need to Set Gain
Whether you're recording in the studio or on stage, sound levels can fluctuate. The UAC-232’s 32-bit float technology captures clip-free, low-noise recordings without the need to set gain.
For Music
Whether you’re recording or streaming live, with 32-bit float technology you don’t have to worry about getting the ideal input gain or monitoring your levels.
For Podcasts & Voiceovers
For podcasters and voiceover artists, 32-bit float ensures full quality audio for the entire dynamic range of a performance. It also protects against clipping when levels are not being monitored.
More Control
The UAC-232 Mix Control software allows you to modify I/O routing, activate loopback, and control input and monitoring levels. You can also activate Music mode to route to your DAW or Streaming mode combining all inputs into a single signal for streaming software.
Loopback
The Loopback function combines the input audio with playback from your computer and routes it to your software. Perfect for adding background music to your stream or singing live with an instrumental track.
Latency-Free Monitoring
Use the Direct Monitor switch to send the input signal directly to your headphones while routing the same signal to your DAW or streaming software.
Mix Control allows you to adjust volume and pan for your direct monitor feed.
The Connections you Need
Inputs
The UAC-232 USB Audio Converter features two XLR/TRS combo inputs for mic or line level with +48V phantom power available for condenser microphones. Use the Guitar/Bass button to activate Hi-Z for recording guitar directly.
Outputs
To listen on studio monitors, the UAC-232 includes two TRS main outputs with volume control.
POWERFUL HEADPHONE OUTPUT
Monitor louder and clearer with the 100 milliwatt headphone output. Enough power to drive the most demanding headphones with no distortion.
Built-In MIDI
The MIDI in/out allows you to connect to external MIDI gear such as drum machines, synths and keyboards.
Compact Design
The UAC-232 Audio Converter can be placed anywhere. Set it up vertically, horizontally or mount it to a mic stand with the included flat cable straps.
Compatibility
Connect the UAC-232 via USB when recording and streaming on PC and Mac with software like Cubase, Pro Tools, OBS and more.
Record and stream in 24-bit with iOS devices using Apps such as Garage Band, YouTube, and instagram.
*Bus powered with PC, Mac and use external power when working with a lightning enable iOS device
| Input and Output Channels | |
| NUMBER OF INPUT CHANNELS | |
| Mono (MIC/LINE) | 2 |
| NUMBER OF OUTPUT CHANNELS | |
| Stereo (TRS) | 1 |
| Stereo (headphone) | 1 |
| Connectors | |
| INPUTS 1-2 | |
| Type | XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT) |
| Input impedance | XLR: 2.7 kΩ TRS: 4 kΩ/1 MΩ (when Hi-Z on) |
| Maximum input level | XLR: +6 dBu TRS: +24 dBu / +11.5 dBu (when Hi-Z on) |
| Phantom power | +48 V |
| OUTPUTS | |
| Type | TRS phone jacks (balanced) |
| Maximum output level | +18 dBu (at 0 dBFS) |
| Output impedance | 100 Ω |
| HEADPHONES | |
| Type | Standard stereo phone jack 100 mW + 100 mW (63 Ω load) |
| Output impedance | 12 Ω |
| MIDI | IN/OUT (5-pin DIN connectors) |
| USB | USB Type-C (audio interface function) • Use a USB cable that supports data transfer. USB bus power is supported. |
| DC 5V | USB Type-C (for power supply) |
| Frequency Response | |
| INPUTS | 44.1 kHz: 20 Hz – 20 kHz, +0.1 dB / −0.2 dB |
| 192 kHz: 20 Hz – 80 kHz, +0.1 dB / −0.2 dB | |
| OUTPUTS | 44.1 kHz: 20 Hz – 20 kHz, +0.0 dB / −0.1 dB |
| 192 kHz: 20 Hz – 80 kHz, +0.0 dB / −1.0 dB | |
| HEADPHONES | 44.1 kHz: 20 Hz – 20 kHz, +0.0 dB / −0.5 dB |
| 192 kHz: 20 Hz – 80 kHz, +0.0 dB / −1.0 dB | |
| Equivalent Input Noise | –127 dBu or less (IHF-A) |
| Audio Interface | |
| INPUT AND OUTPUT CHANNELS | Recording: 2 channels Playback: 2 channels |
| SAMPLING FREQUENCIES | 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz |
| BIT DEPTH | 32-bit float / 24-bit |
| INTERFACE | USB 2.0 |
| CLASS | USB Audio Class 2.0 |
| POWER | AC adapter (ZOOM AD-17): DC 5 V/1 A • USB bus power is supported. |
| RATED CURRENT | USB / AC adapter (5 V): 293 mA |
| POWER CONSUMPTION | 5 W maximum |
| DIMENSIONS | 164 mm (W) × 105.5 mm (D) × 65 mm (H) |
| WEIGHT (UNIT ONLY) | 355 g |
