Voigtlander Heliar 40mm F2.8 Aspherical Black M39 (L-Mount)
by VoigtlanderThe 40 mm F2.8 Heliar aspherical VM / L* (M39) is a compact and universally applicable lens with a lens configuration of five elements in three groups, based on the traditional Voigtländer Heliar design.
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Voigtlander Heliar 40mm F2.8 Aspherical Black M39 (L-Mount)
- Lens hood,
- Lens cap,
- Rear cap
It is available with two connections: the VM connection and with M39 screw thread (here called Voigtländer L*).
In addition to the ultra-compact design, a highlight is the elegant and precisely manufactured focusing lever, which can also be fixed in place using a locking mechanism. With an overall length of 21.2 mm (VM bayonet mount) or 20.2 mm (L* screw mount), the lens itself remains pleasantly compact on the camera and does not protrude into the viewfinder image. The imaging performance is impressive even at open aperture with very good sharpness right to the edges, the shortest shooting distance is 0.7 m. Retro-style on the outside, but equipped with the latest optical technology on the inside, this is how our new 40 mm F2.8 Heliar aspherical VM / L* (M39) presents itself!
The weight is 110 g (L* /M39 connection).
A lens hood and a snap-on cap are included in the scope of delivery.

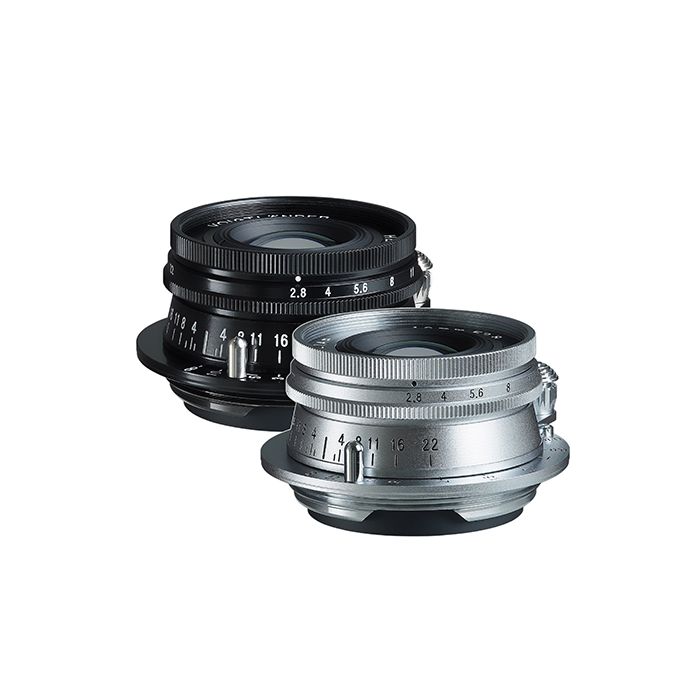

Both connection versions are available in black or silver (lens hood and slip-on cover only available in black – also for the silver version).
Voigtländer L-mount has nothing in common with the L-mount from Leica, Sigma, Panasonic and Leitz Cine lens!
| Technical data L-Mount (M39): | |
| Focal length | 40 mm |
| Mount | L-screw thread (M39) |
| Light intensity | 1:2.8 |
| Smallest aperture | F 22 |
| Optical construction | 5 lenses in 3 groups |
| Angle of view | 57.0° |
| Aperture blades | 10 |
| Minimum distance | 0.7 m |
| Rangefinder coupling | ∞ ~ 0.7 m (depending on camera) |
| Filter size | Ø 34 mm |
| Maximum diameter | 47.0 mm |
| Length | 20.2 mm |
| Weight | 110 g |
| Colors | black |
