Viltrox DC-550 Pro II Monitor
by Viltrox
Availability:
14-20 days delivery
SKU
VL-DC-550Pro_II

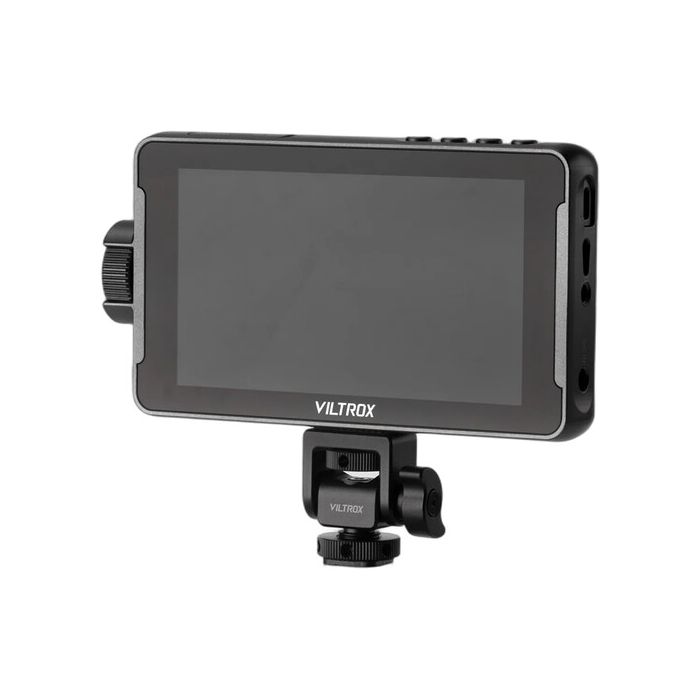

The lightweight DC-550 PRO II 5.5" Touchscreen HD Monitor from Viltrox lets you view your camera's image on a bright, sharp 5.5" display. The DC-550 PRO II supports up to UHD 4K60 video input and can send the signal through an HDMI loop-through output.
€279.00
€223.20
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Viltrox DC-550 PRO II 5.5" Touchscreen HD Monitor
- Folding Sun Hood
- Shoe Mount Adapter
Upgraded Onboard Monitor
The lightweight DC-550 PRO II 5.5" Touchscreen HD Monitor from Viltrox lets you view your camera's image on a bright, sharp 5.5" display. The DC-550 PRO II supports up to UHD 4K60 video input and can send the signal through an HDMI loop-through output. This PRO II model features histograms, positionable waveforms, a cooling fan, 1400 cd/m² brightness, and 1000:1 contrast, making it suitable for outdoor use.
Full Touchscreen Control and Tools
The DC-550 PRO II features a 1920 x 1080 touchscreen display that supports live view from your camera, and it provides image tools such as peaking, color temperature, tone, pixel-to-pixel zoom, brightness, contrast, and custom anamorphic de-squeeze ratios. You can monitor the audio via its built-in speaker or 3.5mm headphone port. The waveforms now feature repositioning for easier viewing and three zoom levels.
Power Options
At the rear of the monitor, a built-in L-series battery plate enables you to power the monitor with an L-series battery, or you can power it with a separately available AC adapter.
Real-Time LUT Preview
- The DC-550 PRO II offers real-time LUTE preview.
- This enables you to preview your color grading directly on the screen.
- Easily switch between cinematic looks and warm and cool tones.
| Display | |
| Panel Type | IPS-Type LCD |
| Display Size | 5.5" / 14.0 cm |
| Native Resolution | 1920 x 1080 |
| Aspect Ratio | 16:09 |
| Viewing Angle | 160° |
| Touchscreen | No |
| Maximum Brightness | 1400 nits / cd/m2 |
| Contrast Ratio | 1000:01:00 |
| HDR Support | No |
| Color Gamut | 100% Rec. 709 |
| LUT Support | Yes |
| Image Controls | Color Temperature Selection, False Color, Focus Peaking, Histogram, Image Flip, Image Freeze, Pixel-to-Pixel Zoom, RGB Parade, Waveform |
| Inputs/Outputs | |
| Video I/O | 1x HDMI 2.0 Input |
| 1x HDMI 2.0 Output | |
| Embedded Audio | HDMI Input |
| Audio I/O | 1x 1/8" / 3.5 mm Headphone Input |
| Built-In Speaker | No |
| Power I/O | 1x Barrel (12 VDC / 2 A) Input |
| 1x USB-C (5 VDC / 3 A) Input | |
| Other I/O | No |
| Media/Memory Card Slot | Single Slot: SD (Unspecified Type) [LUT Upload Only] |
| Wireless | |
| Wireless | No |
| Wi-Fi | No |
| Bluetooth | No |
| Mobile App Compatible | No |
| Format Support | |
| Video Format | HDMI |
| DCI 4K: 60/30/25/24 | |
| UHD 4K: 60/30/25/24 | |
| 1080p | |
| Power | |
| Input Power | 12 to 18 VDC at 2 A |
| Battery | 1x L-Series Mount on Fixed Plate |
| Mounting | |
| Tripod/Accessory Mounting | Bottom/Right |
| 1x 1/4"-20 Female | |
| General | |
| Environmental Resistance | No |
| Operating Conditions | 32 to 104°F / 0 to 40°C |
| Storage Conditions | -4 to 140°F / -20 to 60°C |
| Material of Construction | Aluminum |
| Dimensions | 6.5 x 3.6 x 1.1" / 16.5 x 9.1 x 2.9 cm |
| Weight | 9.0 oz / 254.00 g |
