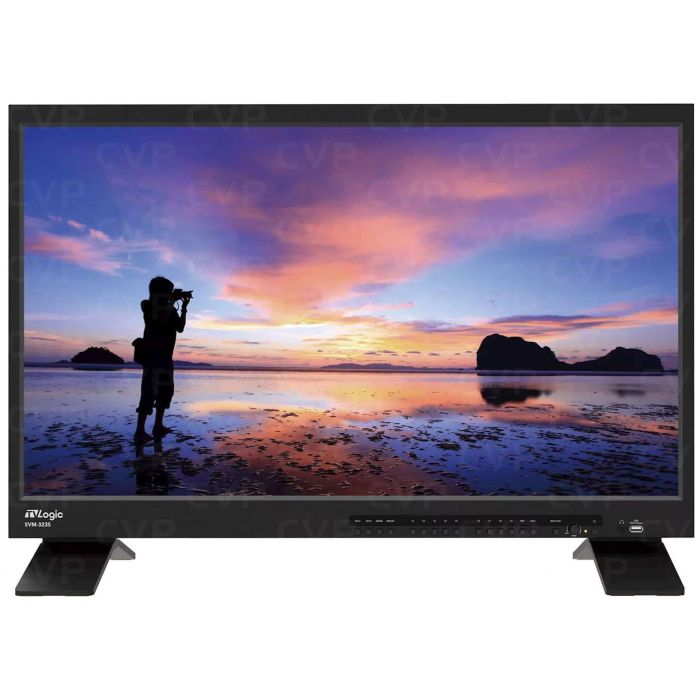

TVLogic SVM-323S 31.5'' 12G-SDI with Full HD LCD Monitor
by TVLogic2 x 12G-SDI Input and Loopout
Dual SFP Input
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- TVLogic SVM-323S 31.5" 12G-SDI with Full HD LCD Monitor
TVLogic SVM-323S is a 31.5" Full HD monitor with a display resolution of 1920 x 1080 and support for 1.073 billion colours. It features 2 x 12G-SDI inputs and loopout, dual SFP input, HDMI 1.4 input, and processed monitor output. The monitor also supports HDR (PQ, HLG, S-LOG3), various colour spaces, custom 3D LUT import, built-in camera LUTs, waveform, vector scope, histogram, audio level meter, audio phase meter, and colour settings save & apply.
TVLogics SVM-323S reflects their commitment to cutting-edge broadcast monitoring solutions, with precise image reproduction, high signal integrity, and robust support for 12G-SDI workflows. The monitor also features auto detection of SDI payload ID, making it a versatile and advanced option for professional broadcast monitoring needs.
The SVM-S is an 31.5” Full HD monitor that delivers precise image reproduction, high signal integrity, and robust support for 12G-SDI workflows, reflecting TVLogic’s continued commitment to cutting-edge broadcast monitoring solutions.
| Size | 31.5” |
| Resolution |
1920 x 1080 (16:9)
|
| Pixel Pitch |
0.363(H) x 0.363(V) mm
|
| Color Depth | 16.7M Colors |
| Viewing Angle |
178°(H) / 178°(V)
|
| Brightness | 400cd/m2 |
| Contrast Ratio | 1200:01:00 |
| Display Area |
698(H) x 393(V) mm
|
| Input | |
| 2 x BNC |
12G/6G/3G/HD/SD-SDI A/B Input
|
| 3 x BNC |
YPbPr, CVBS Input
|
| 1 x HDMI | HDMI Input |
| 2 x SFP |
SFP A/B Channel Input
|
| 1 x BNC | Reference Input |
| Output | |
| 2 x BNC |
12G/6G/3G/HD/SD-SDI A/B Channel Output
|
| 3 x BNC |
YPbPr, CVBS Output
|
| 1 x BNC |
Processed Output
|
|
SDI Input Signal Formats
|
|
| SMPTE ST 2082 |
2160(60/50/30/25/24p)
|
| SMPTE ST 2081 | 2160(30/25/24p) |
| SMPTE ST 2036-1:2009 |
2160(23.98/24/25/29.97/30/50/59.94/60p)
|
| SMPTE-425M-A/B |
1080p(60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)
|
|
1080i(60/59.94/50)
|
|
| SMPTE-274M |
1080i(60/59.94/50)
|
|
1080p(30/29.97/25/24/24sF/23.98/23.98sF)
|
|
| SMPTE-296M |
720p(60/59.94/50)
|
| SMPTE-260M | 1035i(60/59.94) |
| SMPTE-125M | 480i(59.94) |
| ITU-R BT.656 | 576i(50) |
| SMPTE ST 2048-2:2011 |
2048x1080(23.98/24/25/29.97/30p/psf, 47.95/48/50/59.94/60p)
|
|
Remote Control & Update
|
|
| 1 x LAN |
RJ-45 Input (Ethernet), Firmware Update & Remote Control
|
| 1 x REMOTE |
RJ-45 Input, GPI Control
|
| 2 x RS-422 |
RJ-45 Input & Output, Monitor Control by TVLogic Protocol or TSL Protocol
|
| 1 x USB |
USB A type, Firmware Update
|
| General | |
| Audio In |
Analog Stereo (Phone Jack)
|
| Audio Out |
Internal Stereo Speakers, Analog Stereo (Phone Jack)
|
| Power |
AC100240V(50-60Hz)
|
| Power Consumption | TBD |
| Operating Temperature |
0°C to 35°C (32°F to 95°F)
|
| Storage Temperature |
-20°C to 60°C (-4°F to 140°F)
|
| Dimensions |
Main Body: 733.4 x 464.1 x 84.7 (mm)
|
|
28.87 x 18.27 x 3.33 (inch)
|
|
|
With Stand: 733.4 x 512.6 x 245 (mm)
|
|
|
28.87 x 20.18 x 9.64 (inch)
|
|
|
Shipping Box: 920 x 360 x 790 mm
|
|
|
36.22 x 14.17 x 31.10 inch
|
|
|
Weight (with stand): 13.6kg / 29.98lbs
|
|
| Basic Accessories |
AC Power Cord, Stand, Handle
|
| Optional Accessories | – |
