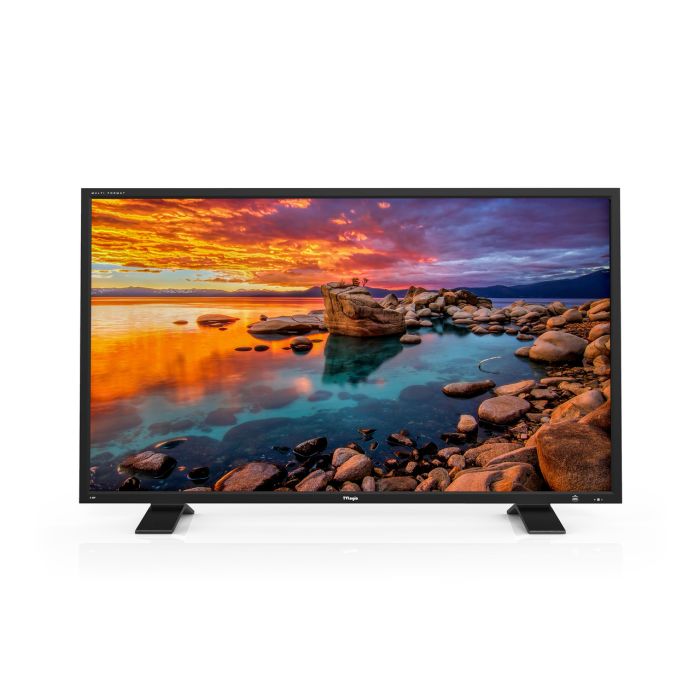

TVLogic S-55P 55'' FullHD Studio wall monitor
by TVLogic- PBP(Picture by Picture) - Support displaying multiple inputs on the screen at the same time.
- Time Code Display - Displays the Timecode information on the screen.
- User Aspect - Adjusts the Width /Height display ratio.
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- S-55P Monitor
- Power Cable
- Stand
The S-55P is Full HD Studio Wall monitor with high contrast ratio and wide viewing angle. It supports various video formats including 3G/HD-SDI, HDMI and DVI. The SFP interface can be supported for versatility. The S-series provides network control by Ember+ protocol and HDR emulation function with HDR EOTFs of PQ, HLG and SLog3.
HDR Emulation
A true HDR monitor must employ a special display panel with high dynamic range and a wide colour gamut, along with being calibrated for PQ and HLG. For example, the LUM-310X (dual layer LCD system) and LUM-310R (LCD with local dimming backlight system) are capable of reproducing a peak luminance of 1,000 nit and 2,000 nit respectively, and a contrast ratio of 1,000,000 : 1; in addition, they cover 99% of the DCI colour gamut.
1:1 Pixel Mapping Modes for SD/HD
Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.
Audio Level Meter Display
Displays the level of the embedded sound signal together with the video signal input through the terminal such as SDI or HDMI.
Custom 3D LUT Import
Allows you to load your making 3D-LUT files at NLE software like Davinci Resolve by USB flash memory and displays your LUT on VFM-055A or F-7H. Once you synchronize LUTs in the monitor, you will easily change them on production.
Waveform/Vector Scope
Waveform Y: Displays the Luma(Y’), Cb, Cr component of the input signal into waveform.Vector Scope: Displays the colour components ‘B-Y’ and ‘R-Y’of the input signals onto the X-Y axis.
| Size | 55" |
| Resolution | 1920 X 1080 (16:09) |
| Pixel Pitch | 0.530mm |
| Colour Depth | 1.07B |
| Viewing Angle | 178°(H) / 178°(V) |
| Luminance | 5450cd/m2 |
| Contrast Ratio | 1,200:1 |
| Display Area | 1209(H) × 680(V) mm |
| Inputs | 2x BNC: 3G-SDI A/B Channel Input |
| 1x HDMI: HDMI Input | |
| 1x DVI: DVI Input | |
| Outputs | 2x BNC:3G-SDI Output |
| Input Signal | 3G SDI: 2.970Gbps |
| HD SDI: 1.485Gbps | |
| SD SDI: 270Mbps | |
| HDMI: 480i/480p/576i/576p/720p/1080i/1080p/640x480/ | |
| 720x400/800x600/1024x768/1600x1200 | |
| DVI Analog: 640x480/720x400/800x600/1024x768/1600x1200/1920x1080 | |
| DVI DP: 640x480/720x400/800x600/1024x768/1600x1200/1920x1080 | |
| DVI DH: 1080p (24/25/30/50/60)/1080i(50/60)/720p(50/60)/ | |
| 480i(60)/480p(60)/576i(50)/576p(50) | |
| SDI Input Signal Formats | SMPTE 425M-A/B: 1080p |
| (60/59.94/50/30/29.97/25/24/23.98/30sF/ 29.97sF/25sF/24sF/23.98sF) /1080i (60/59.94/50) | |
| SMPTE 372: Dual HD-SDI YCbCr(4:2:2) 1080p (60/59.94/50) Dual HD-SDI | |
| YCbCr/RGB(4:4:4) 1080i (60/59.94/50) 1080p (30/29.97/25/24/24sF/23.98/23.98sF) | |
| SMPTE 296: 720p (60/59.94/50) | |
| SMPTE 274: 1080i (60 / 59.94 / 50) 1080p (30/29.97/25/24/24sF/23.98/23.98sF) | |
| SMPTE 260: 1035i (60/59.94) | |
| SMPTE 125: 480i (59.94) | |
| ITU-R BT.656: 576i (50) | |
| 2K Format: 2048 x 1080p (24/24sF/23.98/23.98sF) | |
| Audio In | Embedded Audio/Analog Stereo (Phone Jack) |
| FPGA Functions | 1:1 Pixel Mapping Modes for SD/HD, 3G-SDI Level A/B, Audio Level Meter Display, |
| Blue Only, Focus Assist, H/V Delay, Key Lock, Luma(Y') Zone Check, Marker, Mono, | |
| Range Error, Time Code Display, UMD, User Aspect, Various Scan Modes, Waveform/Vector | |
| Closed Caption | CC-608 ANC, CC-608 LINE 21, CC-708, CC-KOR |
| Calibration | TVLogic Colour Calibration Utility, 3D LUT & Adjustable Gamma, 3rd Party 3D LUT Import |
| Other Functions | REMOTE: GPI (RJ45) |
| REMOTE: TVLogic’s specification | |
| USB: Firmware update by USB memory stick | |
| Ethernet: Ethernet Control support |
