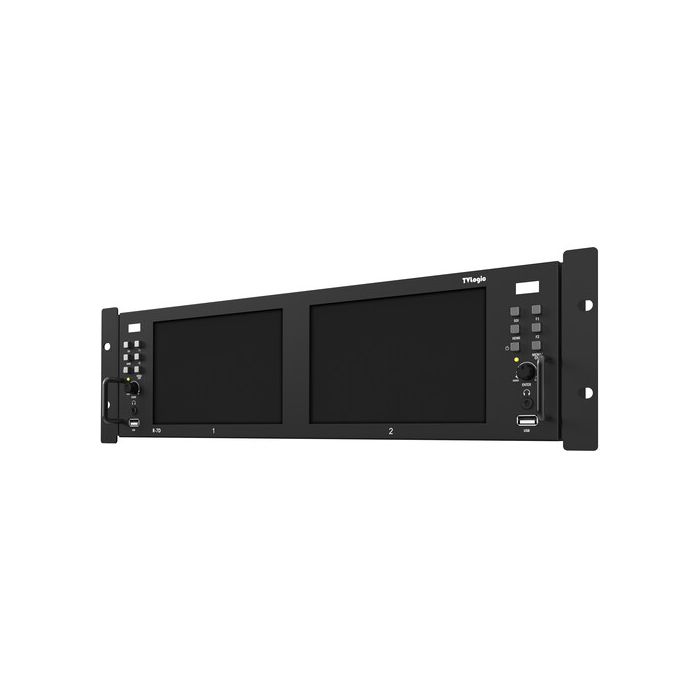

TVLogic R-7D Dual LCD UHD-4K Ready Rack Mount
by TVLogic
Availability:
7-10 days delivery
SKU
TVL-R-7D
Two 7" 1920 x 1200 IPS Displays
12G-SDI, 3G-SDI & HDMI Inputs/Outputs
€5,493.75
€4,395.00
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- TVLogic Dual 7" LCD UHD 4K Ready Rackmount Monitors
- Power Cable
- Power Adapter
- Rackmount Kit
Featuring two 7" displays in a slim 3 RU design, the Dual 7" LCD UHD 4K Ready Rackmount Monitors from TVLogic are designed to provide efficient broadcast monitoring of up to two 1080p60 signals. The R-7D has 12G-SDI, 3G-SDI, and HDMI inputs and outputs per display as well as 3.5mm headphone output and a USB input for firmware and 3D LUT import for each panel. Each 7" display features a 1920 x 1200 resolution, a wide 160° viewing angle, and they can monitor up to UHD 4K60 video resolutions.
Built-in image analysis functions include HDR emulation, 1:1 scan modes, waveform, vectorscope, delay, zone check, a 16-channel audio meter, and timecode display. A 4-pin XLR power input is provided on the rear, and a 12 VDC power adapter is included. A rackmount kit is included to mount the dual monitors onto a standard rack.
Key Features
- Two 7" 1920 x 1200 resolution displays in an ultra-slim 3 RU design
- 12G-SDI, 3G-SDI, and HDMI/O
- Up to UHD 4K60 signal input
- 160° viewing angle
- 500 cd/m² brightness
- 1200:1 contrast ratio
- Headphone outputs
- USB inputs for 3D LUT import
- 4-pin XLR power input
- 12 VDC power adapter included
- Rackmount kit included
Image Analysis Tools
- 1:1 Scan Modes for HD/SD
- HDR emulation (PQ, HLG, SLog 3)
- Waveform
- Vectorscope
- Audio level meter
- H/V delay
- Luma zone check
- Timecode display
- Customizable aspect ratios
- Scan modes
| Display Size | 7.0" / 17.8 cm |
| Native Resolution | 1900 x 1200 |
| Touchscreen | No |
| HDR Support |
Yes: Hybrid Log Gamma
|
| Video I/O |
1x BNC (12G-SDI) Input
|
|
1x BNC (3G-SDI) Input
|
|
|
1x HDMI (Unspecified Signal) Input
|
|
|
1x BNC (12G-SDI) Loop Output
|
|
|
1x BNC (3G-SDI) Loop Output
|
|
| Show Less | |
| Media/Memory Card Slot | No |
| Video Format | HDMI/SDI |
|
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
|
|
|
DCI 2K: 60/59.94/50/30/29.97/25/24/23.98
|
|
|
1080PsF: 30/29.97/25/24/23.98
|
|
|
1080p: 60/59.94/50/30/29.97/25/24/23.98
|
|
|
720p: 60/59.94/50
|
|
| 576i: 50 | |
| 480i: 59.94 | |
| Show Less | |
| Battery | No |
| Power Consumption | 22 W |
| Display | |
| Panel Type | LCD |
| Display Size | 7.0" / 17.8 cm |
| Native Resolution | 1900 x 1200 |
| Aspect Ratio | 16:10 |
| Viewing Angle | Horizontal: 160° |
| Vertical: 160° | |
| Touchscreen | No |
| Maximum Brightness | 500 nits / cd/m2 |
| Contrast Ratio | 1200:01:00 |
| Color Support |
16.7 Million Colors (6-Bit+FRC)
|
| HDR Support |
Yes: Hybrid Log Gamma
|
| Image Controls |
Check Field, Customizable Aspect Ratios, Vectorscope, Waveform
|
| Inputs/Outputs | |
| Video I/O |
1x BNC (12G-SDI) Input
|
|
1x BNC (3G-SDI) Input
|
|
|
1x HDMI (Unspecified Signal) Input
|
|
|
1x BNC (12G-SDI) Loop Output
|
|
|
1x BNC (3G-SDI) Loop Output
|
|
| Embedded Audio | HDMI/SDI |
| Audio I/O |
2x 1/8" / 3.5 mm Headphone Output
|
| Built-In Speaker | No |
| Power I/O |
1x XLR 4-Pin (1.85 A / 12 VDC) Input
|
| Other I/O |
2x USB-A 2.0 Input
|
| Media/Memory Card Slot | No |
| Wireless | |
| Wi-Fi | No |
| Bluetooth | No |
| Mobile App Compatible | No |
| Format Support | |
| Video Format | HDMI/SDI |
|
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
|
|
|
DCI 2K: 60/59.94/50/30/29.97/25/24/23.98
|
|
|
1080PsF: 30/29.97/25/24/23.98
|
|
|
1080p: 60/59.94/50/30/29.97/25/24/23.98
|
|
|
720p: 60/59.94/50
|
|
| 576i: 50 | |
| 480i: 59.94 | |
| Power | |
| Input Power |
12 VDC at 1.85 A
|
| Battery | No |
| Power Consumption | 22 W |
| Mounting | |
| Rack Form Factor | 3 U |
| General | |
| Operating Conditions |
32 to 104°F / 0 to 40°C
|
| Storage Conditions |
-4 to 140°F / -20 to 60°C
|
| Dimensions |
16.9 x 5.2 x 2" / 430 x 132 x 50.5 mm (Excluding Bracket)
|
|
18.9 x 5.2 x 2.9" / 480.8 x 132 x 73 mm (Including Bracket)
|
|
| Weight | 5.42 lb / 2.46 kg |
| Packaging Info | |
| Package Weight | 8.615 lb |
| Box Dimensions (LxWxH) |
22.1 x 11.2 x 7.1"
|
