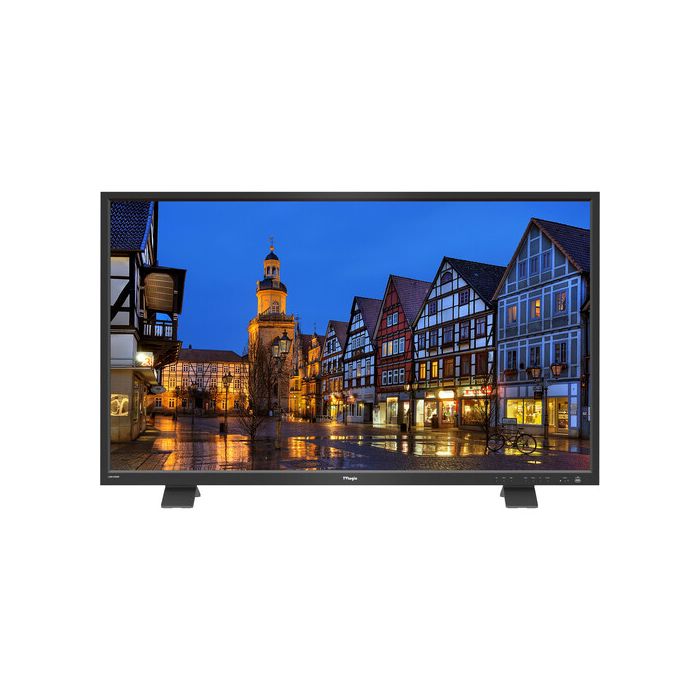

TVLogic LUM-550M3 55'' True UHD 4K LCD Monitor
by TVLogic54.6" UHD 4K LCD Monitor
4 x SDI Inputs, 1 x HDMI Output
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- TVLogic LUM-550M3 54.6" UHD 4K SDI/HDMI LCD Monitor
- AC Power Cable
- Table Stand
- IR Remote
- Carrying Case
Take 12G-SDI, 3G-SDI, and HDMI video sources up to UHD 4K and output them to the LUM-550M3 54.6" UHD 4K SDI/HDMI LCD Monitor from TVLogic with up to four SDI sources for monitoring in the field. The SDI ports on the monitor, four outputs and four inputs, can support either 12G-SDI or 3G-SDI video. The 12G-SDI ports can perform as single-link connections, while the 3G-SDI ports can perform in quad-link configurations. The monitor features camera LUTs and custom 3D LUT imports for color customization.
The LUM-550M3 has a horizontal viewing angle of 178° and a maximum white brightness of 700 cd/m² for increased visibility. Onboard button controls allow you to adjust various image monitoring parameters from waveform to closed captioning. Control can be achieved via the onboard buttons or using the IR remote control.
Features at a Glance
- HDR monitoring with PQ, HLG, SLOG3, and EOTF gamma
- Select color standards among HD, UHD, DCI-P3, PQ, Dolby PQ, HLG, and SLOG3
- Electrical-Electrical Transfer Function to roll off highlights and shadows to balance the image
- Supports custom 3D LUT import
- Waveform and vectorscope
Other Video Assist Functions
- Audio level meter
- Camera LUTs (ARRI, Sony, Canon, RED)
- Markers
- Timecode display
- Closed caption
| Display Size | 54.6" / 138.7 cm |
| Native Resolution | 3840 x 2160 |
| Touchscreen | No |
| HDR Support | Yes |
| Video I/O |
1x HDMI 2.0 Input
|
|
2x BNC (12G-SDI) Input
|
|
|
2x BNC (12G-SDI) Output
|
|
|
2x BNC (3G-SDI) Input
|
|
|
2x BNC (3G-SDI) Output
|
|
| Show Less | |
| Media/Memory Card Slot | No |
| Video Format | SDI |
|
DCI 4K: 60/59.94/50
|
|
|
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
|
|
|
1080p: 60/59.94/50/30/29.97/25/24/23.98
|
|
|
1080i: 60/59.94/50
|
|
|
720p: 60/59.94/50
|
|
| 576i: 50 | |
| 480i: 59.94 | |
|
HDMI (4:4:4 RGB, YCC)
|
|
|
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
|
|
|
1080p: 60/59.94/50/30/29.97/25/24/23.98
|
|
|
1080i: 60/59.94/50
|
|
|
720p: 60/59.94/50
|
|
| Show Less | |
| Battery | No |
| Power Consumption | 150 W |
| Display | |
| Panel Type | LCD |
| Display Size | 54.6" / 138.7 cm |
| Native Resolution | 3840 x 2160 |
| Aspect Ratio | 16:09:00 |
| Viewing Angle | Horizontal: 178° |
| Vertical: 178° | |
| Touchscreen | No |
| Maximum Brightness | 700 nits / cd/m2 |
| Contrast Ratio | 1100:01:00 |
| Color Support |
1.07 Billion Colors (10-Bit)
|
| HDR Support | Yes |
| Image Controls |
Vectorscope, Waveform
|
| Inputs/Outputs | |
| Video I/O |
1x HDMI 2.0 Input
|
|
2x BNC (12G-SDI) Input
|
|
|
2x BNC (12G-SDI) Output
|
|
|
2x BNC (3G-SDI) Input
|
|
|
2x BNC (3G-SDI) Output
|
|
| Embedded Audio | SDI |
| Audio I/O |
1x 1/8" / 3.5 mm Output
|
| Built-In Speaker | No |
| Media/Memory Card Slot | No |
| Wireless | |
| Wi-Fi | No |
| Bluetooth | No |
| Mobile App Compatible | No |
| Format Support | |
| Video Format | SDI |
|
DCI 4K: 60/59.94/50
|
|
|
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
|
|
|
1080p: 60/59.94/50/30/29.97/25/24/23.98
|
|
|
1080i: 60/59.94/50
|
|
|
720p: 60/59.94/50
|
|
| 576i: 50 | |
| 480i: 59.94 | |
|
HDMI (4:4:4 RGB, YCC)
|
|
|
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
|
|
|
1080p: 60/59.94/50/30/29.97/25/24/23.98
|
|
|
1080i: 60/59.94/50
|
|
|
720p: 60/59.94/50
|
|
| Gamma Curve |
ARRI Log C, Canon Log, Sony S-Log, Sony S-Log 2, Sony S-Log 3
|
| Power | |
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Battery | No |
| Power Consumption | 150 W |
| General | |
| Dimensions |
49.7 x 29.4 x 3.2" / 126.2 x 74.6 x 8.14 cm
|
|
5 x 3.13 x 1" / 126.2 x 79.45 x 24.5 mm
|
|
| Weight | 78.9 lb / 35.8 kg |
| Packaging Info | |
| Package Weight | 101 lb |
| Box Dimensions (LxWxH) | 55 x 36 x 15" |
