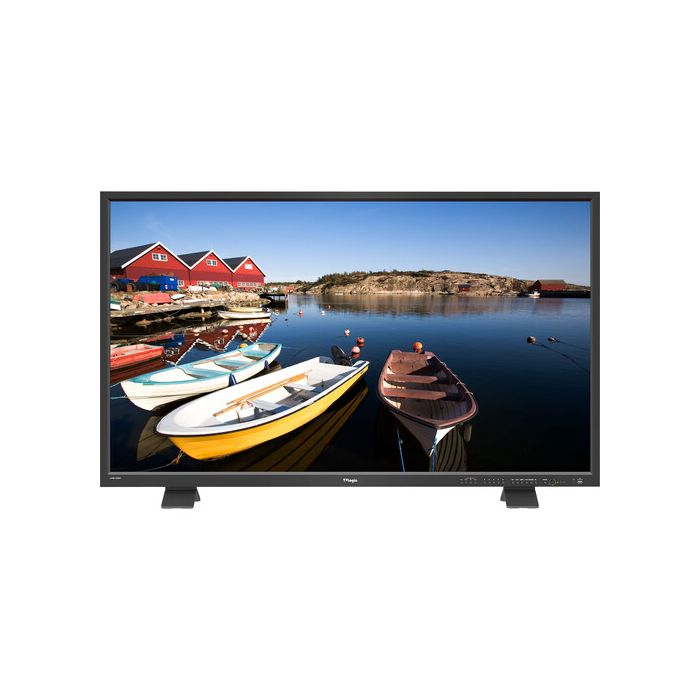

TVLogic LUM-550H 55'' UHD 4K LCD Monitor
by TVLogic
Availability:
7-10 days delivery
SKU
TVL-LUM-550H
54.6" UHD 4K LCD Monitor
4 x SDI Inputs, 1 x HDMI Input
€10,998.75
€8,799.00
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- TVLogic LUM-550H 54.6" UHD 4K SDI/HDMI LCD Monitor
- AC Power Cord
- Table Stand
- IR Remote
- Carrying Case
Take 12G-SDI, 3G-SDI, and HDMI video sources up to UHD 4K and output them to the LUM-550H 54.6" UHD 4K SDI/HDMI LCD Monitor from TVLogic with up to four SDI sources for monitoring in the field. The SDI ports on the monitor, four outputs and four inputs, can support either 12G-SDI or 3G-SDI video. The 12G-SDI ports can perform as single-link connections, while the 3G-SDI ports can perform in quad-link configurations. The monitor features many embedded color gamut parameters and gamut warning technology to preserve hue when colors are outside of the current scope.
The LUM-550H has a horizontal viewing angle of 178° and a maximum white brightness of 700 cd/m² for increased visibility. Onboard button controls allow you to adjust various image monitoring parameters from waveform to closed captioning. Control can also be achieved via the RS-422 serial connections or the IR remote control.
Features at a Glance
- HDR monitoring with PQ, HLG, and EOTF gamma
- Select color standards among HD, UHD, DCI-P3, PQ, Dolby PQ, and HLG
- UMD display with user-customized characters, source ID, or tally signal of ANC data
- Electrical-Electrical Transfer Function to roll off highlights and shadows to balance the image
- Gamut warning when in HDR mode of BT.2020
- Luma (Y') zone check
- Waveform and vectorscope
Other Video Assist Functions
- 16-channel audio level meter
- Focus assist
- Range error
- Timecode display
- Center marker
- Safety area
- Blue/mono only
- Closed caption
- H/V delay
| Display Size | 54.6" / 138.7 cm |
| Native Resolution | 3840 x 2160 |
| Touchscreen | No |
| HDR Support |
Yes: Hybrid Log Gamma
|
| Video I/O |
2x BNC (12G-SDI) Input
|
|
2x BNC (12G-SDI) Output
|
|
|
2x BNC (3G-SDI) Input
|
|
|
2x BNC (3G-SDI) Output
|
|
|
1x HDMI 2.0 Input
|
|
| Show Less | |
| Media/Memory Card Slot | No |
| Video Format | SDI |
|
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
|
|
|
DCI 2K: 60/59.94/50/48/47.95/30/29.97/25/24/23.98
|
|
|
DCI 2K PsF: 30/29.97/25/24/23.98
|
|
|
1080p: 60/59.94/50/30/29.97/25/24/23.98
|
|
|
1080PsF: 30/29.97/25/24/23.98
|
|
|
1080i: 60/59.94/50
|
|
|
720p: 60/59.94/50
|
|
| 576i: 50 | |
| 480i: 59.94 | |
| HDMI | |
| DCI 2K | |
| 1080p | |
| 720p | |
| 480p | |
| Show Less | |
| Display | |
| Panel Type | LCD |
| Display Size | 54.6" / 138.7 cm |
| Screen Area |
47.62 x 26.79" / 120.96 x 68.04 cm
|
| Native Resolution | 3840 x 2160 |
| Aspect Ratio | 16:09 |
| Viewing Angle | Horizontal: 178° |
| Vertical: 178° | |
| Touchscreen | No |
| Maximum Brightness | 700 nits / cd/m2 |
| Contrast Ratio | 1100:01:00 |
| Color Support |
1.07 Billion Colors (10-Bit)
|
| HDR Support |
Yes: Hybrid Log Gamma
|
| Pixels Per Inch (ppi) | 80 ppi |
| Image Controls |
Blue Only, Focus Assist, H/V Delay, Vectorscope, Waveform
|
| Inputs / Outputs | |
| Video I/O |
2x BNC (12G-SDI) Input
|
|
2x BNC (12G-SDI) Output
|
|
|
2x BNC (3G-SDI) Input
|
|
|
2x BNC (3G-SDI) Output
|
|
|
1x HDMI 2.0 Input
|
|
| Embedded Audio | SDI |
| Audio I/O |
1x 1/8" / 3.5 mm Line Input
|
|
1x 1/8" / 3.5 mm Headphone Output
|
|
| Built-In Speaker | No |
| Power I/O | 1x IEC Input |
| Other I/O |
1x RJ45 (GPI) Input
|
|
1x RJ45 (LAN) Input
|
|
|
1x RJ45 (RS-422) Input
|
|
|
1x RJ45 (RS-422) Output
|
|
|
1x USB-A (Firmware) Input
|
|
| Media/Memory Card Slot | No |
| Wi-Fi | No |
| Bluetooth | No |
| Mobile App Compatible | No |
| Format Support | |
| Video Format | SDI |
|
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
|
|
|
DCI 2K: 60/59.94/50/48/47.95/30/29.97/25/24/23.98
|
|
|
DCI 2K PsF: 30/29.97/25/24/23.98
|
|
|
1080p: 60/59.94/50/30/29.97/25/24/23.98
|
|
|
1080PsF: 30/29.97/25/24/23.98
|
|
|
1080i: 60/59.94/50
|
|
|
720p: 60/59.94/50
|
|
| 576i: 50 | |
| 480i: 59.94 | |
| HDMI | |
| DCI 2K | |
| 1080p | |
| 720p | |
| 480p | |
| Video Standard Compliance |
SMPTE 125M/260M/274M/296M/425M-A/425M-B/ST-2036-1/ST-2081/ST-2082
|
| ITU -R BT.656 | |
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Mounting | |
| VESA Mounting-Hole Pattern | 400 x 400 mm |
| General | |
| Operating Conditions |
32 to 95°F / 0 to 35°C
|
| Storage Conditions |
-4 to 140°F / -20 to 60°C
|
| Dimensions |
49.7 x 29.4 x 3.2" / 126.2 x 74.6 x 8.14 cm
|
|
49.7 x 31.28 x 9.6" / 126.2 x 79.45 x 24.5 cm
|
|
| Weight | 78.9 lb / 35.8 kg |
