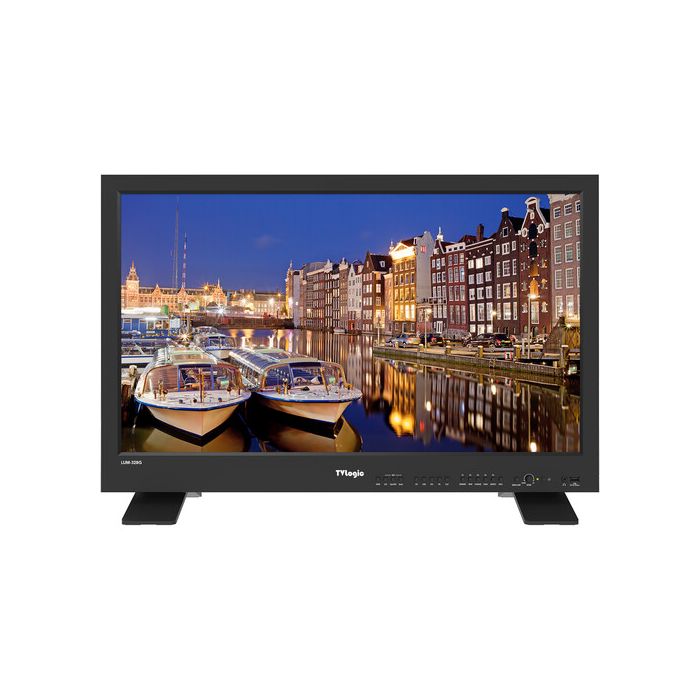

TVLogic LUM-328G 31'' 4K/UHD High Brightness HDR Emulation Monitor
by TVLogic
Availability:
7-10 days delivery
SKU
TVL-LUM-328G
31.5" UHD 4K LCD Monitor
4 x SDI Inputs, 1 x HDMI Input
€18,618.75
€14,895.00
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- TVLogic 31.5" UHD 4K SDI/HDMI LCD Monitor
- AC Power Cord
- Table Stand
Take 12G-SDI, 3G-SDI, and HDMI video sources up to UHD 4K and output them to this 31.5" UHD 4K SDI/HDMI LCD Monitor from TVLogic with up to four SDI sources for monitoring in the field. The SDI ports on the monitor, four outputs and four inputs, can support either 12G-SDI or 3G-SDI video. The 12G-SDI ports can perform as single-link connections while the 3G-SDI ports can perform in quad-link configurations.
The LUM-382G has a viewing angle of 178° and a maximum brightness of 1000 cd/m² for increased visibility. Onboard button controls allow you to adjust various image monitoring parameters from waveform to closed captioning. Control can also be achieved via the RS-422 connections or via remote control.
Features at a Glance
- Supports PQ and HLG as HDR EOTF gamma
- Select color standards among HD, UHD, DCI-P3, PQ, Dolby-PG, HLG, and preset values
- Luma(Y') zone check
- User aspect adjustable width and height display ratio
- Electrical-Electrical Transfer Function to roll off highlights and shadows to balance the image
- Precise color reproduction with wide color gamut
- Waveform and vectorscope
Other Video Assist Functions
- 16-channel audio level meter
- Focus assist
- Marker
- Timecode display
- UMD display
- Blue/mono only
- Closed caption
- H/V delay
- Tally
| Display Size | 31.5" / 80.0 cm |
| Native Resolution | 3840 x 2160 |
| Touchscreen | No |
| HDR Support |
Yes: Hybrid Log Gamma
|
| Video I/O |
2x BNC (12G-SDI) Input
|
|
2x BNC (12G-SDI) Output
|
|
|
2x BNC (3G-SDI) Input
|
|
|
2x BNC (3G-SDI) Output
|
|
|
1x HDMI 2.0 Input
|
|
| Show Less | |
| Media/Memory Card Slot | No |
| Video Format |
HDMI (10/12-Bit 4:4:4/4:2:2 RGB, YCC)
|
| DCI 4K: 60 | |
| 1080p: 60 | |
| 1080i: 60 | |
| 720p: 60 | |
| 480p: 60 | |
| 576p: 50 | |
|
SDI (8/10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YCC)
|
|
|
DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
|
|
|
1080p: 60/59.94/50/30/29.97/25/24/23.98
|
|
|
1080i: 60/59.94/50
|
|
|
1080PsF: 30/29.97/25/24/23.98
|
|
|
720p: 60/59.94/50
|
|
| 576i: 50 | |
| 480i: 59.94 | |
| Show Less | |
| Power Consumption |
162 W (Maximum)
|
| Display | |
| Panel Type | LCD |
| Display Size | 31.5" / 80.0 cm |
| Screen Area |
27.45 x 15.44" / 697.31 x 392.23 mm
|
| Native Resolution | 3840 x 2160 |
| Aspect Ratio | 16:09 |
| Viewing Angle | Horizontal: 178° |
| Vertical: 178° | |
| Touchscreen | No |
| Maximum Brightness |
1000 nits / cd/m2
|
| Contrast Ratio | 1000:01:00 |
| Color Support |
1.07 Billion Colors (10-Bit)
|
| HDR Support |
Yes: Hybrid Log Gamma
|
| Pixels Per Inch (ppi) | 139 ppi |
| LUT Support | Yes |
| Image Controls |
Blue Only, Focus Assist, H/V Delay, Vectorscope, Waveform
|
| Inputs / Outputs | |
| Video I/O |
2x BNC (12G-SDI) Input
|
|
2x BNC (12G-SDI) Output
|
|
|
2x BNC (3G-SDI) Input
|
|
|
2x BNC (3G-SDI) Output
|
|
|
1x HDMI 2.0 Input
|
|
| Audio I/O |
1x 1/8" / 3.5 mm Headphone Output
|
|
1x 1/8" / 3.5 mm Line Input
|
|
| Built-In Speaker | No |
| Other I/O |
1x USB-A (Firmware) Input
|
|
1x RJ45 (GPI) Input
|
|
|
1x RJ45 (LAN) Input
|
|
|
1x RJ45 (RS-422) Input
|
|
|
1x RJ45 (RS-422) Output
|
|
| Media/Memory Card Slot | No |
| Wi-Fi | No |
| Bluetooth | No |
| Mobile App Compatible | No |
| Format Support | |
| Video Format |
HDMI (10/12-Bit 4:4:4/4:2:2 RGB, YCC)
|
| DCI 4K: 60 | |
| 1080p: 60 | |
| 1080i: 60 | |
| 720p: 60 | |
| 480p: 60 | |
| 576p: 50 | |
|
SDI (8/10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YCC)
|
|
|
DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
|
|
|
1080p: 60/59.94/50/30/29.97/25/24/23.98
|
|
|
1080i: 60/59.94/50
|
|
|
1080PsF: 30/29.97/25/24/23.98
|
|
|
720p: 60/59.94/50
|
|
| 576i: 50 | |
| 480i: 59.94 | |
| Video Standard Compliance |
SMPTE 125M/260M/274M/296M/425M-A/425M-B/ST-2036-1/ST-2081/ST-2082
|
| ITU -R BT.656 | |
| Power | |
| Input Power | 12 VDC |
|
100 to 240 VAC, 50 / 60 Hz
|
|
| Power Consumption |
162 W (Maximum)
|
| Mounting | |
| VESA Mounting-Hole Pattern | 400 x 200 mm |
| General | |
| Operating Conditions |
32 to 113°F / 0 to 45°C
|
| Storage Conditions |
-4 to 140°F / -20 to 60°C
|
| Dimensions |
29.9 x 19.1 x 4.2" / 760.3 x 485.3 x 107.1 mm
|
|
29.9 x 20.7 x 9.6" / 760.3 x 525.9 x 245 mm (Including Stand)
|
