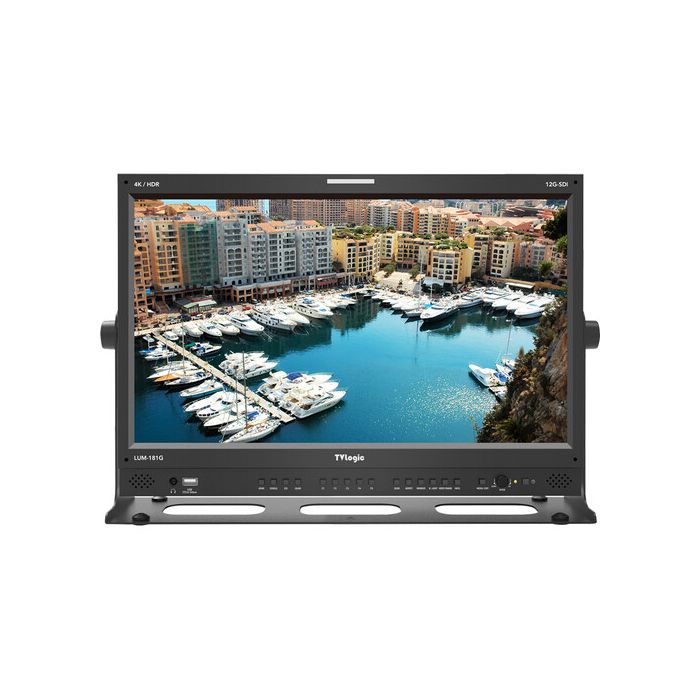

TVLogic LUM-181G 18.5'' 4K Input-Ready Monitor LCD Monitor
by TVLogic
Availability:
7-10 days delivery
SKU
TVL-LUM-181G
18.5" 1920 x 1080 LCD Monitor
4 x 12G-SDI Inputs, 1 x HDMI Input
€5,623.75
€4,499.00
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- TVLogic 18.5" 4K Input-Ready SDI/HDMI LCD Monitor
- AC Power Cord
- Table Stand
- Control Knob Cap
- Carry Handle
Take SDI and HDMI video sources up to UHD 4K and output them to this 18.5" 4K Input-Ready SDI/HDMI LCD Monitor from TVLogic with up to four 12G-SDI sources for monitoring in the field. The SDI ports on the monitor, both the four inputs and the four outputs, support up to 12G-SDI and can perform as single-link or quad-link connections. The LUM-181G has a viewing angle of 178° and a maximum brightness of 500 cd/m² for increased visibility.
Onboard button controls allow you to adjust various image monitoring parameters from waveform to closed captioning. Control can also be achieved via the RS-422 connections or via remote control.
Features at a Glance
- Supports PQ and HLG as HDR EOTF gamma
- Select color standards among HD, UHD, DCI-P3, PQ, Dolby-PG, HLG, and preset values
- Luma(Y') zone check
- User aspect adjustable width and height display ratio
- Electrical-Electrical Transfer Function to roll off highlights and shadows to balance the image
- Precise color reproduction with wide color gamut
- Waveform and vectorscope
Other Video Assist Functions
- 16-channel audio level meter
- Focus assist
- Marker
- Timecode display
- UMD display
- Blue/mono only
- Range error
- Closed caption
- H/V delay
- Tally
| Display Size | 18.5" / 47.0 cm |
| Native Resolution | 1920 x 1080 |
| Touchscreen | No |
| HDR Support | Yes |
| Video I/O |
4x BNC (12G-SDI) Input
|
|
4x BNC (12G-SDI) Output
|
|
|
1x HDMI 2.0 Input
|
|
| Media/Memory Card Slot | No |
| Video Format | HDMI |
| DCI 2K | |
| 1080p | |
| 720p | |
| 480p | |
| SDI | |
|
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
|
|
|
DCI 2K: 60/59.94/50/48/47.95/30/29.97/25/24/23.98
|
|
|
DCI 2K PsF: 30/29.97/25/24/23.98
|
|
|
1080p: 60/59.94/50/30/29.97/25/24/23.98
|
|
|
1080PsF: 30/29.97/25/24/23.98
|
|
|
1080i: 60/59.94/50
|
|
|
720p: 60/59.94/50
|
|
| 576i: 50 | |
| 480i: 59.94 | |
| Show Less | |
| Battery | No |
| Power Consumption | 85 W |
| Display | |
| Panel Type | LCD |
| Display Size | 18.5" / 47.0 cm |
| Native Resolution | 1920 x 1080 |
| Aspect Ratio | 16:09 |
| Viewing Angle | Horizontal: 178° |
| Vertical: 178° | |
| Touchscreen | No |
| Maximum Brightness | 500 nits / cd/m2 |
| Contrast Ratio | 1000:01:00 |
| Color Support |
16.7 Million Colors (8-Bit)
|
| HDR Support | Yes |
| LUT Support | Yes |
| Image Controls |
Blue Only, Customizable Aspect Ratios, Focus Assist, H/V Delay, Image Flip, Vectorscope, Waveform
|
| Inputs/Outputs | |
| Video I/O |
4x BNC (12G-SDI) Input
|
|
4x BNC (12G-SDI) Output
|
|
|
1x HDMI 2.0 Input
|
|
| Audio I/O |
1x 1/8" / 3.5 mm Input/Output
|
| Built-In Speaker | Stereo |
| Power I/O |
1x XLR 4-Pin (12 VDC) Input
|
| 1x IEC Input | |
| Other I/O |
1x RJ45 (LAN) Input
|
| 1x RJ45 (GPI) | |
|
1x RJ45 (RS-422) Input
|
|
|
1x RJ45 (RS-422) Output
|
|
|
1x USB-A (Firmware) Input
|
|
| Media/Memory Card Slot | No |
| Wireless | |
| Wi-Fi | No |
| Bluetooth | No |
| Mobile App Compatible | No |
| Format Support | |
| Video Format | HDMI |
| DCI 2K | |
| 1080p | |
| 720p | |
| 480p | |
| SDI | |
|
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
|
|
|
DCI 2K: 60/59.94/50/48/47.95/30/29.97/25/24/23.98
|
|
|
DCI 2K PsF: 30/29.97/25/24/23.98
|
|
|
1080p: 60/59.94/50/30/29.97/25/24/23.98
|
|
|
1080PsF: 30/29.97/25/24/23.98
|
|
|
1080i: 60/59.94/50
|
|
|
720p: 60/59.94/50
|
|
| 576i: 50 | |
| 480i: 59.94 | |
| Power | |
| Input Power | 12 to 24 VDC |
|
100 to 240 VAC, 50 / 60 Hz
|
|
| Battery | No |
| Power Consumption | 85 W |
| Mounting | |
| VESA Mounting-Hole Pattern | 100 x 100 mm |
| General | |
| Operating Conditions |
32 to 95°F / 0 to 35°C
|
| Storage Conditions |
-4 to 140°F / -20 to 60°C
|
| Dimensions |
17.4 x 12.2 x 3.6" / 442.5 x 309 x 91.8 mm
|
|
19.3 x 13.1 x 5.4" / 489.3 x 332.8 x 137.5 mm (Including Stand)
|
|
| Weight |
17.4 lb / 7.9 kg, Including Stand
|
