TVLogic LUM-096G
by TVLogic10", Full HD Resolution (1920x1200)
Max Luminance 1000nits
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- TVLogic LUM-096G

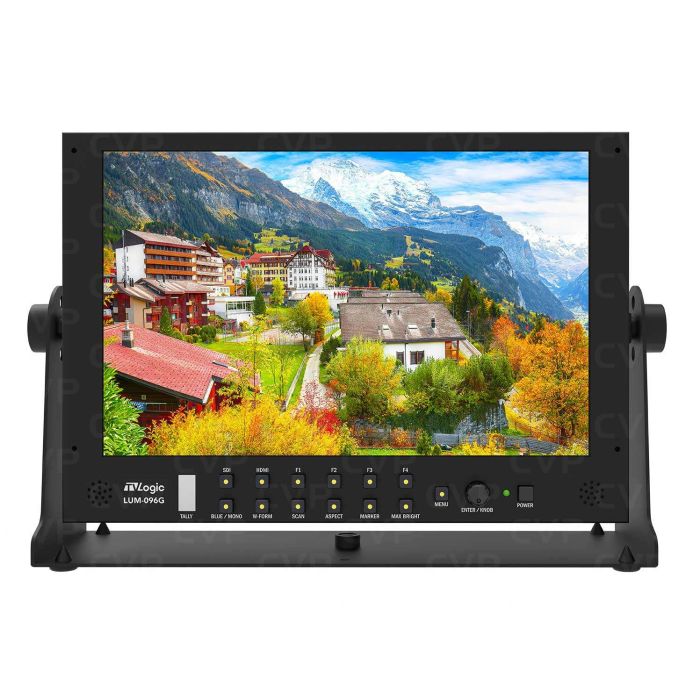

TVLogic LUM-096G is a 10" FHD multi-purpose monitor with a full HD resolution of 1920x1200. It features a maximum luminance of 1000nits and DCI-P3 coverage of 95%. The monitor supports 12G-SDI single link 4K/UHD and 3G-SDI quad-link square division & 2-S.I. 4K/UHD. It also includes HDR support for PQ, HLG, and S-Log3, as well as custom 3D LUT import via USB flash drive and various built-in camera LUTs. Other features include waveform/vectorscope, 16ch audio level meter, focus assist, marker, timecode display, dynamic UMD, blue/mono only display, H flip & V flip, various aspect ratios, and Luma(Y) zone check.
The TVLogic LUM-096G is a versatile monitor suitable for various professional applications. With its high resolution, wide range of features, and support for different video formats and colour spaces, it provides users with a reliable and efficient tool for monitoring and analysing video content. Whether used in a studio setting or on location, this monitor offers the functionality and performance needed for accurate and detailed video monitoring.
| Size | 10.1” |
| Resolution |
1920 x 1200 (16:10)
|
| Pixel Pitch |
0.1128(H) x 0.1128(V) mm
|
| Color Depth |
16.7M Colors (8 bit)
|
| Viewing Angle |
170°(H) / 170°(V)
|
| Brightness |
1000 cd/m2 / 1000 nits
|
| Contrast Ratio | 1000:01:00 |
| Display Area |
216.58 (H) x 135.36 (V) mm
|
| Input | |
| Input |
1 x 12G-SDI A Input
|
|
1 x 3G-SDI B Input
|
|
|
1 x JG-SDI CInput (for Quad Input)
|
|
|
1 x JG-SDI Dlnput (for Quad Input)
|
|
|
1 x HDMI 2.0 Input
|
|
| Output | |
| Output |
1 x llG·SDIOutput (shared withInput)
|
|
1 x JG-SDIOutput (shared with Input)
|
