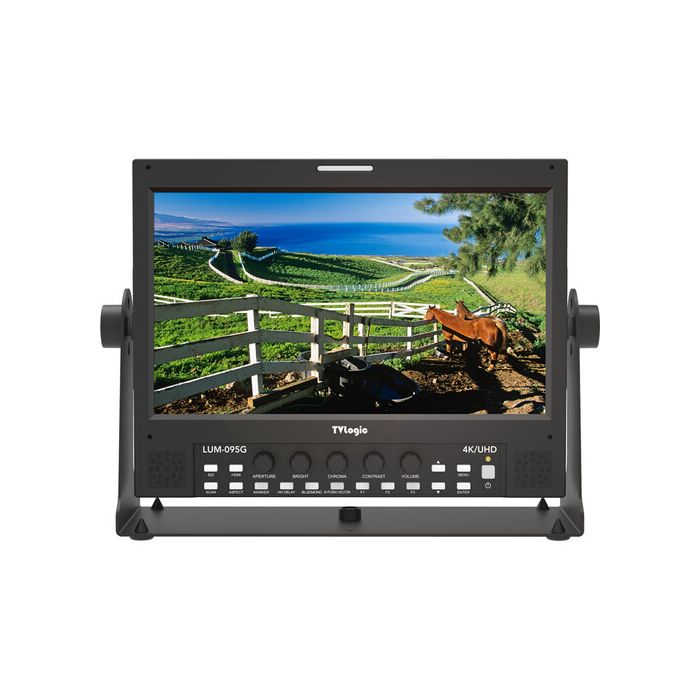

TVLogic LUM-095G 9'' 4K Input-Ready Monitor LCD Monitor
by TVLogic
Availability:
7-10 days delivery
SKU
TVL-LUM-095G
9" 1920 x 1080 LCD Monitor
4 x SDI Ports, 1 x HDMI Port
€5,368.75
€4,295.00
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- TVLogic 9" UHD 4K Input-Ready SDI/HDMI LCD Monitor
- AC Power Cord
- DC Power Adapter
- Carry Handle
- Table Stand
- Camera Mount
Ideal for field monitoring applications, the 9" UHD 4K Input-Ready SDI/HDMI LCD Monitor from TVLogic supports both SDI and HDMI video at resolutions up to UHD 4K. Four SDI ports and one HDMI port natively support full HD resolutions while also supporting UHD 4K inputs. The LUM-0956 has a 178° viewing angle and maximum brightness of 400 cd/m² for increased visibility.
Onboard button controls allow you to adjust various image monitoring parameters from waveform to image flip. Control can also be achieved via the RS-422 connections or via remote control using the RJ45 port on the back panel. Upload custom 3D LUTs and view various cine camera LUTs for color monitoring.
Features at a Glance
- High Dynamic Range mode for monitoring black and highlights simultaneously
- 12G-SDI Single Link UHD 4K, 3G-SDI Quad-Link
- Supports PQ, HLG, S-Log3 as HDR EOTF gamma
- Various color adjustment menus to monitor the video signal
- ARRI camera status to display metadata like camera status and lens data from ARRI ALEXA
- Upload 3D LUT files via USB, supports ARRI Log-C, Sony S-Log1/2/3, Canon C-Log, RED Gamma 3/4
Image Controls
- H/V flip, H/V delay
- Waveform
- Luma(Y') zone check
- Vectorscope
- Focus assist
- Range error
- User-controllable aspect ratio
- Dynamic UMD
- Markers
- Zoom
- Audio level meter
- Timecode display
- Freeze
- Blue only
- Closed caption
| Display Size | 9.0" / 22.9 cm |
| Native Resolution | 1920 x 1080 |
| Touchscreen | No |
| HDR Support | No |
| Video I/O |
1x HDMI 2.0 Input
|
|
1x BNC (12G-SDI) Input
|
|
|
1x BNC (12G-SDI) Output
|
|
|
1x BNC (3G-SDI) Input
|
|
|
1x BNC (3G-SDI) Output
|
|
| Show Less | |
| Media/Memory Card Slot | No |
| Video Format |
SDI (8/10/12-Bit 4:4:4/4:2:2 RGB, YCC)
|
|
1080p: 30/29.97/25/24/23.98
|
|
|
1080PsF: 30/29.97/25/24/23.98
|
|
|
1080i: 60/59.94/50
|
|
|
SDI (10-Bit 4:4:4 RGB, YCC)
|
|
|
720p: 60/59.94/50
|
|
|
SDI (8/10/12-Bit 4:4:4/4:2:2 RGB, YCC)
|
|
|
DCI 2K: 60/59.94/50/30/29.97/25/24/23.98
|
|
|
DCI 2K PsF: 30/29.97/25/24/23.98
|
|
|
SDI (10-Bit 4:2:2 YCC)
|
|
|
DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
|
|
|
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
|
|
|
1080p: 60/59.94/50/30/29.97/25/24/23.98
|
|
|
1080PsF: 30/29.97/25/24
|
|
|
1080i: 60/59.94/50
|
|
|
720p: 60/59.94/50
|
|
| 576i: 50 | |
| 480i: 59.94 | |
|
SDI (10/12-Bit 4:4:4 RGB, YCC)
|
|
|
DCI 4K: 30/29.97/25/24/23.98
|
|
|
UHD 4K: 30/29.97/25/24/23.98
|
|
|
HDMI (8-Bit 4:4:4/4:2:2 RGB, YCC)
|
|
|
1080p: 60/59.94/50/30/29.97/25/24/23.98
|
|
|
1080i: 60/59.94/50
|
|
|
720p: 60/59.94/50
|
|
| 576p: 50 | |
| 576i: 50 | |
| 480p: 60 | |
| 480i: 60 | |
|
HDMI (8/10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YCC)
|
|
|
DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
|
|
|
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
|
|
| Show Less | |
| Power Consumption | 30 W |
| Display | |
| Panel Type | IPS-Type LCD |
| Display Size | 9.0" / 22.9 cm |
| Native Resolution | 1920 x 1080 |
| Aspect Ratio | 16:09 |
| Viewing Angle | Horizontal: 178° |
| Vertical: 178° | |
| Touchscreen | No |
| Maximum Brightness | 400 nits / cd/m2 |
| Contrast Ratio | 750:01:00 |
| Color Support |
16.7 Million Colors (8-Bit)
|
| HDR Support | No |
| LUT Support | Yes |
| Image Controls |
Anamorphic De-Squeeze, Blue Only, Color Temperature Selection, Customizable Aspect Ratios, Focus Assist, H/V Delay, Image Flip, Vectorscope, Waveform
|
| Inputs/Outputs | |
| Video I/O |
1x HDMI 2.0 Input
|
|
1x BNC (12G-SDI) Input
|
|
|
1x BNC (12G-SDI) Output
|
|
|
1x BNC (3G-SDI) Input
|
|
|
1x BNC (3G-SDI) Output
|
|
| Embedded Audio | HDMI/SDI |
| Audio I/O |
1x 1/8" / 3.5 mm Input
|
|
1x 1/8" / 3.5 mm Output
|
|
| Built-In Speaker | Mono |
| Power I/O |
1x XLR 4-Pin (24 VDC) Input
|
| Other I/O |
2x RJ45 (RS-422) Input/Output
|
| 1x RJ45 (GPI) | |
|
1x USB-A (Firmware) Input
|
|
| Media/Memory Card Slot | No |
| Wireless | |
| Wi-Fi | No |
| Bluetooth | No |
| Mobile App Compatible | No |
| Format Support | |
| Video Format |
SDI (8/10/12-Bit 4:4:4/4:2:2 RGB, YCC)
|
|
1080p: 30/29.97/25/24/23.98
|
|
|
1080PsF: 30/29.97/25/24/23.98
|
|
|
1080i: 60/59.94/50
|
|
|
SDI (10-Bit 4:4:4 RGB, YCC)
|
|
|
720p: 60/59.94/50
|
|
|
SDI (8/10/12-Bit 4:4:4/4:2:2 RGB, YCC)
|
|
|
DCI 2K: 60/59.94/50/30/29.97/25/24/23.98
|
|
|
DCI 2K PsF: 30/29.97/25/24/23.98
|
|
|
SDI (10-Bit 4:2:2 YCC)
|
|
|
DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
|
|
|
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
|
|
|
1080p: 60/59.94/50/30/29.97/25/24/23.98
|
|
|
1080PsF: 30/29.97/25/24
|
|
|
1080i: 60/59.94/50
|
|
|
720p: 60/59.94/50
|
|
| 576i: 50 | |
| 480i: 59.94 | |
|
SDI (10/12-Bit 4:4:4 RGB, YCC)
|
|
|
DCI 4K: 30/29.97/25/24/23.98
|
|
|
UHD 4K: 30/29.97/25/24/23.98
|
|
|
HDMI (8-Bit 4:4:4/4:2:2 RGB, YCC)
|
|
|
1080p: 60/59.94/50/30/29.97/25/24/23.98
|
|
|
1080i: 60/59.94/50
|
|
|
720p: 60/59.94/50
|
|
| 576p: 50 | |
| 576i: 50 | |
| 480p: 60 | |
| 480i: 60 | |
|
HDMI (8/10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YCC)
|
|
|
DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
|
|
|
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
|
|
| Gamma Curve |
ARRI Log C, Canon Log, HDR-HLG, Sony S-Log, Sony S-Log 2, Sony S-Log 3
|
| Power | |
| Input Power | 12 to 24 VDC |
| Power Consumption | 30 W |
| General | |
| Operating Conditions |
-4 to 104°F / -20 to 40°C
|
| Storage Conditions |
-22 to 122°F / -30 to 50°C
|
| Dimensions |
8.8 x 6.9 x 2.4" / 223 x 175 x 60 mm
|
|
10.2 x 7.6 x 3.5" / 260 x 194.2 x 90 mm (Including Stand)
|
|
| Weight |
4.72 lb / 2.14 kg, Including Stand
|
