Tilta Arca Height Adjustable 15mm LWS Baseplate - Black
by Tilta
Availability:
7-10 days delivery
SKU
T-TA-HABP-B

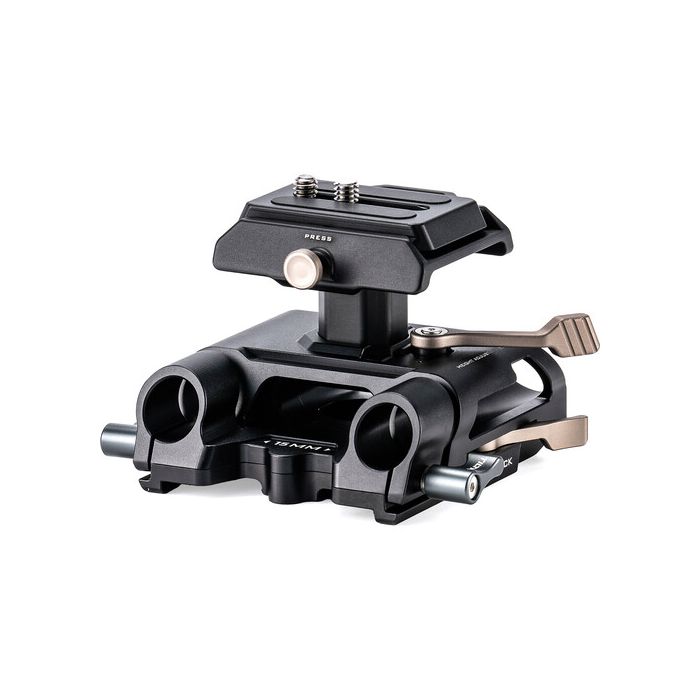

This Height-Adjustable Arca-Type 15mm LWS Baseplate from Tilta features a 15mm LWS rod clamp baseplate to accommodate standard 15mm rods, and a quick release top plate is included for integration with Arca-type tripod systems.
€104.00
€83.20
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Tilta Arca Height Adjustable 15mm LWS Baseplate - Black
- Arca-Type Quick Release Plate (Black)
- 1/4"-20 Screw
- Allen Wrench
The system is height adjustable within a 0.78" range to accommodate a follow focus system or matte box, and it features a range of 0.71 to 1.5" from the rod center to the Arca receiver.
A dovetail clamp on the base is compatible with Tilta dovetail plates, and there are also 1/4"-20 threads on the bottom for mounting onto a tripod, plate, or rig. The Arca-type quick release plate features a 1/4"-20 screw to secure your camera. The baseplate can support a camera rig load weighing up to 10 lb.
| Rod Standard | 15 mm LWS / 60 mm Spacing |
| Camera Mounting | Quick Release Plate with 1/4"-20 Male Screw |
| Tripod Mounting | 1/4"-20 Female Thread, Built-In Proprietary Dovetail Plate |
| Rod Ports | 2x 15 mm Rod Port |
| Shoe Mounting | No |
| Load Capacity | 10 lb / 4.5 kg |
| Materials | Aluminum Alloy |
| Dimensions | 7.5 x 5.5 x 3.5" / 190.5 x 139.7 x 88.9 mm |
| Weight | 1 lb / 0.5 kg |
