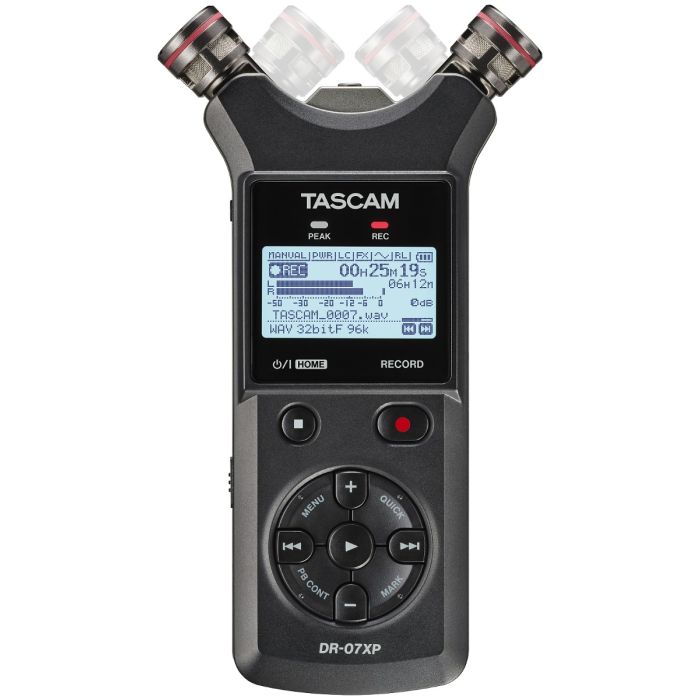

Tascam DR-07XP
by TascamThe DR-07XP portable handheld recorder makes it easy to capture pro-quality recordings for music, audio-for-video, meetings, dictation and more.
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Tascam DR-07XP × 1
- Safety Guide × 1
- TASCAM ID registration guide × 1
Create Professional Audio Recordings From the Palm of Your Hand
The DR-07XP portable handheld recorder makes it easy to capture pro-quality recordings for music, audio-for-video, meetings, dictation and more. With 32-bit float recording mode, you’ll never need to worry about setting audio levels, and adjustable stereo condenser microphones give you full control over your sound.
With easy one-handed operation, the DR-07XP makes it simple to start recording with minimal setup time.
Capture Pro-Level Recordings Every Time
With its 32-bit float recording mode, the DR-07XP ensures your audio recordings will always be clear, distinct and free of distortion that could ruin your recording – and you’ll never need to worry about setting input levels.
Recording formats include 32-bit float, 24-bit and 16-bit at 96 kHz, 48 kHz, 44.1 kHz as well as MP3.
Adjustable Stereo Condenser Microphones
The DR-07XP features stereo condenser microphones with adjustable A-B or X-Y configurations, allowing you to capture incredibly vivid stereo recordings in any setting.
Simplicity in Your Palm
With the DR-07XP, the complexities of audio recording are a thing of the past. Easily access every feature from the palm of your hand.
Plus, the backlit LCD screen means no squinting, just clear and concise navigation any time of day, in any environment.
Your Portable Recording Studio
The DR-07XP isn’t only a powerful portable recorder — it’s also a 2-in/2-out USB-C audio interface you can use to record anywhere, directly to audio recording software on your Mac or PC.
Ideal for Musicians
The DR-07XP is a fantastic portable recording solution for musicians with its high-quality microphones, 32-bit float recording, built-in tuner, reverb, overdubbing and more.
On location
With its compact size, the DR-07XP can travel anywhere for exceptional field recording. Choose from four different low cut filter options for getting rid of unwanted noises.
As a companion for video, the DR-07XP can attach easily to tripods and the Auto Tone output for cameras makes post-production a simple task.
Record Anything, Anywhere
From dialogue to vlogs, whether you’re in an alley or a recording booth, the DR-07XP captures clear, crisp audio with ease. In addition to the built-in mics, use the stereo mini-jack to add microphones with plug-in power or external line inputs to capture audio from any source in mono or stereo.
Connect the unit to a computer via USB-C for use as a USB microphone.
| General | |
| Recording media | microSD/microSDHC/microSDXC card (up to 512 GB) |
| Recording/playback format | |
| WAV | Sampling frequency: 44.1/48/96 kHz |
| Quantization bit depth: 16-bit / 24-bit / 32-bit float | |
| MP3 | Sampling frequency: 44.1/48 kHz |
| Bit rate: 32/64/96/128/192/256/320 kbit/s | |
| Number of channels | Input channels: 2 (stereo) |
| Recording tracks: 2 (stereo) | |
| Analogue audio inputs and outputs | |
| Microphone/External input (can provide plug-in power) | 3.5-mm stereo mini jack |
| Input impedance | ≥18 kΩ (plug-in power off) |
| ≥2 kΩ (plug-in power on) | |
| Nominal input level | −20 dBV |
| Maximum input level | −4 dBV |
| Headpones/Line output | 3.5-mm stereo mini jack |
| Output impedance | 12 Ω |
| Nominal output level | −14 dBV (10 kΩ load) |
| Maximum output level | +2 dBV (10 kΩ load) |
| Maximum output power | 20 mW + 20 mW (32 Ω load) |
| Working impedance | 16−250 Ω |
| Built-in loudspeaker | 0.3 W (mono) |
| Control inputs and outputs | |
| USB | Type-C connector |
| Format | USB 2.0 HIGH SPEED mass storage class |
| USB 1.1 FULL SPEED audio class | |
| USB Audio | |
| Sampling frequency | 44.1/48 kHz |
| Quantization bit depth | 24 bit |
| Number of audio inputs | 2 channels |
| Number of audio outputs | 2 channels |
| Audio performance | |
| Frequency response | 20 Hz – 20 kHz, +0/−1 dB |
| (MIC/EXT IN to LINE OUT, 44.1 kHz, JEITA) | |
| 20 Hz – 22 kHz, +0/−1 dB | |
| (MIC/EXT IN to LINE OUT, 48 kHz, JEITA) | |
| 20 Hz – 40 kHz, +0/−1.5 dB | |
| (MIC/EXT IN to LINE OUT, 96 kHz, JEITA) | |
| Total harmonic distortion ratio (THD+N) | ≤0.01 % |
| (MIC/EXT IN to LINE OUT, 44.1/48/96 kHz, JEITA) | |
| Note: JEITA indicates conformance to JEITA CP-2150 | |
| Power supply and other specifications | |
| Power supply | 2 AA batteries (alkaline or NiMH, sold separately) |
| USB bus power from a computer | |
| Dedicated AC adapter (TASCAM PS-P520U, sold separately, DC 5 V, 2 A) | |
| Power consumption | 1.7 W / 5 V, 0.5 A (maximum) |
| Dimensions (W × H × D) | 68 mm × 160 mm × 27 mm (microphones in XY configuration) |
| 90 mm × 160 mm × 27 mm (microphones pair in AB configuration) | |
| Weight | 184/136 g (with/without batteries) |
| Permissible operating temperature range | 0–40 °C |
