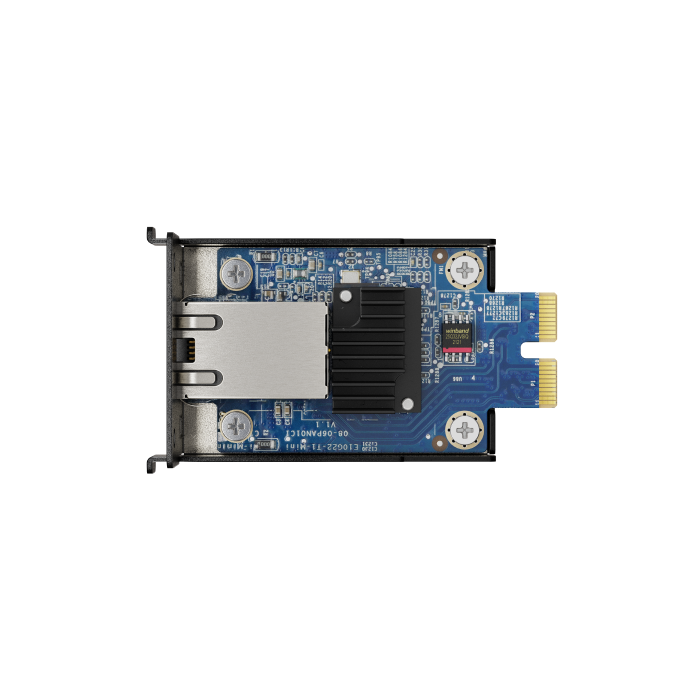

Synology E10G22-T1-Mini, single-port 10GbE RJ45 mreĹľni adapter
by SynologyThe Synology E10G22-T1-Mini Network Upgrade Module is designed to easily and quickly upgrade your Synology system with 10GbE connectivity. Simple installation, low implementation cost, and support for nearly any network environment makes it the ideal solution for small businesses and home users looking to maximize the performance potential of their deployments.
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Synology E10G22-T1-Mini, single-port 10GbE RJ45 mrežni adapter
Simple installation
Install the E10G22-T1-Mini through the dedicated and easily-accessible network upgrade slot to instantly upgrade bandwidth availability in Synology servers featuring compact-size enclosures.
Multi-gig support
Integrates easily into any network using standard Ethernet cabling. Autonegotiation automatically determines the best data rate (between 10, 5, 2.5, 1 Gbps, and 100 Mbps) for your network environment, simplifying network setup.
| General | Host Bus Interface | PCIe 3.0 x2 |
| Size (Height x Width x Depth) | 26.37 mm x 45.38 mm x 75.7 mm | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) | |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) | |
| Relative Humidity | 5% to 95% RH | |
| Network | IEEE Specification Compliance | IEEE 802.3x Flow Control |
| IEEE 802.3u Fast Ethernet | ||
| IEEE 802.3ab Gigabit Ethernet | ||
| IEEE 802.3bz 2.5Gbps / 5Gbps Ethernet | ||
| IEEE 802.3an 10Gbps Ethernet | ||
| Data Transfer Rates | 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps | |
| Supported Features | 9 KB Jumbo Frame | |
| TCP/UDP/IP Checksum Offloading | ||
| Auto-negotiation between 100Mb/s, 1Gb/s, 2.5Gb/s, 5Gb/s, and 10Gb/s | ||
| TCP Segmentation Offload (TSO) | ||
| Large Send Offload (LSO) | ||
| Receive Side Scaling (RSS) | ||
| Generic Receive Offload (GRO) | ||
| Generic Segmentation Offload (GSO) | ||
| Network | IEEE Specification Compliance | IEEE 802.3x Flow Control |
| IEEE 802.3u Fast Ethernet | ||
| IEEE 802.3ab Gigabit Ethernet | ||
| IEEE 802.3bz 2.5Gbps / 5Gbps Ethernet | ||
| IEEE 802.3an 10Gbps Ethernet | ||
| Data Transfer Rates | 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps | |
| Supported Features | 9 KB Jumbo Frame | |
| TCP/UDP/IP Checksum Offloading | ||
| Auto-negotiation between 100Mb/s, 1Gb/s, 2.5Gb/s, 5Gb/s, and 10Gb/s | ||
| TCP Segmentation Offload (TSO) | ||
| Large Send Offload (LSO) | ||
| Receive Side Scaling (RSS) | ||
| Generic Receive Offload (GRO) | ||
| Generic Segmentation Offload (GSO) | ||
| Compatibility | ||
| Applied Models | 23 series:DS923+, DS723+ | |
| 22 series:RS422+, DS1522+ |
