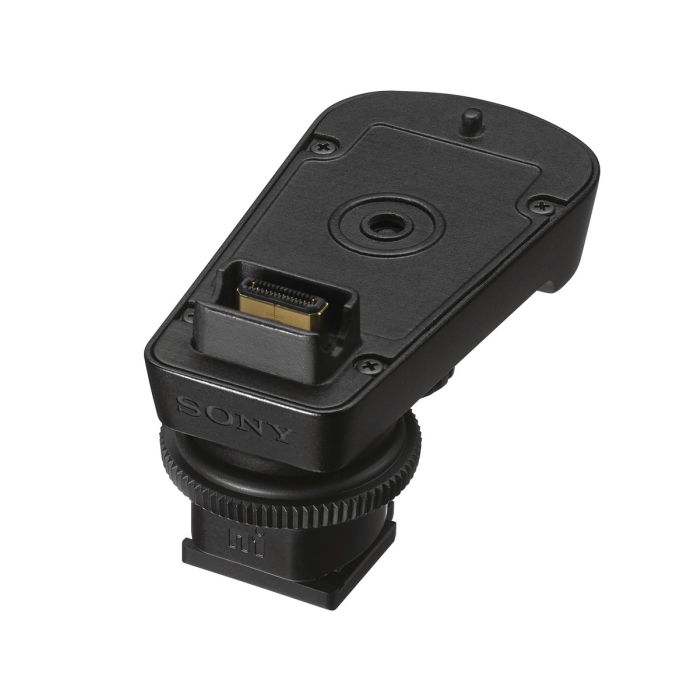

Sony SMAD-P5 Multi Interface Shoe Adaptor
by SonyThe SMAD-P5 Multi Interface Shoe (MI Shoe) adapter enables wireless connection of the URX-40 audio receiver with compatible SONY cameras or mirrorless cameras.
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Sony SMAD-P5 Digital MI adapter for UWP-D series
The SMAD-P5 Multi Interface Shoe (MI Shoe) adapter enables wireless connection of the URX-40 audio receiver with compatible SONY cameras or mirrorless cameras.
The compact SMAD-P5 is a digital multiple interface (MI) adapter that enables mounting of the URX-P40 series UWP-D receiver on selected Sony camcorders and cameras equipped with a digital multiple interface adapter. The adapter eliminates the need for cable connections, speeding up field deployment.
The SMAD-P5 provides a direct digital audio link between the URX-P40 receiver and camera, bypassing both the receiver's D/A conversion and the camera's A/D conversion, achieving excellent 24-bit sound quality and low noise. As the camera is equipped with an analog MI Shoe socket, the adapter can be switched to an analog audio connection.
The adapter also offers seamless integration with the Sony a7R IV mirrorless camera and XDCAM PXW-Z280/PXW-Z190 camcorders and displays microphone information on the camera's viewfinder, including RF level, mute status and transmitter low battery warning.
In addition, the SMAD-P5 allows the receiver to be powered from the camera, and the camera can synchronize power on/off with the receiver to unify power management
Compatible products:
- Sony PXW-X160
- Sony PXW-X180
- Sony PXW-X200
- Sony PXW-Z90
- Sony PXW-Z150
- Sony PXW-Z190 (digital binding )
- Sony PXW-Z280 (digital binding )
- Sony NEX-VG900/PRO
- Sony PXW-X70
- Sony HXR-MC2500
- Sony HXR-NX80
- Sony HXR-NX5R
- Sony PXW-FS5
- Sony PXW-FS7
- Sony PXW-FX9 (digital binding )
| Output impedance | 1 kΩ or less |
| Voice delay | 1.16 ms (digital) |
| Recommended temperature | 0°C to 50°C (32°F to 122°F) |
| Storage temperature | -20°C to +55°C (-4°F to +131°F) |
| Dimensions (W/D) | Approximately 34 mm × 35 mm × 65 mm (1 3/8 in × 1 7/16 in × 2 5/8 in) |
| Weight | Approximately 27g (without connecting block) |
