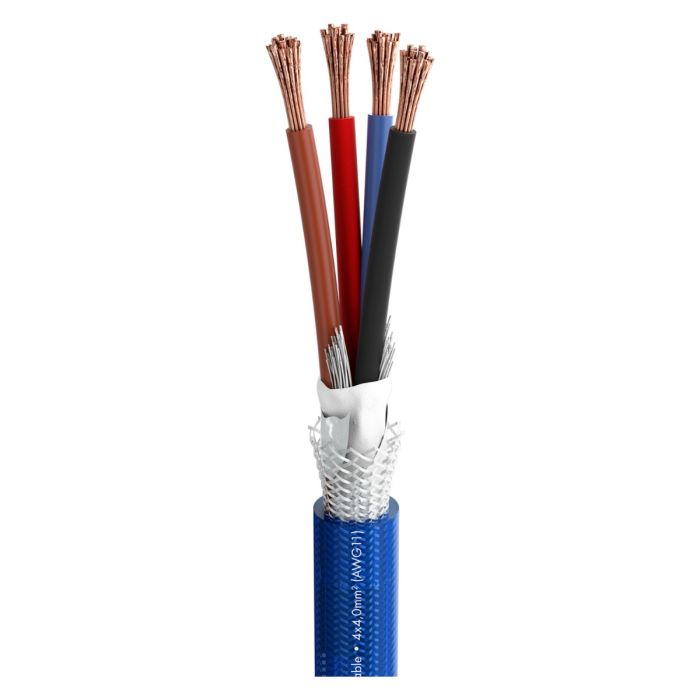

Sommer Cable Speaker Cable HighEnd, screened SC-Quadra Blue; 4 x 4,00 mm2; blue
by Sommer Cable- Extremely fast and linear transmission, even with excessive lengths
- Very easy to handle
- Numerous connecting options (bi-amping, bi-wiring, twinaxial cable)
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
SC-Quadra Blue
Speaker Cable HighEnd, screened
A light at the end of the tunnel…
will appear in front of your eyes when you connect the new SC-QUADRA BLUE to your reference-HiFi-system. Harmony not only in design, but also in sound is what the SC-QUARDEA BLUE will offer to you: absolutely linear cable tempting you to play experiment, as a bi-amping as well as bi-wiring connection or just as a simple input cable.
We have straded the copper litz to utilize the advantages of the solid copper wires. This results in outstanding conductivity and excellent damping values, which are especially important for longer lengths. Even for excessive lengths the SC-QUADRA BLUE works with almost no loss.
Allow yourself and your HiFi-system one of the best and most beautiful speaker cables we were able to develop over the last ten years.
Advantages:
Extremely fast and linear transmission, even with excessive lengths
Very easy to handle
Numerous connecting options (bi-amping, bi-wiring, twinaxial cable)
Excellent shielding against interference by AL / PT-foil and CU-cross braided shield construction
Use of ultra-grade copper quality with conductor smoothing (OFC Class6N, 99.9999%)
Application:
High quality HiFi-speaker multicore for higher demands
Stereo or bi-wiring connection with one cable
| Article number | 485-0052-440 |
| Name | SC-Quadra Blue |
| EAN | 4,05E+12 |
| Properties | Analog |
| Properties | OFC oxygen free copper |
| Application area | Installation |
| Application area | Studio / Broadcast |
| Application | Speaker Cable HighEnd, screened |
| Colour | blue |
| Colour detailed | blue |
| Construction | (4LIY4,0mm²)(ST)CY |
| Construction (audio) | (4LIY4,0mm²)CY |
| Jacket material | PVC |
| Jacket Ø [mm] | 15,5 |
| Number of Channels (audio) | 1 |
| Inner conductor (audio) | 4 |
| Inner conductor (audio) [mm²] | 4 |
| AWG (audio) | 11 |
| Shielding | Copper braiding |
| Shielding (audio) | Copper braiding tin-plated + AL / PT foil |
| Shielding factor [%] | 100 |
| Copper strands (audio) | 504 |
| Copper strand Ø (audio) [mm] | 0,1 |
| Conductor insulation material | Skin-PE gas-injected |
| Conductor insulation Ø [mm] | 4,1 |
| Weight per 1 m [g] | 340 |
| Fire load per m [kWh] | 0,55 |
| Style variant | round |
| Packing | 50m spool |
| Packing | bulk stock |
| Temperature min. [°C] | -20 |
| Temperature max. [°C] | 70 |
| Width [mm] | 15,5 |
| Height [mm] | 15,5 |
| Capac. cond./cond. per 1 m (audio) [pF] | 65 |
| Capacity wire/wire at 1 ft. (audio) [pF] | 19,812 |
| Insulation resist. per 1 km [GΩ] | 0,005 |
| Insulation resist. per 1000 feet [GΩ] | 0,0015 |
| Insulation resist. per 1 km (audio) [GΩ] | 0,005 |
| Insulation resist. per 1000 feet (audio) [GΩ] | 0,0015 |
| Conductor resistance per 1 km [Ω] | 4,5 |
| Conductor resistance per 1000 ft. [Ω] | 1,3716 |
| BPVo-Euroclass | Fca |
