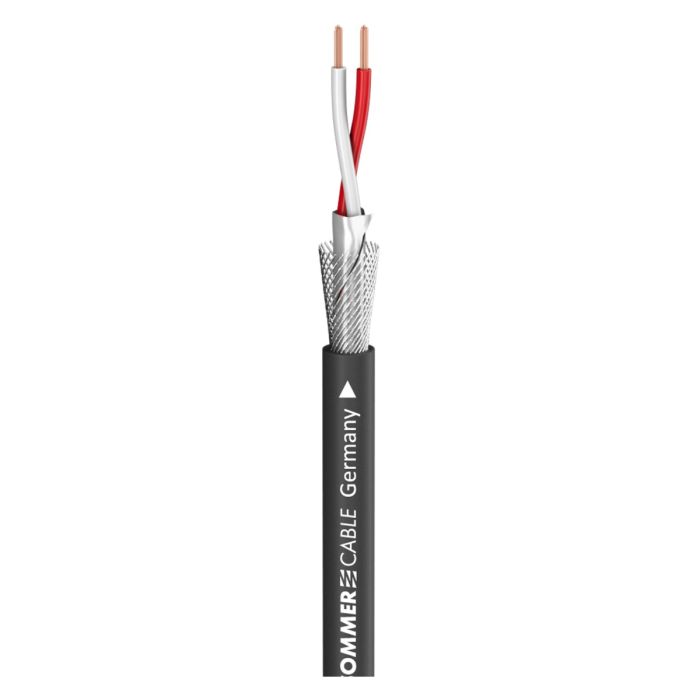

Sommer Cable SC-Goblin 2 x 0,14 mm2 PVC O 4,60 mm black

Sommer Cable SC-Goblin 2 x 0,14 mm2 PVC O 4,60 mm black

by Sommer Cable

Raspoloživost: Isporuka 14-20 dana

SKU

200-0351

Ideal for patch cables owing to its small outside diameter of 4.6 mm
Very good tensile strength due to the dual shielding construction and special
PVC jacket

2,00 €/15,07kn 1,60 €/12,06kn

Tečaj konverzije: 1 EUR = 7,53450 HRK

Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakiranja

SC-Goblin
Patch & Microphone Cable

Opis

No less, but lesser...
and easy to handle since it is available in four colors. Otherwise the technical and electrical construction is similar to the SC-SOURCE cable.
With its the small diameter it fits virtually all current TT-phone and B-gauge connectors and can also be used for Y-adapter cables. Due to its carefully designed shielding the cable offers the extra benefit of an amazing tread resistance and tensile strength. The white version is recommended for the unobtrusive installation in churches.

Advantages:

Ideal for patch cables owing to its small outside diameter of 4.6 mm
Very good tensile strength due to the dual shielding construction and special
PVC jacket
Linear sound transmission due to the special-designed conductor pairs and the
copper wire stranding
100 % shielding due to a metallised fleece plus additional
helical copper mesh screen

Application:

Professional studio patch connection
High-quality mini microphone cable
High-class phono and RCA connections
Long-distance MIDI cabling
Interior rack wiring and connection of audio components and effects devices

Specifikacije

Article number	200-0351
Name	SC-Goblin
EAN	4,05E+12
Properties	OFC oxygen free copper
Properties	Analog
Application area	Studio / Broadcast
Application area	Installation
Application	Patch & Microphone Cable
Colour	black
Colour detailed	black
Signal transmission	symmetrical
Construction	(2LI2Y0,14mm²)(ST)DY
Jacket material	PVC
Jacket Ø [mm]	4,6
Number of Channels (audio)	1
Inner conductor (audio)	2
Inner conductor (audio) [mm²]	0,14
Inner conductor Ø (audio) [mm]	0,42
AWG (audio)	26
Shielding	Copper spiral sleeve tin-plated + metalic fleece
Shielding factor [%]	100
Copper strands (audio)	18
Copper strand Ø (audio) [mm]	0,1
Conductor insulation material	PE
Conductor insulation Ø [mm]	1,05
Weight per 1 m [g]	27
UV-resistant	yes
Fire load per m [kWh]	0,1
Style variant	round
Packing	100 m spool
Temperature min. [°C]	-25
Temperature max. [°C]	70
Width [mm]	4,6
Height [mm]	4,6
Capac. cond./cond. per 1 m (audio) [pF]	65
Capacity wire/wire at 1 ft. (audio) [pF]	19,812
Capac. cond./shield. per 1 m (audio) [pF]	120
Capacity wire/electic screen at 1 ft. (audio) [pF]	36,576
Insulation resist. per 1 km [GΩ]	0,2
Insulation resist. per 1000 feet [GΩ]	0,061
Insulation resist. per 1 km (audio) [GΩ]	0,2
Insulation resist. per 1000 feet (audio) [GΩ]	0,061
Conductor resistance per 1 km [Ω]	140
Conductor resistance per 1000 ft. [Ω]	42,672
Shield. resistance per 1 km [Ω]	30
Shield. resistance per 1000 ft. [Ω]	9,144
BPVo-Euroclass	Fca
