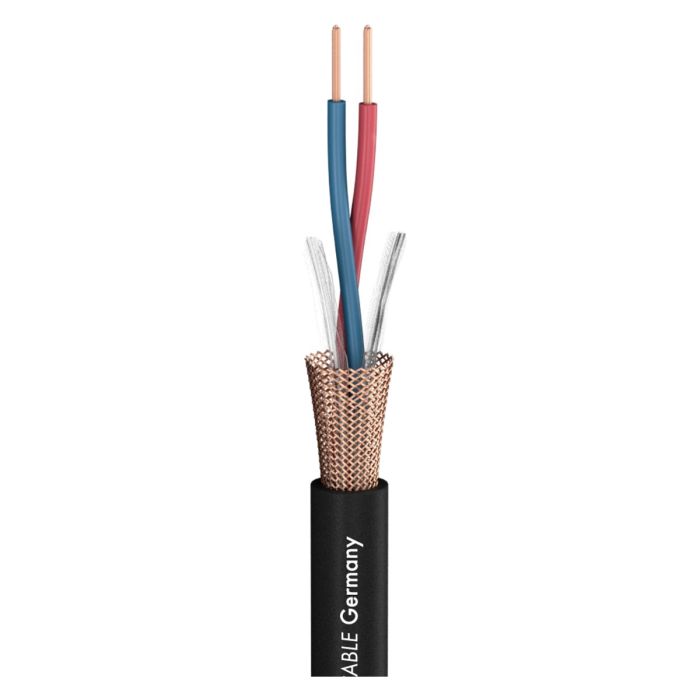

Sommer Cable Microphone Cable Club Series MKII; 2 x 0,34 mm2, black
by Sommer Cable
Availability:
14-20 days delivery
SKU
200-0051
- High transmission quality through the use of oxygen-free copper stranding with a large wire gauge of 2 x0,34 mm²
- Very low capacitance due to PE insulation
- Good shielding due to the dense Cu mesh screen
€2.86
€2.29
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
Club Series MKII
Microphone Cable
A wire gauge of 2 x 0,34 mm² is impressive and the electrical data speaks for itself. A cable that provides great performance data at an excellent price, used for stage and studio settings. The large cross section and the low capacitance guarantee outstanding transmission quality, even over longer distances. The shielding, made of bare copper wires has a 95 % optical coverage (instead of the usual 85 %). The robust, rubberlike, matt outer sleeve is preferred by performing musicians and guarantees outstanding flexibility even in lowest temperatures.
Advantages:
- High transmission quality through the use of oxygen-free copper stranding with a large wire gauge of 2 x0,34 mm²
- Very low capacitance due to PE insulation
- Good shielding due to the dense Cu mesh screen
- High flexibility makes it easy to reel
- Application:
- Stage application
- Studio operation
- Permanent Installation
Article number
|
200-0051 |
Name | Club Series MKII |
EAN | 4,05E+12 |
Properties | OFC oxygen free copper |
Properties | Analog |
Application area | Installation |
Application area | Studio / Broadcast |
Application area | Stage / live |
Application area | ELA 100 V |
Application | Microphone Cable |
Colour | black |
Colour detailed | black |
Signal transmission | symmetrical |
Construction | (2LI2Y0,34mm²)CY |
Jacket material | PVC |
Jacket Ø [mm] | 6,5 |
Number of Channels (audio) | 1 |
Inner conductor (audio) | 2 |
Inner conductor (audio) [mm²] | 0,34 |
Inner conductor Ø (audio) [mm] | 0,66 |
AWG (audio) | 22 |
Shielding | Copper braided shielding with 0.10 mm indiv. strands |
Shielding factor [%] | 95 |
Copper strands (audio) | 19 |
Copper strand Ø (audio) [mm] | 0,15 |
Conductor insulation material | PE |
Conductor insulation Ø [mm] | 1,5 |
Weight per 1 m [g] | 50 |
UV-resistant | yes |
Fire load per m [kWh] | 0,22 |
Style variant | round |
Packing | 500 m spool |
Packing | 100 m spool |
Temperature min. [°C] | -25 |
Temperature max. [°C] | 70 |
Width [mm] | 6,5 |
Height [mm] | 6,5 |
Capac. cond./cond. per 1 m (audio) [pF] | 58 |
Capacity wire/wire at 1 ft. (audio) [pF] | 17,6784 |
Capac. cond./shield. per 1 m (audio) [pF] | 115 |
Capacity wire/electic screen at 1 ft. (audio) [pF] | 35,052 |
Impedance [Ω] | 100 |
Insulation resist. per 1 km [GΩ] | 1 |
Insulation resist. per 1000 feet [GΩ] | 0,3048 |
Insulation resist. per 1 km (audio) [GΩ] | 1 |
Insulation resist. per 1000 feet (audio) [GΩ] | 0,3048 |
Conductor resistance per 1 km [Ω] | 55 |
Conductor resistance per 1000 ft. [Ω] | 16,764 |
Shield. resistance per 1 km [Ω] | 25 |
Shield. resistance per 1000 ft. [Ω] | 7,62 |
BPVo-Euroclass | Fca |
