Sommer Cable Meridian Install SP225, 2 x 2,50 mm2, FRNC, Silicon, E30 d=11,90 mm
by Sommer Cable
Availability:
14-20 days delivery
SKU
425-0055E30M

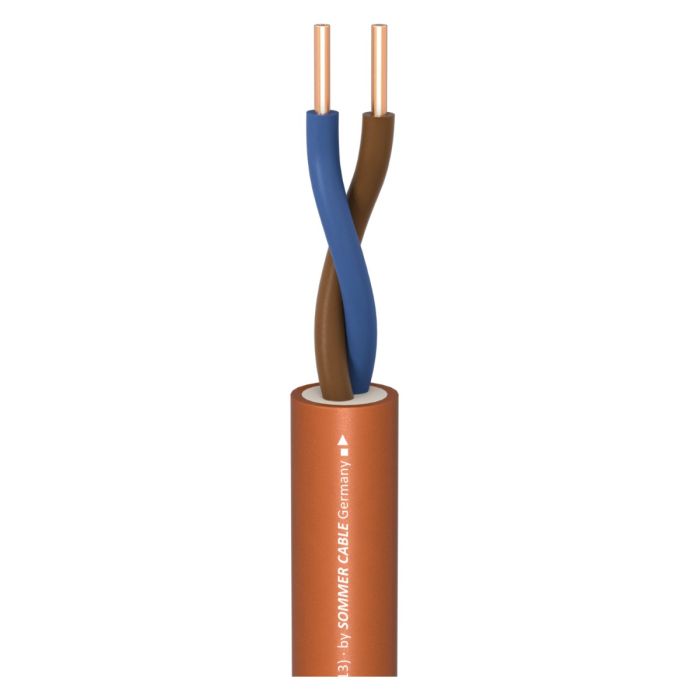

Installation cable Meridian Install SP225; 2 x 2,50 mm²; FRNC, Silicon, E30 Ø 11,90 mm; orange
€8.00
€6.40
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
This cable has been designed particularly for loudspeakers and here it meets all specific technical requirements.
FRNC (IEC 228, IEC 332-/1, IEC 332-3 Cat C, IEC 60331, IEC 61034-1/2, IEC 60754-2)
Advantages:
Small in diameter
Very durable due to the use of special coating mixtures
Affordable price
Application:
PA sound systems of all kinds
For fixed installation
For ELA technology
Cabling of HiFi systems
Article number | 425-0055E30M |
Name | Meridian Install SP225 |
EAN | 4,05E+12 |
Properties | Halogen-free / LSZH |
Properties | FRNC flame retardant |
Properties | Protection class E30 |
Properties | OFC oxygen free copper |
Properties | Analog |
Application area | Studio / Broadcast |
Application area | Installation |
Application area | ELA 100 V |
Application | Speaker Cable |
Application | Installation cable |
Colour | orange |
Colour detailed | orange |
Construction | (2LIY2,5mm²)Y |
Jacket material | FRNC, Silicon, E30 |
Jacket Ø [mm] | 11,9 |
Number of Channels (audio) | 1 |
Inner conductor (audio) | 2 |
Inner conductor (audio) [mm²] | 2,5 |
AWG (audio) | 13 |
Copper strands (audio) | 1 |
Conductor insulation Ø [mm] | 3,3 |
Weight per 1 m [g] | 151 |
UV-resistant | yes |
Fire load per m [kWh] | 0,38 |
Style variant | round |
Packing | 500 m spool |
Packing | 100 m spool |
Temperature min. [°C] | -40 |
Temperature max. [°C] | 90 |
Width [mm] | 11,9 |
Height [mm] | 11,9 |
Capac. cond./cond. per 1 m (audio) [pF] | 136 |
Capacity wire/wire at 1 ft. (audio) [pF] | 41,4528 |
Insulation resist. per 1 km [GΩ] | 0,005 |
Insulation resist. per 1000 feet [GΩ] | 0,0015 |
Insulation resist. per 1 km (audio) [GΩ] | 0,005 |
Insulation resist. per 1000 feet (audio) [GΩ] | 0,0015 |
Conductor resistance per 1 km [Ω] | 7,5 |
Conductor resistance per 1000 ft. [Ω] | 2,286 |
BPVo-Euroclass | Fca |
