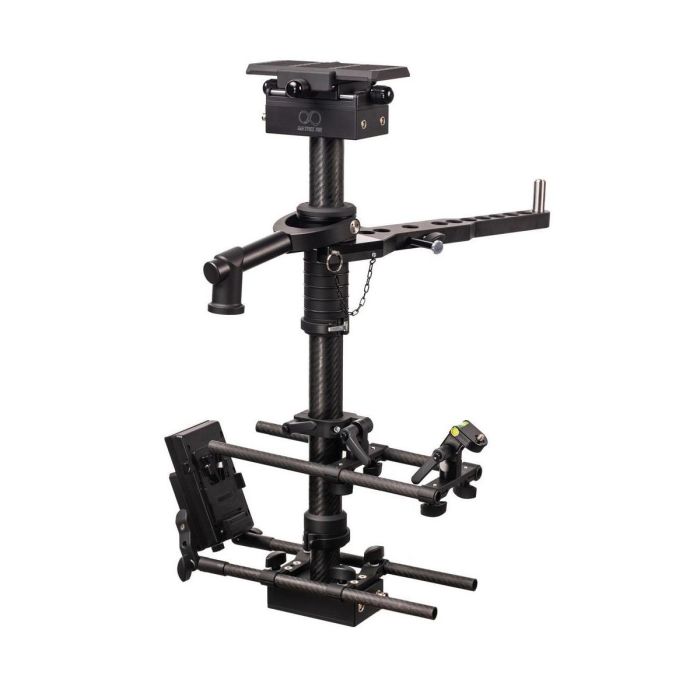

SmartSystem Matrix Sled R2 Vlock
by SmartSystem- Professional Sled with 40mm Telescopic Post designed to work with DJI Ronin 2
- No external cable needed to power Ronin 2. Forget the umbilical cable era
- Horizon Monitor system included in the bundle
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Micrometric Head
- 2-Section Carbon Fiber Center Post
- Ronin 2 Plate Adapter
- Ronin 2 Battery Holder
- Ronin 2 Yaw Locker
- Extended Docking Bracket
- V-Lock Battery Mount
- Standard Monitor Holder
- Hard Case
Every technology in cinema production has its peculiarities.
The goal is to look forward how to mix them to create something new, something special.
DJI RONIN 2 + Matrix SLED = Matrix R2
Ultra smooth gimbal 5-AXIS CNC machined completely Tool Free 40mm (1.57 ") telescopic carbon fiber post[from 20.86 " to 37 " (530mm to 940mm)]
Unique Ronin 2 tilt-able Battery plate Use them as standard on a sled NO EXTERNAL cable to power your favourite gimbal the MAGIC is all INSIDE the sled
Exclusive Monitor Stabilization System
Your monitor will be always horizontal no matter what is the angle of the sled post.
Thanks to Ronin 2 YAW Locker forget the annoying sound when used in PAN Lock mode. The exclusive Ronin 2 Plate Adapter let you mount the gimbal securely to the sled post.
The modularity of Matrix Sleds let you mount the micrometric head used for camera on the lower part of the sled for a perfect balance of the whole system.
An useful advantage: It can be reconfigures to became a standard Sled with all the bells and whistels of a pro system. The micrometric non floating head with automatic locking system can be putted back on its original position in seconds.
Vlock Battery Plate equipped with 1/4 and 3/8 threaded holes can be mounted on standard position over the Ronin 2 Battery plate adapter.
The horizontal system can be detached to let a standard monitor mount to be attached to the sled and of course, the lower part can be equipped with C-Battery like PRO Sled or Extreme Sled
SmartSystem Matrix R2 Sled Features
- Professional Sled with 40mm Telescopic Post designed to work with DJI Ronin 2 thanks to the Ronin 2 Plate adapter included in the bundle
- No external cable needed to power Ronin 2. Forget the umbilical cable era
- The standard Ronin 2 Battery can be attached as regular batteries with the ability to move fore-aft on carbon fiber rods and to tilt +90 Degree -90 Degree for perfect Balance
- Horizon Monitor system included in the bundle
- The topstage can be assembled directly on the lower part of the sled to grant ultra precision balancing with the Standard VLock or 3Studs battery plate included in the bundle
SmartSystem Matrix R2 Sled Specifications
Mount
V-Lock Mount
Material
Carbon Fiber
Center Column Height
20.9 to 36.6" (53 to 93cm)
Center Column Diameter
1.6" (40mm)
Number of Sections
2
Counterweights
None
Battery Info
Required, not included
Battery Material
Lithium-ion
Battery Type
Non-universal
Battery Quantity
1
Weight
Without Counterweights: 10.4 lbs (4.7kg)
