SmallRig x Caleb Pike VB212 mini V Mount Battery 4293
by SmallRig212Wh Lithium-Ion V-Mount Battery
Supports up to 10A Draw
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- SmallRig x Caleb Pike VB212 Mini V-Mount Battery
- USB-C Charging Cable (240W)

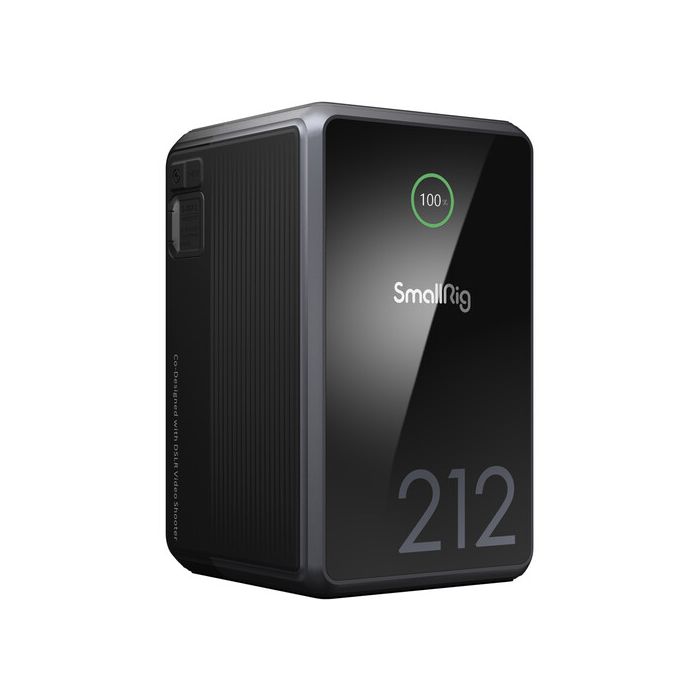

The x Caleb Pike VB212 Mini V-Mount Battery from SmallRig is an ultracompact, lightweight 212Wh capacity battery that can support up to a 10A draw with a nominal 14.76V output. This travel-friendly battery is suitable for powering handheld cameras, drones, and gimbals.
The VB212 provides multiple accessory ports, including one 14.8V D-Tap output, one 8 VDC barrel output, one 12 VDC barrel output, one USB-C output, and one USB-A output for powering various accessories, cameras, or mobile devices. The battery can be charged using a standard V-mount charger, an optional D-Tap charger, or via the USB-C input/output with a PD fast charger. A built-in bright OLED display shows the remaining battery capacity and status.
Features
- Intelligent BMS chip supports 140W (max) fast charging; fully charged in 2.5 hours
- High-capacity LG battery cell endures repeated charging and discharging; safe and stable
- Highly integrated design, ultracompact, and travel friendly
- Multiple interfaces: Two USB-C ports, two D-Tap ports, a USB-A port, an 8 VDC barrel output, and a 12 VDC barrel output
- Each interface adopts a parallel circuit to allow simultaneous USB-C and USB-A fast charging
- Aluminum, silicone, TPU, and PC V0 materials; four layers of aluminum frames on the inside with silicone coating on the outside make the battery robust, drop proof, heat resistant, and flame retardant
- Durable, scratch-resistant plastic and acrylic front cover
- TFT display shows battery status clearly and accurately
Charging Protocols
- V-mount: 14.76V, 19A (max.)
- D-Tap 1 : 14.76V, 10A (max.)
- D-Tap 2: 14.76V, 6A (max.)
- 8V output: 8V, 3A (max.)
- 12V output: 12V, 3A (max.)
- USB-C1 / USB-C2 PD3.1 / QC2.0 / QC3.0 / PPS / AFC / DCP-1.5A / APPLE-2.4A
- USB-A QC2.0 / QC3.0 / AFC/ DCP-1.5A / APPLE-2.4A
| Mount / Series Type | V-Mount |
| Chemistry | Lithium-Ion |
| Battery Capacity | 212.54 Wh |
| Output Voltage | 14.76 VDC |
| Maximum Load | 212 W, 10 A |
| Accessory I/O |
2x USB-C Input/Output 140 W Regulated
|
|
1x USB-A Input/Output 5 V / 3 A, 9 V / 3 A, 12V / 3A, 15V / 3A, 20 V / 5 A, 28 V / 5 A Regulated
|
|
|
2x D-Tap / P-Tap Output 14.76 V, 6 A Regulated
|
|
|
1x Barrel 2.1 mm Output 8 V, 3 A Regulated
|
|
|
1x Barrel 2.5 mm Output 12 V, 3 A Regulated
|
|
| USB Output | 5 V, 3 A |
| 9 V, 3 A | |
| 12 V, 3 A | |
| 15 V, 3 A | |
| 20 V, 5 A | |
| 28 V, 5 A | |
| Charging Voltage | 11.2 VDC |
| Operating Temperature | 5 to 140°F / -15 to 60°C |
| Charging Temperature | 32 to 122°F / 0 to 50°C |
| Certifications | FCC, CE, RoHS, PSE, RCM |
| Environmental Protection | No |
| Dimensions (W x H x D) | 5.1 x 3.3 x 3.1" / 130 x 83 x 80 mm |
| Weight | 2.89 lb / 1.31 kg |
| Packaging Info | |
| Package Weight | 3.585 lb |
| Box Dimensions (LxWxH) | 6.8 x 5.1 x 4.6" |
