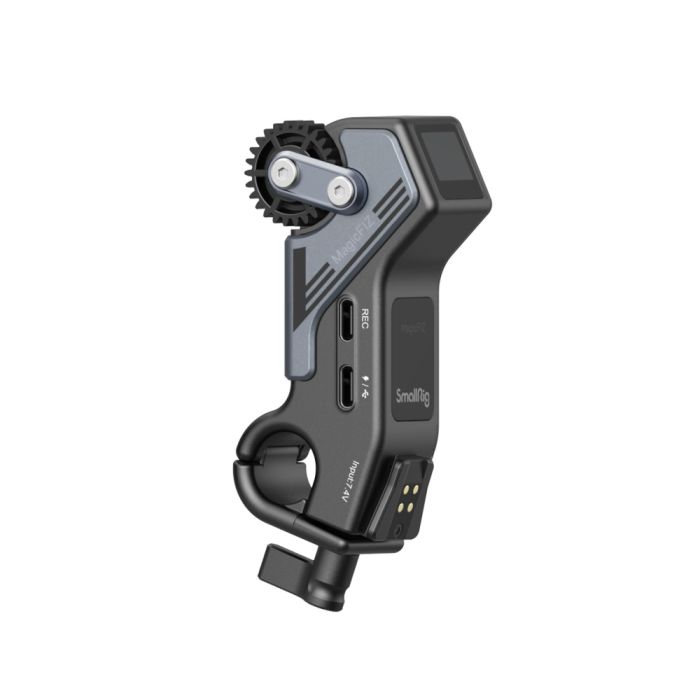

SmallRig Wireless Receiver Motor 3263
by SmallRigSmallRig Wireless Receiver Motor 3263, an accessory of the wireless follow focus system, comes with an ultra-low-power 0.52" OLED screen, supports 5V-16.8V wide input voltage, fast charging, and provides 9V/18W and 0.5N.m torque output.
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- 1 x Wireless Receiver Motor
SmallRig Wireless Receiver Motor 3263, an accessory of the wireless follow focus system, comes with an ultra-low-power 0.52" OLED screen, supports 5V-16.8V wide input voltage, fast charging, and provides 9V/18W and 0.5N.m torque output. It can be powered by Battery Plate (ID: 3777) with NP-F batteries or by D-Tap to USB-C Power Cable (ID: 3266) and DC to USB-C Power cable (ID: 3268) with V-Mount batteries. The Wireless Receiver Motor features an open-end rod clamp to avoid any obstacles on Φ15mm rod and allows for handheld and over-the-shoulder shooting for precise follow focus when working with Multi-Functional Wireless Handgrip 3917. It connects Wireless Handwheel Controller via control cables (ID: 3325, 2971, 2970, depending on your camera type) for wireless REC start/stops. Also, in cabled mode, it has an ultra-low delay of about 5ms.
- 0.5N.m peak torque.
- Supports fast charging and 5V-16.8V wide input voltage.
- Independent power supply.
- Quick-release Φ15mm rod clamp.
Note:
- Wireless Receiver Motor and Wireless Handwheel Controller can be operated only under the same frequency band and number.
- Calibration is required when the wireless receiver motor reverses rapidly or the handwheel screen displays abnormal location information.
- The two USB-C ports come with different functions.
- For instructions, please refer to the Wireless Follow Focus System User Manual.
Work With
- Φ49/Φ52/55/58/62/Φ67/72/77/82/86/80/85/90/95/114mm DSLR camera lens and cine lens
- Φ15 rail support system
- M0.8 lens and follow focus lens gear ring
- Incompatible with non-SmallRig wireless follow-focus system
- Supports fast charging
| Product Dimensions | 108.2 x 50.1 x 32.1mm |
| Package Dimensions | 121 x 104 x 44m |
| Product Weight | 117g±5g |
| Package Weight | 166g±5g |
| Material(s) | AL6061 |
