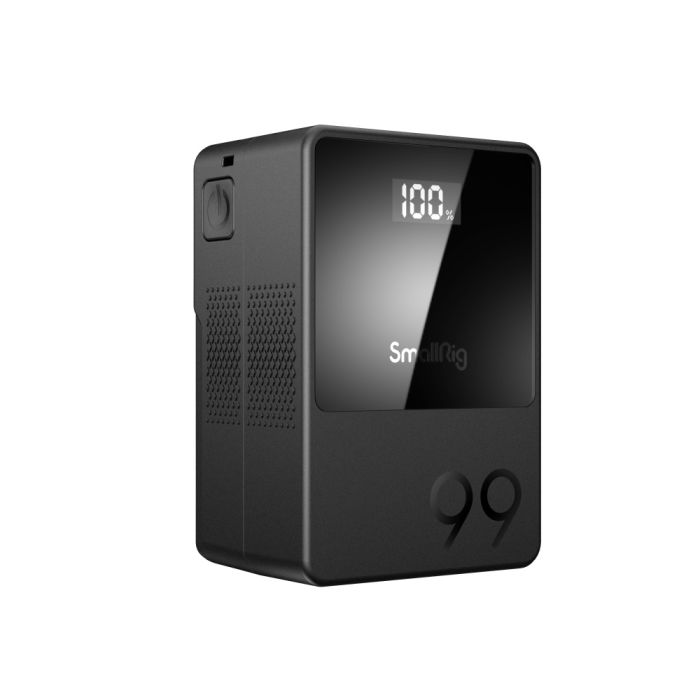

SmallRig VB99 mini V Mount Battery 3580
by SmallRigCompact and lightweight to be carried around:designed to lighten the burden of the film industry, the VB series are approximately 30% smaller than traditional V-mount batteries!
Intelligent BMS chip for efficient and safe use:a built-in highly integrated BMS chip takes up less space while supporting varied fast-charging protocols and bi-directional 65W (Max) USB-C PD fast charging!
Various interfaces for high compatibility: compatible with camera/ camcorder / monitor / wireless transmitter / video light, etc.
Practical OLED display for precise control:keeps track of the battery's working status at all times!
Premium li-batterywith guaranteed quality and safety: built-in high-capacity premium li-battery, a double guarantee of quality and performance!
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- SmallRig VB99 mini V Mount Battery 3580
-
User Manual × 1
VB99 mini V Mount Battery is about 70% of the size of a normal V-mount battery, given its highly integrated design which takes up less space, making it lighter and more portable! The highly integrated (fast charging protocol chip + MCU + voltage boost control) BMS chip supports a wide range of mainstream fast charging protocols (PD / QC / SCP / PPS / APPLE-2.4A etc.), bi-directional 65W (Max) USB-C PD fast charging, as well as adaptive voltage boost/ adaptive current regulation etc.! In addition, its customized intelligent BMS system ensures faster and safer charging by providing multiple protections against over-current / short-circuit / over-temperature / over-voltage etc. Such interfaces as USB-A / USB-C / D-tap / DC 8V / DC 12V / V Mount are also included for efficient charging / powering of camera / camcorder / monitor / wireless video transmitter / video light / mobile phone / laptop etc., without using a V-mount plate to convert! The BMS chip has a 16bit ADC / power meter algorithm, together with an MCU and an OLED digital display for you to keep track of the battery's status at all times. Built-in premium high-performance battery (no inflated capacity), which are rechargeable and stable, meet MSDS / UN38.3 / IEC62133 / UL2054 / UL62368 and other internationally recognized standards, allowing you to capture every moment without burden!
|
Items |
Parameters |
|
Material |
Fireproof PC |
|
Capacity |
14.8V 6.7Ah 99Wh |
|
Rated Power |
Discharge: 99W Charge: 65W |
|
V Mount / D-TAP Input |
8A (Max) |
|
V Mount / D-TAP Output |
14.8V / 14A (Max) |
|
USB-A Output QC2.0 / QC3.0 / AFC / FCP / SCP / DCP-1.5A / APPLE-2.4A |
QC2.0 / AFC / FCP: 5V / 3A, 9V / 3A, 12V /2A QC3.0: 4.2-9V / 3A, 9-12V / 2A SCP: 4.5V / 5A, 5V / 4.5A DCP-1.5A: 5V / 1.5A APPLE-2.4A: 5V / 2.4A |
|
USB-C Input / Output Input 65W (Max) Output 65W (Max) PD3.0 / QC2.0 / QC3.0 / PPS / AFC / FCP / SCP / DCP-1.5A / APPLE-2.4A |
PD3.0: 5V / 3A, 9V / 3A, 12V / 3A, 15V / 3A, 20V / 3.25A QC2.0 / AFC / FCP: 5V / 3A, 9V / 3A, 12V / 2A QC3.0: 4.2-9V / 2A, 9-12V / 2A SCP: 4.5V / 5A, 5V / 4.5A DCP-1.5A: 5V / 1.5A PPS: 3.3-21V / 3A APPLE-2.4A: 5V / 2.4A |
|
DC1 Output |
8V / Max3A |
|
DC2 Output |
12V/Max3A |
|
Cutoff Voltage |
11V |
|
Optional Charging Method |
16.8V D-TAP charger, USB-C charger such as GaN charger with PD fast charging tech (up to 65W) |
|
Product Dimensions |
107.0 × 73.0 × 53.0 mm |
|
Net Weight |
550 g ±10 g |
|
Package Dimensions |
147.0 × 114.0 × 75.0 mm |
|
Gross Weight |
740 g ± 10 g |
