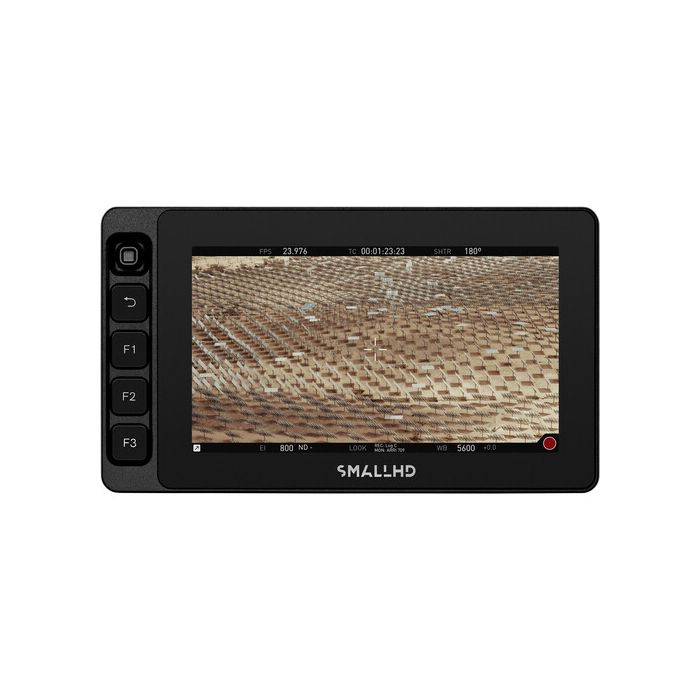

SmallHD Ultra 5
by SmallHD5" 1920 x 1080 Touchscreen Display
3G-SDI and HDMI Inputs & Outputs
10-Bit 4:2:2 DCI-P3 Color Gamut
5-Pin USB & Ethernet Control Ports
Power via 2-Pin LEMO Input
Milled Aluminum Unibody Housing
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- SmallHD ULTRA 5 Bright Touchscreen Monitor
Add an ultra-bright monitor to your production rig with the SmallHD ULTRA 5 Bright Touchscreen Monitor, which features a 3000 bright cd/m² display for viewing in just about any indoor or outdoor environment. The 5" 1920 x 1080 touchscreen LCD provides a sharp image and 10-bit 4:2:2 Rec. 709 color processing, ideal for focus pulling and image analysis on set and in the field.
The ULTRA 5 features HDMI and 3G-SDI inputs and outputs, and it also features physical buttons for use in conditions that might require gloves. It can also be used to control your camera, and it features a 5-pin USB port for optional RED camera control, and it also has an Ethernet port for optional ARRI and Sony VENICE camera control. All the functionality of the monitor is available via PageOS 5, which provides advanced functionality with a simple and efficient graphical user interface.
Features
Daylight-viewable, 5" touchscreen on-camera monitor with 3000 cd/m² brightness
Slim, lightweight design with 10-bit 4:2:2 DCI-P3 color, touchscreen LCD panel
HDMI and 3G-SDI inputs and outputs
Buttons around the monitor allow you to use the monitor in any conditions
The PageOS 5 toolset with EL Zone Exposure Assist, best-in-class waveform, false color, Look-Around Camera Control (sold separately), advanced Teradek RT overlays, and more
Four 1/4"-20 mounting threads on the left, right, bottom, and back of the monitor
Power using a 2-pin power input
Optional RED camera control via the micro-USB port
Optional ARRI/Sony VENICE camera control via the Ethernet port
Durable aluminum chassis
Display Tools
Pixel zoom: 2x and 4x with pinch-zoom
Aspect ratios: Preset and customizable
DSLR scale: Canon 5D Mk II and Canon 7D
Custom scale: Underscan only
Anamorphic de-squeeze: 1.33x, 1.5x, 1.66x, 2.0x
Image flip: Auto and manual
Image rotation: Auto and manual
Cross conversion: HDMI to SDI, SDI to HDMI
Color focus assist: Adjustable style and intensity
Peaking: Adjustable intensity
False color: Spectrum, ARRI-style, and customizable
Zebra: Dual, customizable
Waveform: Luma and RGB, customizable with region-of-interest highlighting
Vectorscope
RGB parade, customizable
Histogram: Luma and RGB
Image capture, with dedicated button and image gallery
Custom LUTs: Load as looks on pages or as system-wide calibration via the settings menu
LUT import: Via SD card or USB storage device
Image overlay: Opacity slider and blink setting
Image capture
Audio meters: Up to eight channels
| Panel Type | LCD |
| Display Size | 5.0" / 12.7 cm |
| Resolution | 1920 x 1080 |
| Aspect Ratio | 16:09 |
| Touchscreen | Yes |
| Maximum Brightness | 3000 cd/m2 |
| Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) |
| Pixels Per Inch (ppi) | 443 ppi |
| Color Gamut | 100% DCI-P3 |
| Image Controls | Blue Only, False Color, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Waveform |
| Video I/O | 1 x BNC (3G-SDI) Output |
| 1 x HDMI Output | |
| 1 x BNC (3G-SDI) Input | |
| 1 x HDMI Input | |
| Embedded Audio | HDMI |
| SDI | |
| Audio I/O | 1 x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | None |
| Other I/O | 1 x LEMO 5-Pin Output |
| 1 x RJ45 Output | |
| Media/Memory Card Slot | None |
| Wi-Fi | None |
| Video Format | SDI (10-Bit 4:2:2) |
| 1080p: 60/59.94/50/30/29.97/25/24/23.98 | |
| 1080PsF: 30/29.97/25/24/23.98 | |
| 1080i: 60/59.94/50 | |
| 720p: 60/59.94/50/30/29.97/25/24/23.98 | |
| 480i | |
| 576i | |
| HDMI (8/10/12-Bit) | |
| UHD 4K: 30 | |
| 1080p: 60/59.94/50/30/25/24/23.98 | |
| 1080PsF: 30/25/24/23.98 | |
| 1080i: 60/59.94/50 | |
| 720p: 120/119.88/100/60/59.94/50/30/25/24/23.98 | |
| 576p: 100/50 | |
| 480p: 120/119.88/60/59.94 | |
| 480i: 240/239.76/120/119.88/60/59.94 | |
| 576i: 200/100/50 | |
| Battery Type | None |
| Mounting | 3 x 1/4"-20 Female |
| Certifications | CE, FCC, IC, RoHS |
| Material of Construction | Aluminum |
