SmallHD Indie 7
by SmallHD
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- SmallHD INDIE 7 Touchscreen On-Camera Monitor

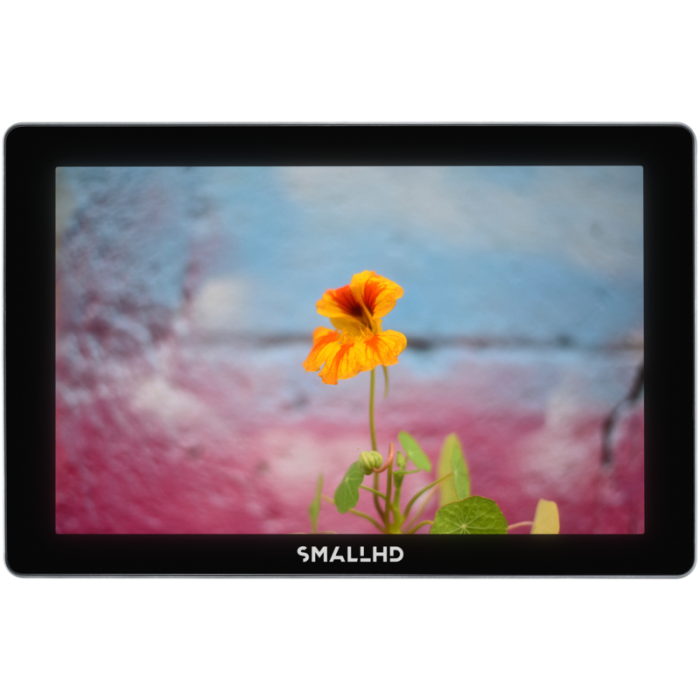

The lightweight INDIE 7 Touchscreen On-Camera Monitor from SmallHD provides professional monitoring in a sharp 7" IPS LCD with 1920 x 1200 resolution, 10-bit color processing, 1000 cd/m² brightness, 1000:1 contrast ratio, touchscreen control, and updated SmallHD PageOS 4 firmware. It features HDMI and 3G-SDI inputs and outputs, and it supports up to UHD 4K video input.
The INDIE 7 is powered using the included L-series battery plate or using the 2mm barrel input with a DC adapter. It can also be powered using separately available Gold mount or V-mount battery plates. An SD card slot allows you to import custom 3D LUTs and a micro-USB port to provide upgrades to the display. Four 1/4"-20 threads allow you to mount the monitor in a variety of configurations. The 3.5mm headphone jack allows you to monitor the embedded audio from the HDMI or 3G-SDI inputs.
Using the intuitive SmallRig PageOS 4, you can turn on and save pages of various monitoring tools and focusing aids with a finger tap. It also features a settings dashboard, preconfigured pages and tabs, templates, exposure assist, overlays, function buttons, and numerous improvements, while maintaining all the features of its predecessor, OS3.
Number of Displays | 1 |
Panel Type | IPS-Type LCD |
Display Size | 7.02" / 17.8 cm |
Active Area | 5.95 x 3.72" / 15.11 x 9.45 cm |
Screen Resolution | 1920 x 1200 |
Aspect Ratio | 16:9 |
Viewing Angle | Horizontal: 160° |
Touchscreen | Yes |
Maximum Brightness | 1000 cd/m2 |
Contrast Ratio | 1000:1 |
Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) |
Pixels Per Inch (ppi) | 323 ppi |
Color Gamut | 75% Rec. 709 |
Real-Time LUT Monitoring | SDR, HDR |
Image Controls | Anamorphic De-Squeeze, False Color, Focus Assist, Focus Peaking, Histogram, Image Flip, Image Rotate, Pixel Zoom, Pixel-to-Pixel Zoom, RGB Parade, Scaling, Vectorscope, Waveform, Zebra |
Video | 1 x HDMI Type A Input 1 x HDMI Type A Output 1 x BNC (3G-SDI/HD-SDI) Input 1 x BNC (3G-SDI/HD-SDI) Output |
Embedded Audio | HDMI SDI |
Audio | 1 x 3.5 mm Headphone Output |
Built-In Speaker | None |
Power | 1 x Barrel (10 VDC) Input |
Other I/O | 1 x USB 2.0 (Micro-USB) Input |
Card Slot | 1 x SD |
Wi-Fi | None |
Video Format | HDMI (8/10/12/16-Bit 4:4:4 RGB, YCC) UHD 4K: 30/29.97/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 120/119.88/100/60/59.94/50 720p: 120/119.88/100/60/59.94/50/30/29.97/25/24/23.98 576p: 200/100/50 480p: 240/239.76/120/119.88/100/60/59.94 480i: 240/239.76/120/119.88/100/60/59.94 576i: 200/100/50 SDI (10-Bit 4:2:2 YCC) UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50/25 480p: 60 576i: 50 480i: 59.94 |
Video Signal Conversion | HDMI to SDI SDI to HDMI |
DC Input Power | 10 to 34 VDC |
Battery Type | 1 x L-Series (Interchangeable Mount) |
Power Consumption | 17.3 W |
Mounting | 4 x 1/4"-20 Female |
Certifications | CE, FCC, IC, RoHS, as per Manufacturer |
Operating Temperature | 30 to 100°F / -1 to 37°C |
Storage Temperature | 0 to 120°F / -17 to 48°C |
Material of Construction | Aluminum |
Dimensions (W x H x D) | 7.09 x 4.67 x 1.32" / 18.01 x 11.86 x 3.35 cm |
Weight | 26 oz / 737 g |
