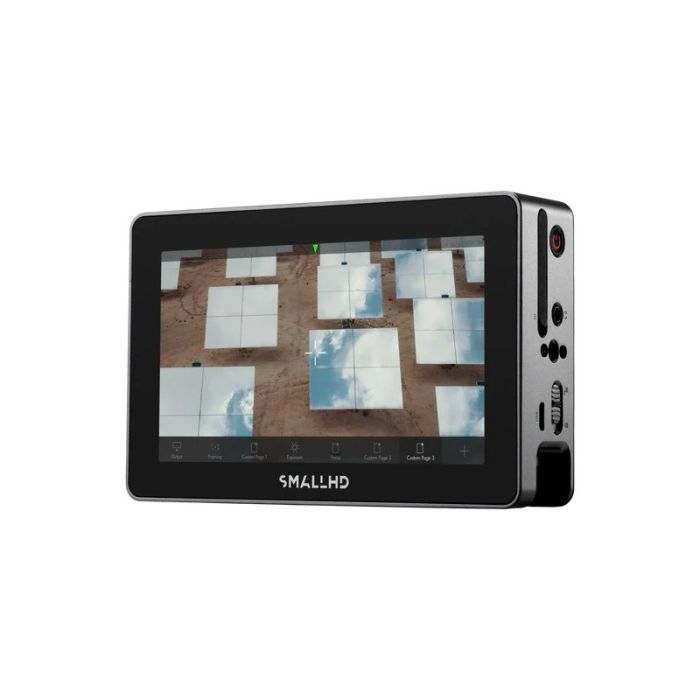

SmallHD Indie 5
by SmallHDIndie 5 is the smallest and lightest monitor in the Smart 5 Series, with optional camera-control functionality, all your favorite PageOS 5 tools, and customization on a premium touchscreen 5-inch monitor. At 1000nit brightness, this compact model is also daylight-viewable.
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- SmallHD Indie 5
Indie 5 is the smallest and lightest monitor in the Smart 5 Series, with optional camera-control functionality, all your favorite PageOS 5 tools, and customization on a premium touchscreen 5-inch monitor. At 1000nit brightness, this compact model is also daylight-viewable.
Indie 5’s hyper-responsive touchscreen display, with 1080p resolution, is backed by PageOS 5. With Indie 5, you’ll be able to access our intuitive UI/UX for at-a-glance adjustments and effortless navigation, integrated tools for more accurate exposure and color control, Look-Around Camera Control, EL Zone, Advanced Teradek RT overlays, and so much more.
- Model: 16-0525
- Display: 5-inch Touchscreen, 1920x1080, 440 PPI
- Input: 1x 3G-SDI [IN], 1x HDMI 2.0 (4Kp30) [IN]
- Output: 1x 3G-SDI [IN/OUT], 1x HDMI 2.0 (4Kp30) [OUT], 1x 3.5mm Stereo Headphone Jack
- Power Input: 5.5mm x 2.0mm barrel connector (DC 10-34v), Integrated Sony L-Series Plate
- Data I/O: 1x SD Card Slot, 1x Micro USB
Indie 5 is our entry-level Smart 5 field monitor, ideal for professionals on an indie budget.
Camera Control for RED® DSMC2® & RCP2™
Transform your touchscreen into the central command hub of your camera. SmallHD’s proprietary software enables unfettered access to RED DSMC2, KOMODO®, and V-RAPTOR™ camera functions and project settings such as Start/Stop Record, FPS, Shutter Speed, ISO, Color Temperature/White Balance, Clip Playback, and more. *Individual Camera Control software licenses are sold separately.
| Environmental | |
| Item Weight (oz) | 14.4 |
| Height (in) | 3.39 |
| Width (in) | 5.28 |
| Length/Depth (in) | 1.52 |
| Mount Points | 6x 1/4-20 Mounting Points |
| Display | |
| Panel Type | Touch-Screen |
| Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Max Brightness | 1000nits |
| Backlight Type | Edgelit |
| Input Signal | |
| 3G-SDI Input Types | YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100 |
| HD-SDI Input Types | YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98 |
| SD-SDI Input Types | YCC 4:2:2 @ 10-bits: 480i59.94, 576i50 |
| HDMI Input Types | YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200 YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50 |
| Audio Input Types | HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels |
| Output Signal | |
| 3G-SDI Output Types | YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100 |
| HD-SDI Output Types | YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98 |
| SD-SDI Output Types | YCC 4:2:2 @ 10-bits: 480i59.94, 576i50 |
| HDMI Output Types | YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200 YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50 |
| Audio Output Types | HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection |
| Connector Type | |
| SDI | 1x 3G-SDI (In), 1x 3G-SDI (In/Out) |
| HDMI | 1x HDMI 2.0 (4Kp30) [In], 1x HDMI 2.0 (4Kp30) [Out] |
| Audio | 1x 3.5mm Stereo Headphone Jack |
| Data I/O | |
| Storage Media | 1x SD Card Slot |
| USB | 1x Micro USB |
| Power | |
| Input | Barrel Power Input |
| Overload Protection | DC input: Reverse polarity |
| Battery Chemistry | Li-ion |
| Software | |
| Pixel Zoom | Yes |
| Focus Assist | Yes |
| Peaking | Yes |
| False Color | Customizable False Color Overlays |
| Waveform | Customizable 4K Waveform w/Region of Interest Highlighting (Coming Soon) |
| Custom LUTS | 17pt 3D-LUT on Output/Input 33pt 3D-LUT on Output/Input |
