SmallHD Cine 18
by SmallHD- 4" Display, UHD 4K Resolution
- 1100 cd/m², SmallHD OS4.1
- 12G-SDI and HDMI 2.0 Inputs and Outputs
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- SmallHD Cine 18" 4K High-Bright Production Monitor
- HDMI Cable (3')
- Monitor Feet
- Monitor Handle
- Power Supply
- Microfiber Cleaning Cloth

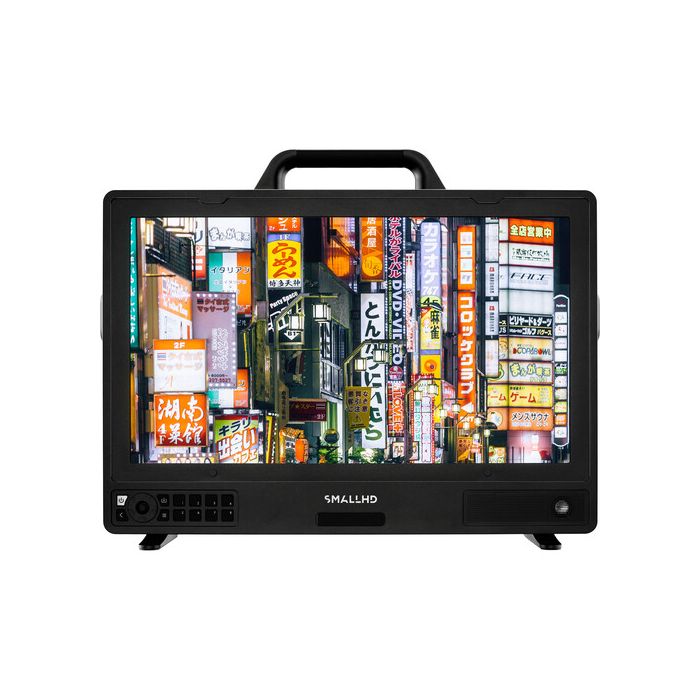

Add a professional UHD 4K monitor to your DIT station, video village, or studio with the Cine 18" 4K High-Bright Production Monitor from SmallHD. Featuring the updated SmallHD OS4.1, the monitor provides a crisp 4K image with 3840 x 2160 resolution, 10-bit (8+2 FRC) color intelligence, 1300:1 contrast ratio, and 1100 cd/m² brightness for use outdoors.
The edge-lit display features four 12G/6G/3G/HD-SDI inputs and four 12G/6G/3G/HD-SDI outputs, as well as one HDMI 2.0 input. All functionality of the monitor is accessed via the innovative Page Builder in OS4.1, which features a full-featured UI, preconfigured pages, and page tabs. Other monitoring features include a calibration wizard, false color overlays, waveform, pixel zoom, focus assist, peaking, and improved function buttons.
The monitor can be mounted using the VESA pattern on the back or by 1/4"-20 threads around the top and sides of the monitor. You can power the monitor using a 4-pin XLR input or via a separately available dual V-mount or Gold mount battery plate, and they are hot-swappable. Data inputs and output can be performed using the SD card slot to load 3D LUTs, and the monitor also features an RJ45 Ethernet port and an RJ45 GPI port for additional data and configuration. There is a 3.5mm headphone output to monitor the embedded audio.
Key Features
- 4" UHD 4K monitor
- 3840 x 2160 resolution
- 1100 cd/m² brightness
- 1300:1 contrast ratio
- Four 12G/6G/3G/HD-SDI inputs and four 12G/6G/3G/HD-SDI outputs
- One HDMI 2.0 input
- SD card slot for 3D LUTs
- One RJ45 Ethernet port
- One RJ45 GPI port
- 1/4"-20 mounting threads on top and sides
SmallHD OS4.1
- Internal calibration wizard
- Color pipe color-space formatting
- Settings dashboard for easy access to common settings
- Preconfigured pages
- Page tabs
- Customizable false color overlays
- Customizable 4K waveform with region-of-interest highlighting
- Improved function buttons
- Pixel zoom, focus assist, peaking
- Total UI overhaul
Power Options
- One 4-pin XLR 12 to 24V, 12A input
- Two 2-pin LEMO 12V, 2A outputs
- One USB Type-A 5V, 2.4A output
- One USB Type-A 5V, 1.5A output
- One USB Type-C 5V, 1.5A output
- Separately available V-mount or Gold mount battery plates
- XLR and battery options are hot-swappable
SmallHD Cine 18 4K Monitor Specs
Display
|
Panel Type |
LCD |
|
Display Size |
18.4" / 46.7 cm |
|
Resolution |
3840 x 2160 |
|
Aspect Ratio |
16:9 |
|
Touchscreen |
No |
|
Maximum Brightness |
1000 cd/m2 |
|
Contrast Ratio |
1300:1 |
|
Bit Depth / Color Support |
8-Bit+FRC (1.07 Billion Colors) |
|
HDR Compatibility |
Yes |
|
Pixels Per Inch (ppi) |
244 ppi |
|
Color Gamut |
100% Rec. 709 |
|
Image Controls |
False Color, Focus Assist, Focus Peaking, Pixel Zoom, Waveform |
I/O
|
Video |
1 x HDMI Type A (HDMI 2.0) Input |
|
Embedded Audio |
HDMI |
|
Audio |
1 x 1/8" / 3.5 mm Headphone Output |
|
Built-In Speaker |
None |
|
Power I/O |
1 x XLR 4-Pin (18 A / 34 VDC) Input |
|
Other I/O |
1 x GPI (RJ45) Input/Output |
|
Media/Memory Card Slot |
Single Slot: SD/SDHC |
|
Wi-Fi |
None |
Format Support
|
Video Format |
HDMI |
Power
|
DC Input Power |
12 to 34 VDC at 18 A |
|
Battery Type |
2 x V-Mount, Gold Mount (Interchangeable Mount) |
|
Power Consumption |
210 W (Maximum) |
Mounting
|
Mounting |
1/4"-20 Female |
General
|
Weight |
11.16 lb / 5.06 kg |
