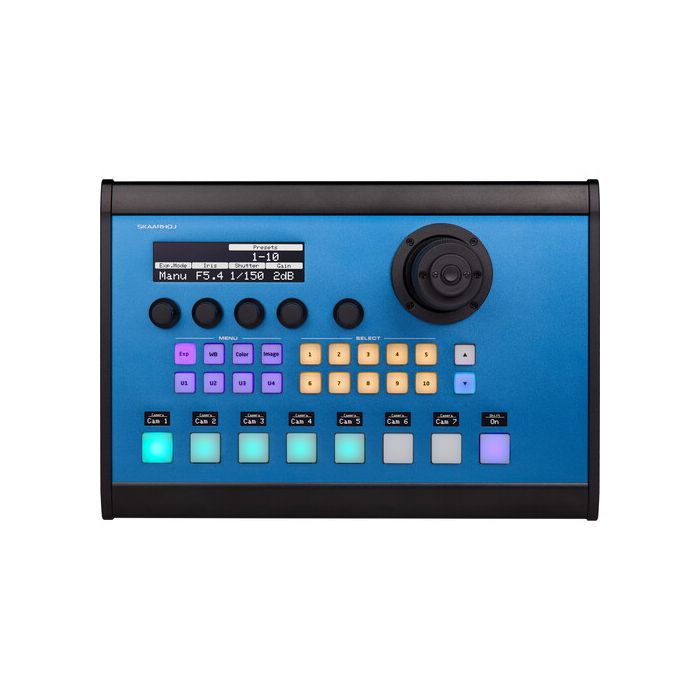

SKAARHOJ PTZ Pro
by Skaarhoj- IP PTZ Controller with PoE Support
- Supports Multiple PTZ Encoders
- 3-Axis Joystick, Dedicated Focus Knob
- RGB Backlit Keys with Labeling Presets
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- SKAARHOJ PTZ Pro Camera Controller
- 12V Power Supply
- USB Cable
- Ethernet Cable
Perform precise pan/tilt/zoom control movements and have configuration and selection of PTZ cameras at your fingertips with the PTZ Pro Camera Controller from SKAARHOJ. Featuring a precision 3-axis joystick and dedicated focus knob, this compact controller makes it easy to pan, tilt, and rotate your cameras while also controlling their focus and zoom. The control panel features four backlit encoder knobs, ten camera selection buttons, and multiple programmable multifunction keys for presets and menu navigation.
The PTZ Pro runs the SKAARHOJ-developed open-source UniSketch OS, which is user programmable to fit specific workflows. PoE (Power-over-Ethernet) technology simplifies setup by enabling data and power to travel via a single cable. The controller is compatible with VISCA devices as well as other IP-controlled cameras from brands such as AIDA, Lumens, NewTek, Panasonic, PTZ Optics, and Sony.
A power adapter and an Ethernet cable are included in the box. There are available options to upgrade the joystick to the Hall Effect ergonomic joystick, as well as an option for an SDI upgrade component for use with Blackmagic Arduino Shields and fiber converters.
Key Features
- Four backlit encoder knobs and a bright status display
- Three axis-joystick and dedicated focus knob
- Backlit display for status and menu navigation
- Camera select buttons and programmable multifunction keys with bright RGB displays for presets and camera selection
- Slim, ergonomic console form factor
- Ethernet with PoE (IEEE802.3af)
- UniSketch OS
Compatibility
- Works with a wide range of devices and systems including generic VISCA-compatible devices, AIDA Imaging PTZ3-X20L, Lumens VC-A50P, NewTek NDIHX-PTZ1, Panasonic AW-HEx, PTZOptics PT20X, and Sony BRC-H900, BRC-X1000, and SRG-300
- Optional Hall Effect joystick upgrade for increased ergonomic comfort and motion precision
- Optional SDI extension for Blackmagic Arduino and fiber converters for camera control data
| SKAARHOJ PTZ Pro Specs | |
|
General
|
|
| Number of Supported Cameras | 10 Channels |
| Supported Control Protocols | IP |
| VISCA | |
| Control Interface | 1 x RJ45 (IP Control, VISCA) Output |
| Other I/O | 1 x USB Micro-B (USB 3.1 / USB 3.2 Gen 1) Input |
| Controls | 1 x Pan/Tilt Joystick |
| 1 x Focus Knob | |
| 4 x Multifunction Knobs | |
| 10 x Multifunction, Camera Selection Buttons | |
| 10 x Multifunction Buttons | |
| 8 x Programmable Buttons | |
| Presets | 10 via IP, VISCA |
|
Display
|
|
| Touchscreen | No |
|
Power
|
|
| PoE Support | PoE 802.3af |
| Power Connectors | 1 x JEITA |
| DC Input Power | 12 VDC |
|
Physical
|
|
| Security Lock Support | None |
| Dimensions | 10.1 x 7 x 5.2" / 25.7 x 17.8 x 13.2 cm |
| Weight | 2.7 lb / 1.2 kg |
|
Packaging Info
|
|
| Package Weight | 4.9 lb |
| Box Dimensions (LxWxH) | 17 x 17 x 5" |
