SKAARHOJ PTZ Fly w/SDI option
by Skaarhoj
Availability:
14-20 days delivery
SKU
PTZ-Fly-S-V1
- PTZ Camera Control
- Full-Size 3-Axis Joystick
- 4 x Encoder Knobs with OLED Displays
- 6 x Programmable Keys with OLED Displays
€1,868.25
€1,494.60
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- SKAARHOJ PTZ Fly Controller with SDI In/Out
- 12V Power Supply
- Micro-USB Programming Cable
- Networking Cable

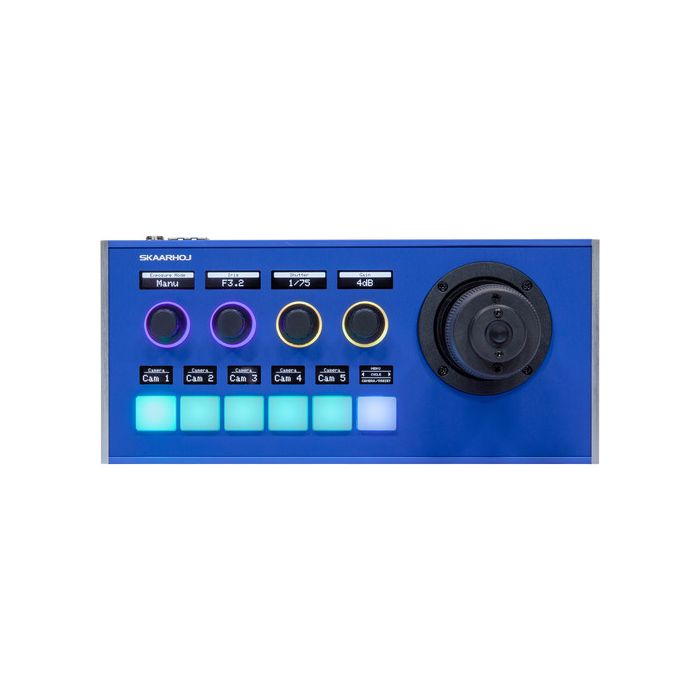

Get fingertip control of PTZ camera movement with the PTZ Fly with SDI I/O from SKAARHOJ. Featuring a full-size three-axis joystick, this compact controller makes it easy to pan, tilt, and rotate your cameras. Also featured are four backlit encoder knobs with wide-screen OLED displays and six programmable four-way multifunction keys for presets and camera selection. Additionally, this version of the PTZ Fly comes equipped with SDI input and output ports for Blackmagic Design camera control.
The PTZ Fly runs the SKAARHOJ-developed open-source UniSketch OS, which is user-programmable to fit specific workflows. PoE technology simplifies setup by enabling signals and power to travel via a single cable.
- Four backlit encoder knobs with wide-screen OLED displays
- Three-axis joystick
- Six programmable four-way multifunction keys with bright OLED displays for presets and camera selection
- SDI in/out ports for Blackmagic Design camera control
- Slim, ergonomic console form factor
- Ethernet with PoE (IEEE802.3af)
- UniSketch OS
- Works with a wide range of devices an systems including AIDA Imaging PTZ3-X2OL, Lumens VC-A50P, NewTek NDIHX-PTZ1, Panasonic AW-HEx, PTZOptics PT20X, and Sony BRC-Z700, BRC-H900, BRC-X1000 & SRG-300
SKAARHOJ PTZ Fly Specs | |
General
|
|
Control Interface | 1 x RJ45 (LAN) |
Other I/O | 1 x USB Micro-B |
Controls | 4 x Backlit Knobs |
6 x Programmable, Multifunction Keys | |
1 x 3-Axis Joystick | |
Power
|
|
PoE Support | PoE 802.3af |
Power Connectors | 1 x Barrel / Coaxial |
Physical
|
|
Dimensions | 17.7 x 5.9 x 5.5" / 45 x 15 x 14 cm |
Weight | 3.6 lb / 1650 g |
Packaging Info
|
|
Package Weight | 2.84 lb |
Box Dimensions (LxWxH) | 9.1 x 5.9 x 5.7" |
