SKAARHOJ PTZ Fly w/Hall Effect Joystick and SDI option
by Skaarhoj- High-Quality backlit encoders with widescreen OLED displays
- 3-Axis joystick
- Programmable four-way buttons with bright OLED displays
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- PTZ Fly-js-v1
- 12V power supply
- USB programming cable
- Networking cable
- UniSketch OS
- Manual

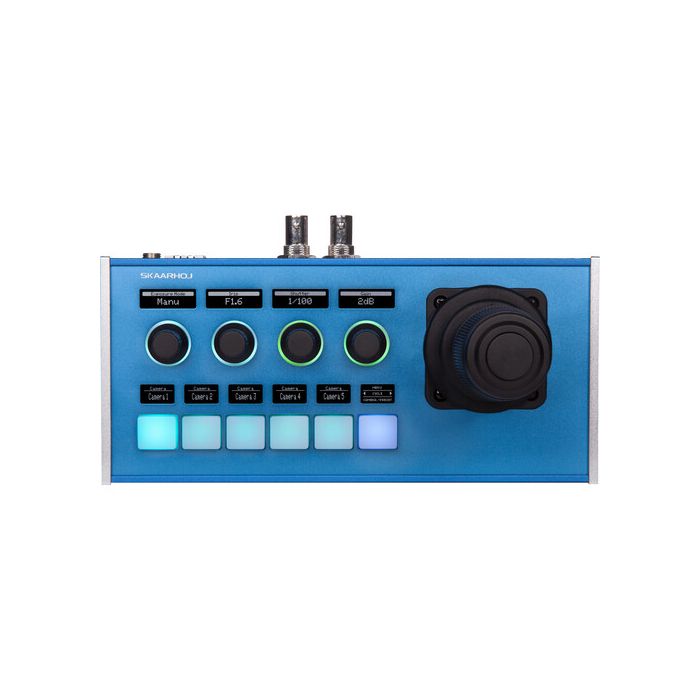

PTZ Fly - a compact controller featuring a full size three-axis joystick
Pan, tilt and rotate the handle to control your cameras. The superb OLED displays clearly show what camera settings you control and which preset you recall. With UniSketch OS, everything is possible. Customize it with a hall effect joystick or an SDI output for Blackmagic Micro Studio Camera control on a pan-tilt head.
Hall effect joystick
Upgrade to an industrial precision Hall effect joystick for increased ergonomic comfort and motion precision
SDI option
The SDI option adds a Blackmagic Arduino shield to the controller for reading and writing Camera Control Data
Compatibility
AIDA PTZ3 X20L
Lumens VC A50P
NewTek NDIHX-PTZ1
Pana AW-HEx
PTZOptics PT20X
Sony BRC-H900/BRC-X1000/SRG-300
VISCA Generic
Controls and Indicators
4x Backlit Encoder Knobs with OLED Displays
6x Programmable 4-Way Multifunction Keys with OLED Displays
Full-Size 3-Axis Hall Effect Joystick
SDI Input
SDI Output
Connectors
RJ45, Ethernet
Micro-USB, Programming
DC Power Input
Power Source
PoE IEEE802.3af, DC
Operating System
UniSketch
Dimensions
17.7 x 5.5 x 5.9" (45 x 14 x 15cm)
Weight
3.6 lbs (1.632kg)
