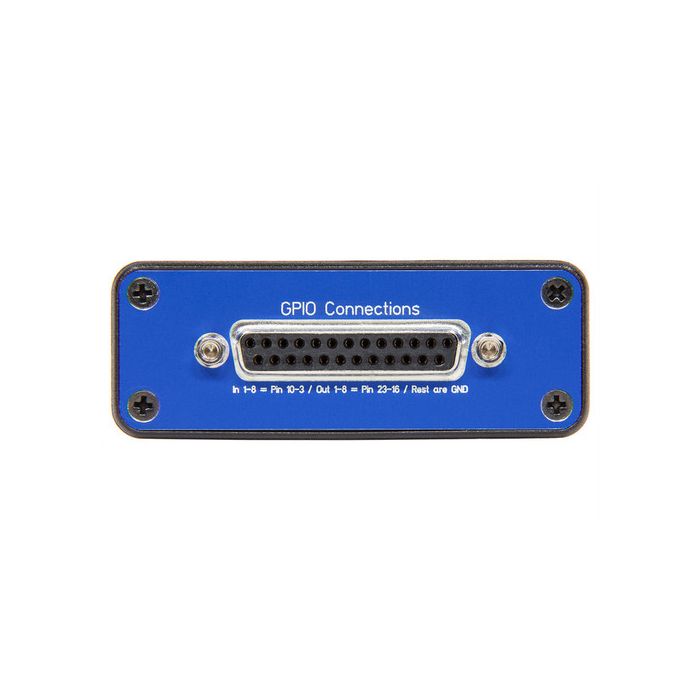

SKAARHOJ ETH-GPI Link
by Skaarhoj- 1x DB25 Connector Configuration
- 8 GPO
- 8 GPI
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- ETH-GPI Link (1x DB25 Connector Configuration)
- 12V Power Supply
- USB Programming Cable
- Networking Cable
- UniSketch OS
- Manuals and Software
GPIO Control Made Easy
Setting up an I/O device have never been this flexible. Connect and control anything from your tally lamps, trigger ATEM switcher routines, control a HyperDeck, change Scopes on a SmartScope Duo and route inputs/outputs on a VideoHub. Defining parameters - single or multiple - for inputs/outputs is extremely fast, thanks to the drop-down menu structure in UniSketch OS. Connect and control up to 8 devices at the same time!
UniSketch OS
Think of SKAARHOJ broadcast controllers like modern computers; they come in form factors like desktop, notebook, tablet and yet they run the same operating system enabling individual use through installation of apps from online repositories. Likewise all variants of SKAARHOJ controllers run the UniSketch OS connected to a growing "app store" of broadcast device support.
UniSketch OS is the core system running on all of our UniSketch compatible controllers. In short this means functionality is not limited to a specific controller - they can all do the same with the apparent limitation different hardware interface components provides.
Note: UniSketch V2.x needs the SKAARDUINO Due (our in-house developed microcontroller unit) platform to run.
UniSketch OS based controllers running the SKAARDUINO Due inside our products allows you to connect to a maximum number of 8 devices at the same time.
Broadcast I/O easy control or integration with existing systems
The GPIO controller let you control anything from your tally lamps, a foot switch over ethernet or integration with existing systems such as CCUs, video routing and other video switchers or video infrastructure units. There are almost endless possibilities.
The general-purpose I/O controllers offer 8/16 inputs and 8/16 outputs, all electrically separated with quality relays and optocouplers. GPO is implemented with relays shorting to GND. GPI implemented with optical isolators shorted to GND.
The DB25 connector configuration is similar to the Blackmagic Design GPI & Tally Interface. If you fancy a breakout board for the DB25 connector with Phoenix connectors then have a look at the Breakout Board.
Device Settings
The ETH-GPI Link runs UniSketch OS which allows you to configure the device for multiple hardware devices such as the ATEM Switcher, HyperDeck, SmartScopes, VideoHubs, AJA KUMO Routers, vMix and more. You can even configure the unit to control multiple hardware devices at the same time!
| Skaarhoj ETH-GPI Link Specifications |
|
Dimensions
|
| 5 x 3.14 x 1.14" (12.7 x 8 x 2.9cm) |
| Weight |
| 7.58 oz (215g) |
