SKAARHOJ ATEM GPI & Tally Interface Breakout Board
by Skaarhoj
Availability:
14-20 days delivery
SKU
ATEM-GPITally-BO-Board
- For Use with ATEM GPI & Tally Interface
- 8 x GPI Phoenix Inputs
- 8 x GPO Phoenix Outputs
- DC Plug for External Power
€312.00
€249.60
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- SKAARHOJ ATEM GPI and Tally Interface Breakout Board

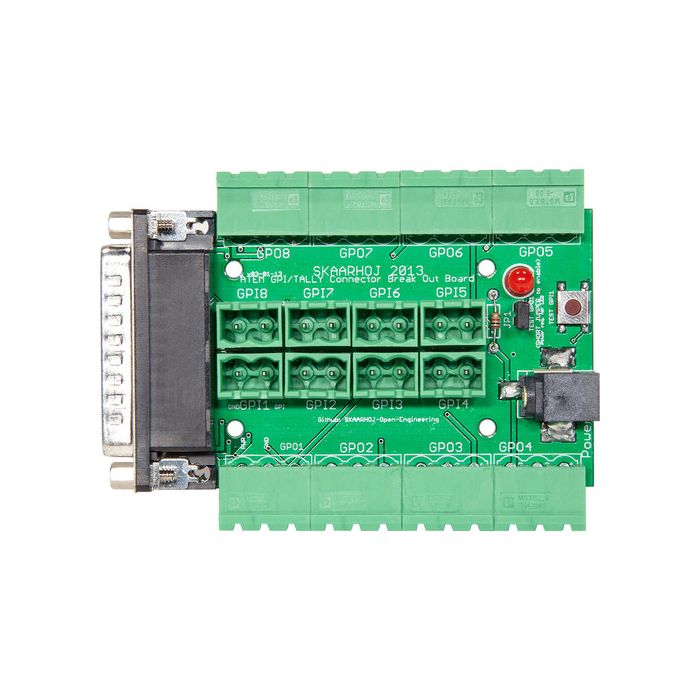

The ATEM GPI and Tally Interface Breakout Board from SKAARHOJ connects through the 25-pin D-Sub connector port to ATEM GPI and tally interfaces, ETH-GPI Link series, and Blackmagic Design GPI/tally boxes. The ATEM GPI and tally interface provides an easy interface for individual tally lamp control to your ATEM. It features eight sturdy onboard GPI Phoenix input connectors and eight GPO Phoenix output connectors, plus a DC plug for external power. The board features a confirmation LED which lights up when tally is on input 1, and a push button which lets you test the GPI of input 1.
SKAARHOJ ATEM-GPITALLY-BO-BOARD Specs | |
Compatibility
|
ATEM GPI and Tally Interface |
ETH-GPI Link Series | |
Blackmagic Design GPI/Tally Boxes | |
Connectors | 1 x 25-Pin D-Sub Male, I/O Interface |
8 x 2-Pin Male Phoenix, GPI Input | |
8 x 3-Pin Male Phoenix, GPO Output | |
1 x 5.5 mm DC Barrel, Power Input | |
Indicators | 1 x LED, Tally GPO Output 1 |
Control | 1 x Button, Test GPI Input 1 |
Packaging Info
|
|
Package Weight | 0.35 lb |
Box Dimensions (LxWxH) | 7.7 x 4.7 x 2.4" |
