Shimbol ZO600S
by ShimbolWireless Video Transmission up to 600'
1 x Transmitter & 1 x Receiver
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Shimbol ZO600S SDI & HDMI Wireless Video Transmission System
- Transmitter
- Receiver
- USB Type-C Cable

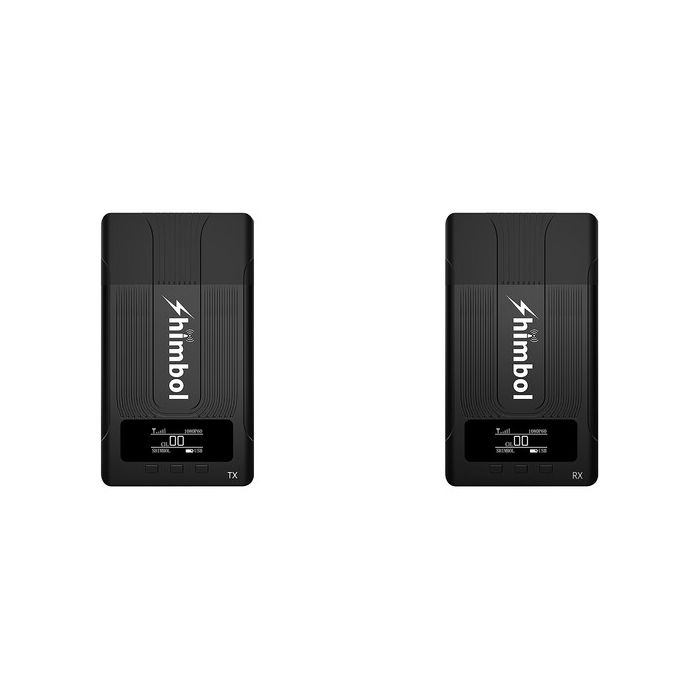

Add wireless monitoring to your video capture with the ZO600S SDI & HDMI Wireless Video Transmission System from Shimbol. Powered via USB Type-C input or Sony L-Series batteries, this compact transmitter and receiver set features pro-style SDI (BNC) and HDMI inputs and outputs. The Z0600S system transmits up to 1080p60 video with less than 1ms latency in a line-of-sight range up to 600'. The transmitter features one SDI input and one HDMI input and the receiver has one SDI output and one HDMI output for connecting to compatible monitors.
Up to 600' Range
Transmits high-quality video at rates up to 1080p60 wireless video in a line-of-sight range of 600'
SDI and HDMI Input/Output
The ZO600S transmitter incorporates one SDI (BNC) and one HDMI input for compatibility with a wide range of cameras, and the receiver features one SDI (BNC) and one HDMI output for linking to your monitors
Low Latency
Transmits video and audio with a low latency of approximately 80ms
Multipoint Transmitting
This system can transmit to multiple components including the receiver, smartphones, and tablets
Versatile Power Options
The transmitter and the receiver can each be powered using a USB Type-C source like a battery or power bank or by attaching an L-series battery to the integrated plate
Compact and Silent Design
These lightweight and compact units feature a fan-less design for quiet operation on set and interior antennas
OLED Screen
The transmitter and receiver both feature OLED screens that display the unit's status
| Video I/O |
Transmitter: 1x BNC (HD-SDI) Input
|
|
Transmitter: 1x HDMI (Unspecified Signal) Input
|
|
|
Receiver: 1x BNC (HD-SDI) Output
|
|
|
Receiver: 1x HDMI (Unspecified Signal) Output
|
|
| Show Less | |
| Embedded Audio |
Not Specified by Manufacturer
|
| Latency | 80 ms |
| Video Format | HDMI |
| 1080p: 60/50/30/25/24 | |
| 1080i: 60/50 | |
| 720p: 60/50 | |
| SDI | |
|
1080p: 60/59.94/30/29.97/25/24/23.98
|
|
| 1080i: 60/59.94/50 | |
|
1080PsF: 30/29.97/25/24/23.98
|
|
| 720p: 60/50 | |
| Show Less | |
| Battery Type |
Transmitter: 1x L-Series
|
| Receiver: 1x L-Series | |
| Power Consumption | Transmitter: 4.5 W |
| Receiver: 3 W | |
| Mounting |
Transmitter/Receiver: 1x 1/4"-20 Female (Bottom)
|
| Inputs/Outputs | |
| Antenna I/O | No |
| Video I/O |
Transmitter: 1x BNC (HD-SDI) Input
|
|
Transmitter: 1x HDMI (Unspecified Signal) Input
|
|
|
Receiver: 1x BNC (HD-SDI) Output
|
|
|
Receiver: 1x HDMI (Unspecified Signal) Output
|
|
| Embedded Audio |
Not Specified by Manufacturer
|
| Audio I/O | No |
| Power I/O |
Transmitter: 1x USB-C Input
|
|
Receiver: 1x USB-C Input
|
|
| Encryption | No, |
| Wireless | |
| Wireless Range |
600' / 182.9 m (Line-of-Sight)
|
| Frequency Range | 5 GHz |
| Latency | 80 ms |
| RF Power | 21 dBm |
| RF Sensitivity | -80 dBm |
| Wi-Fi | No |
| Bluetooth | No |
| Mobile App Compatible | No |
| Cellular Support | No |
| Format Support | |
| Video Format | HDMI |
| 1080p: 60/50/30/25/24 | |
| 1080i: 60/50 | |
| 720p: 60/50 | |
| SDI | |
|
1080p: 60/59.94/30/29.97/25/24/23.98
|
|
| 1080i: 60/59.94/50 | |
|
1080PsF: 30/29.97/25/24/23.98
|
|
| 720p: 60/50 | |
| Audio Format |
Not Specified by Manufacturer
|
| Timecode Support | No |
| Power | |
| Input Power | 5 VDC |
| Battery Type |
Transmitter: 1x L-Series
|
| Receiver: 1x L-Series | |
| Power Consumption | Transmitter: 4.5 W |
| Receiver: 3 W | |
| Mounting | |
| Mounting |
Transmitter/Receiver: 1x 1/4"-20 Female (Bottom)
|
| General | |
| Status Display |
Transmitter/Receiver: OLED
|
| Environmental Resistance | No |
| Dimensions |
Transmitter/Receiver: 4.4 x 2.5 x 0.8" / 113 x 63.5 x 20.5 mm
|
| Weight |
Transmitter: 5.64 oz / 160.00 g, Excluding Battery
|
|
Receiver: 5.64 oz / 160.00 g, Excluding Battery
|
|
| Packaging Info | |
| Package Weight | 1.15 lb |
| Box Dimensions (LxWxH) | 6.6 x 4.9 x 2.8" |
